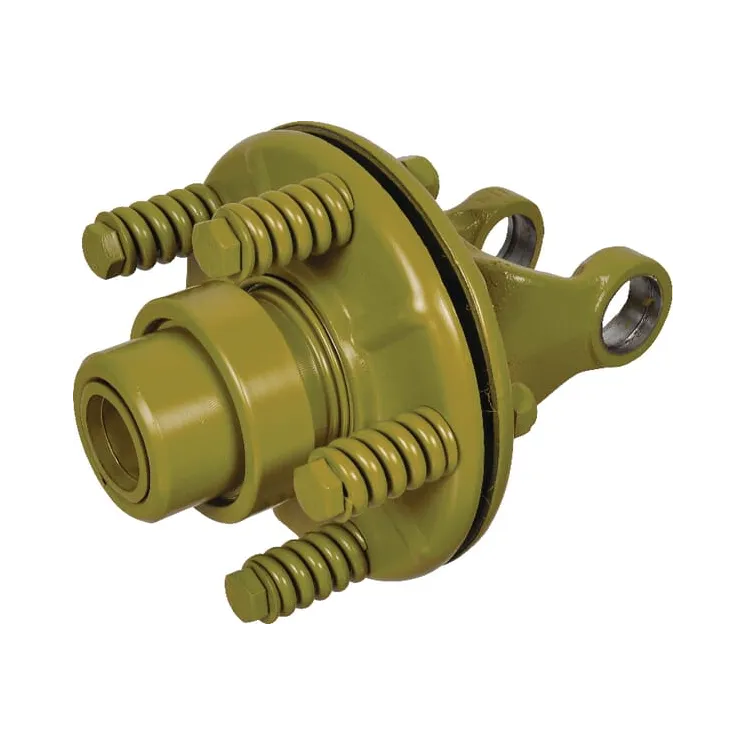

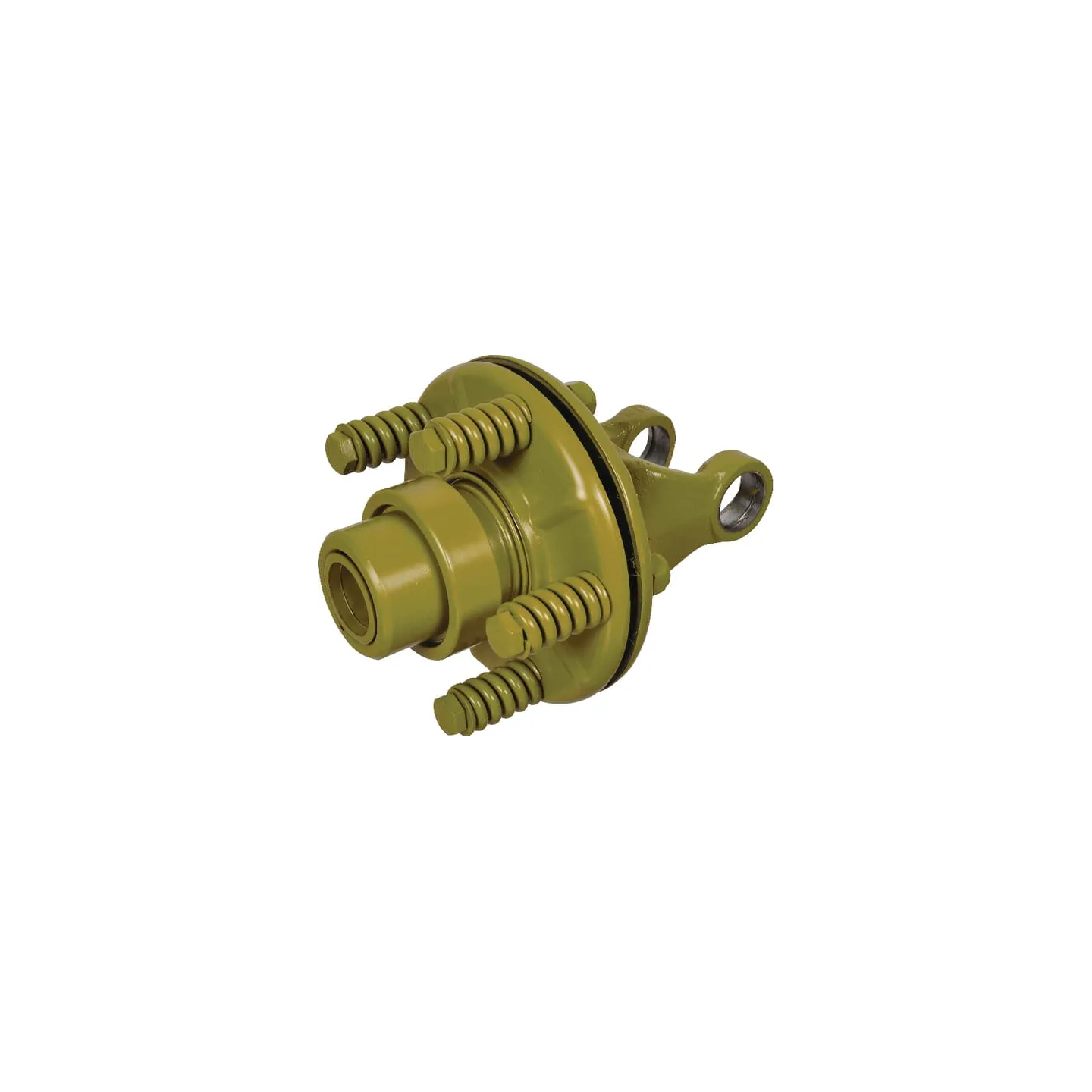

Friction clutch K94/1 561111940 Walterscheid
search
  • Friction clutch K94/1 561111940 Walterscheid

Friction clutch K94/1 561111940

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€392.98
Tax included
On Request
Friction clutch K94/1 561111940 Walterscheid
ON REQUEST

66701

Part number
561111940
EAN8432970162570
Unit
Each
Long description
Friction clutches with compression springs K94 / 1 cpl. 2100, 2200
Details
  • No interruption of power transmission
  • Absorb peak loads for a short time
Pros
  • Maintains torque
  • Smooth running
Product details
  • No power interruption
  • Catches peak loads for short periods of time
  • Independent rotation direction
  • Power transmission via skid plates
  • Adjustable
  • Suitable as starting torque
  • Observe maintenance instructions
Application range
  • Spreaders
  • Mowers
  • Light machinery in combination with tractors with direct-shift PTO shaft couplings
Properties
  • Independent of direction of rotation
  • Power transmission via friction discs
  • Adjustable
  • Suitable as a starting clutch
Technical info
Observe maintenance instructions
Benefits
  • Torque retention
  • Smooth transition
Clutch type code
K94/1
Connection locking type
Collar lock
Outside connection diameter
  • 1-1/8 Inch
  • 1.125 Inch
Connection number of splines/grooves
6
Shaft size code
W2100
Max. rotation speed
1000 r/min
Max static torque
400 N·m
Cross cap diameter
22 mm
Cross length
63 mm
Outside diameter
120 mm
Original number equivalent
1191346
Suitable for machine/vehicle brand
  • Matsui
  • Peters
  • Lely
  • EAN
    8432970162570
