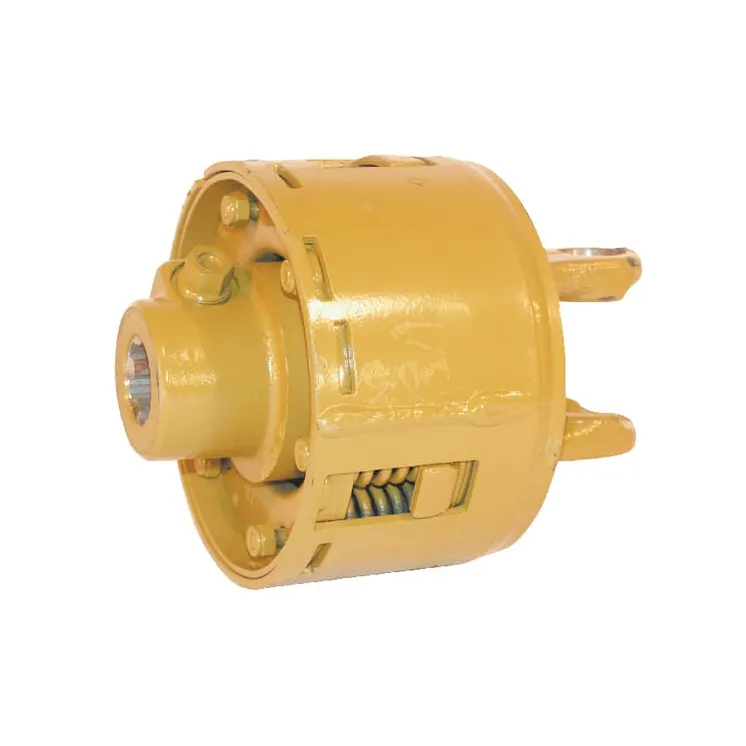

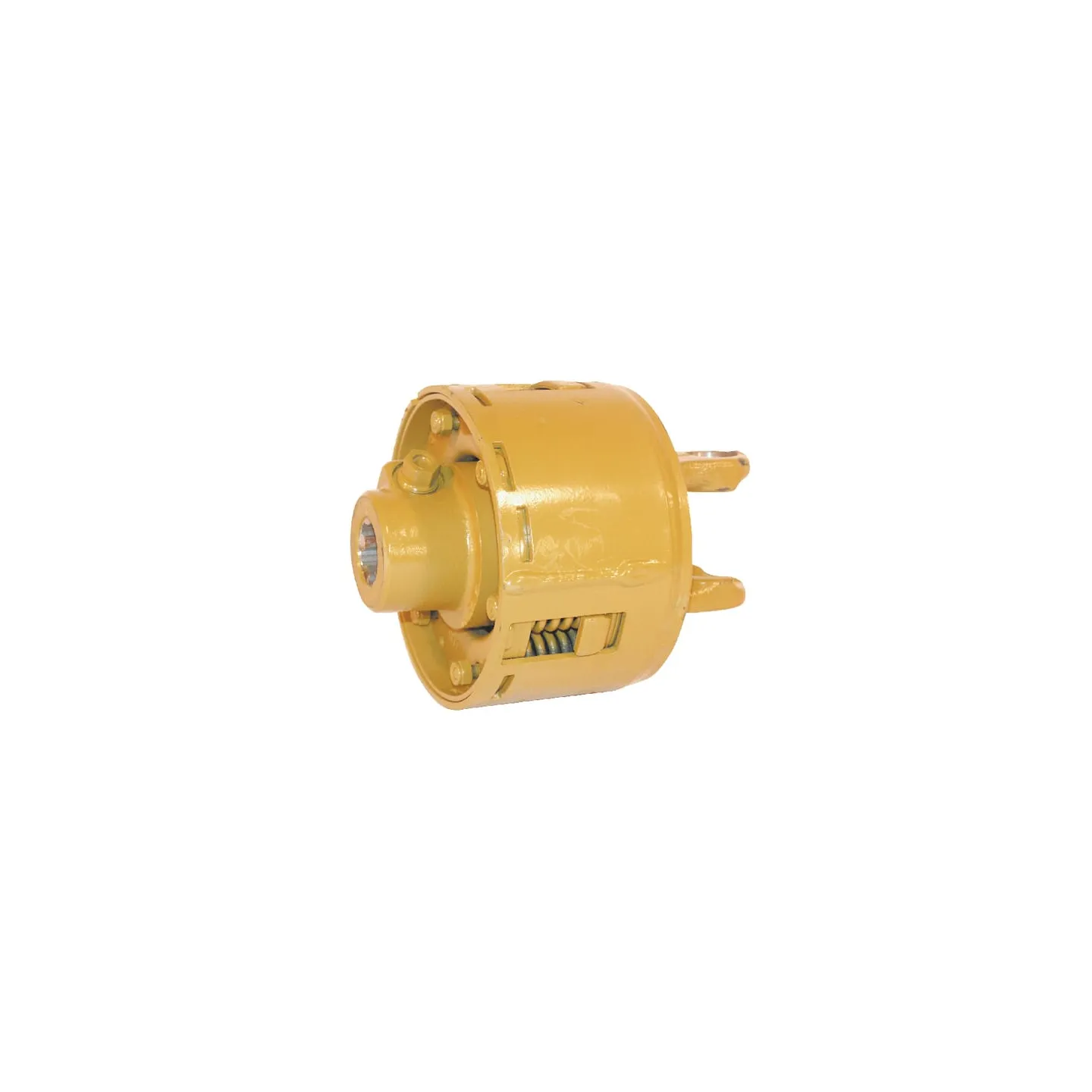

Friction clutch K96/4/W2500 5614151210 Walterscheid
search
  • Friction clutch K96/4/W2500 5614151210 Walterscheid

Friction clutch K96/4/W2500 5614151210

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1,119.29
Tax included
4-5 Working days
Friction clutch K96/4/W2500 5614151210 Walterscheid
IN WAREHOUSE

66704

Part number
5614151210
EAN8435194181907
Unit
Each
Long description
Friction clutches with spring pack K96 / 4 cpl. 2400, 2500
Details
  • No interruption of power transmission
  • Absorb peak loads for a short time
  • Max. torque adjustable via circlip
Application range
  • Mowers
  • Rotary harrows
  • Pick-up
Properties
  • Independent of direction of rotation
  • Power transmission via friction discs
  • Adjustable
  • Suitable as a starting clutch
Technical info
Observe maintenance instructions
Benefits
  • Torque retention
  • Smooth transition
  • Wide range of applications
Clutch type code
K96/4
Connection locking type
Clamp cone
Outside connection diameter
  • 1-3/4 Inch
  • 1.75 Inch
Connection number of splines/grooves
6
Shaft size code
W2500
Max. rotation speed
1000 r/min
Max static torque
2100 N·m
Cross cap diameter
36 mm
Cross length
100 mm
DOutside diameter
170 mm
LClutch part length
90 mm
Original number equivalent
1101743
Suitable for machine/vehicle brand
Glaenzer
  • Brand
    Walterscheid
  • Reference
    5614151210
  • In stock
    4 Items
  • Condition
    New
  • EAN
    8435194181907
