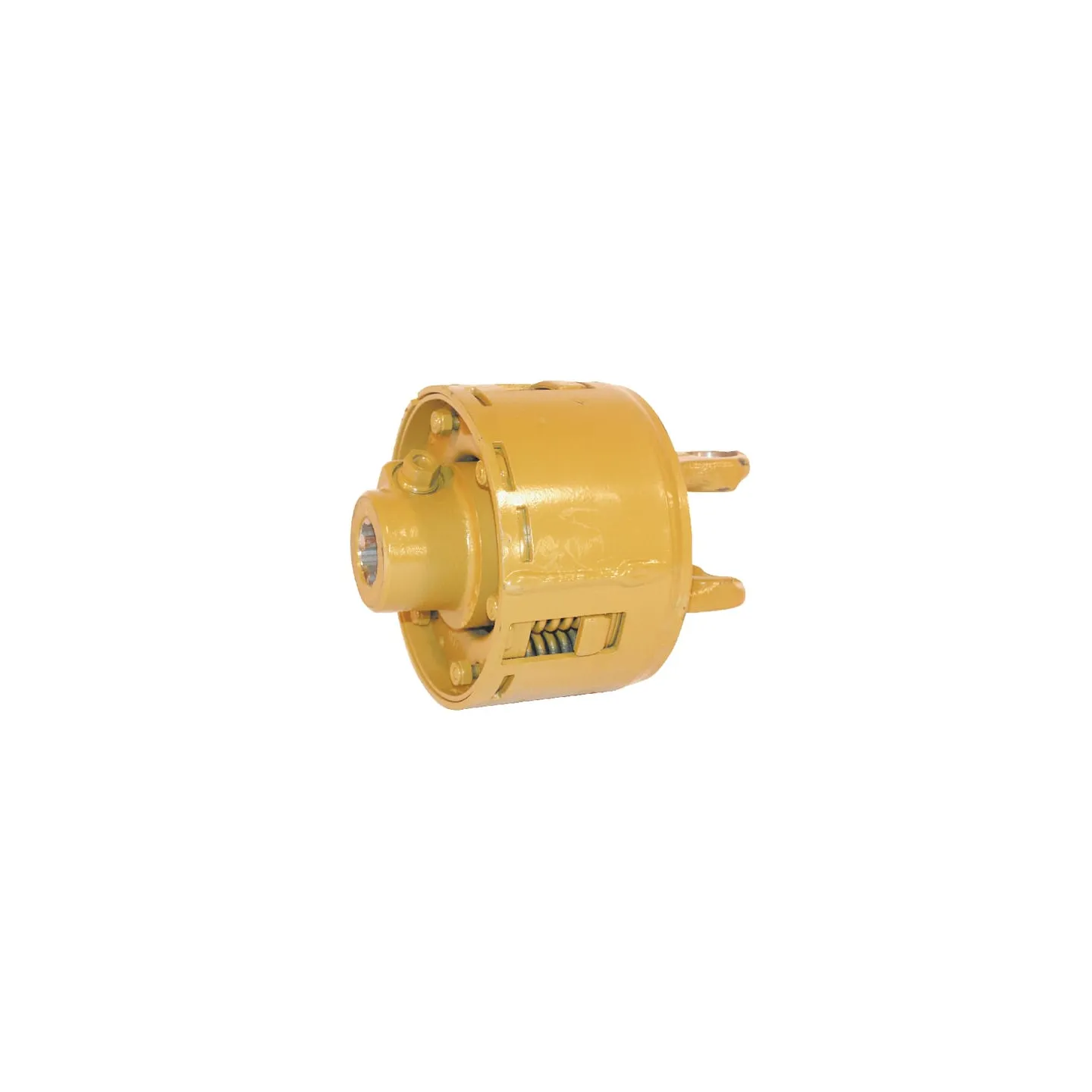

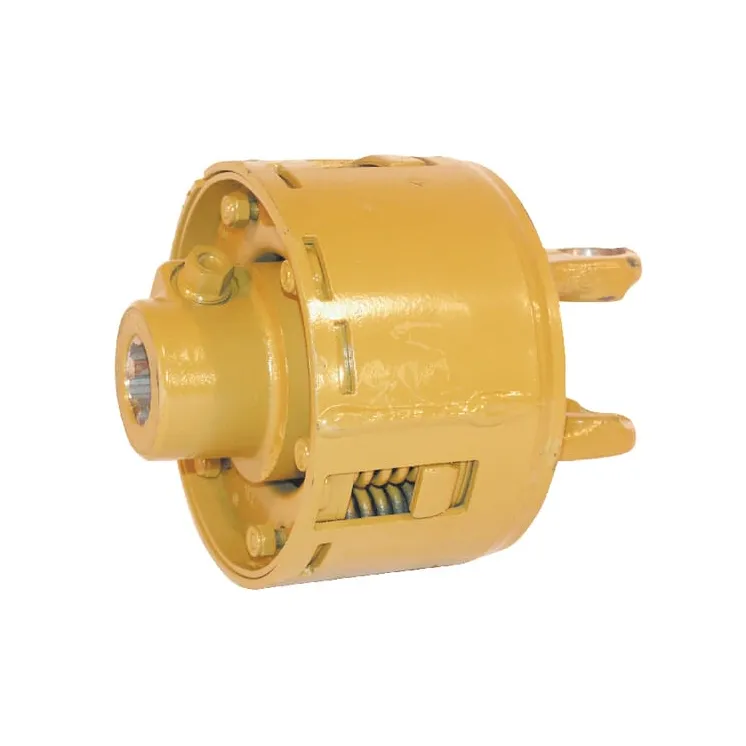

Friction Clutch W2400-K96/4 5610051120 Walterscheid
search
  • Friction Clutch W2400-K96/4 5610051120 Walterscheid

Friction Clutch W2400-K96/4 5610051120

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€912.99
Tax included
On Request
Friction Clutch W2400-K96/4 5610051120 Walterscheid
ON REQUEST

66714

Part number
5610051120
EAN8435194020046
Unit
Each
Long description
Friction clutches with spring pack K96 / 4 cpl. 2400, 2500
Details
  • No interruption of power transmission
  • Absorb peak loads for a short time
  • Max. torque adjustable via circlip
Application range
  • Mowers
  • Rotary harrows
  • Pick-up
Properties
  • Independent of direction of rotation
  • Power transmission via friction discs
  • Adjustable
  • Suitable as a starting clutch
Technical info
Observe maintenance instructions
Benefits
  • Torque retention
  • Smooth transition
  • Wide range of applications
Clutch type code
K96/4
Connection locking type
Collar lock
Outside connection diameter
  • 1-3/8 Inch
  • 1.375 Inch
Connection number of splines/grooves
6
Shaft size code
W2400
Max. rotation speed
1000 r/min
Max static torque
1200 N·m
Cross cap diameter
32 mm
Cross length
86 mm
DOutside diameter
170 mm
LClutch part length
90 mm
Original number equivalent
1181659
Suitable for machine/vehicle brand
Freudendahl
  • EAN
    8435194020046
