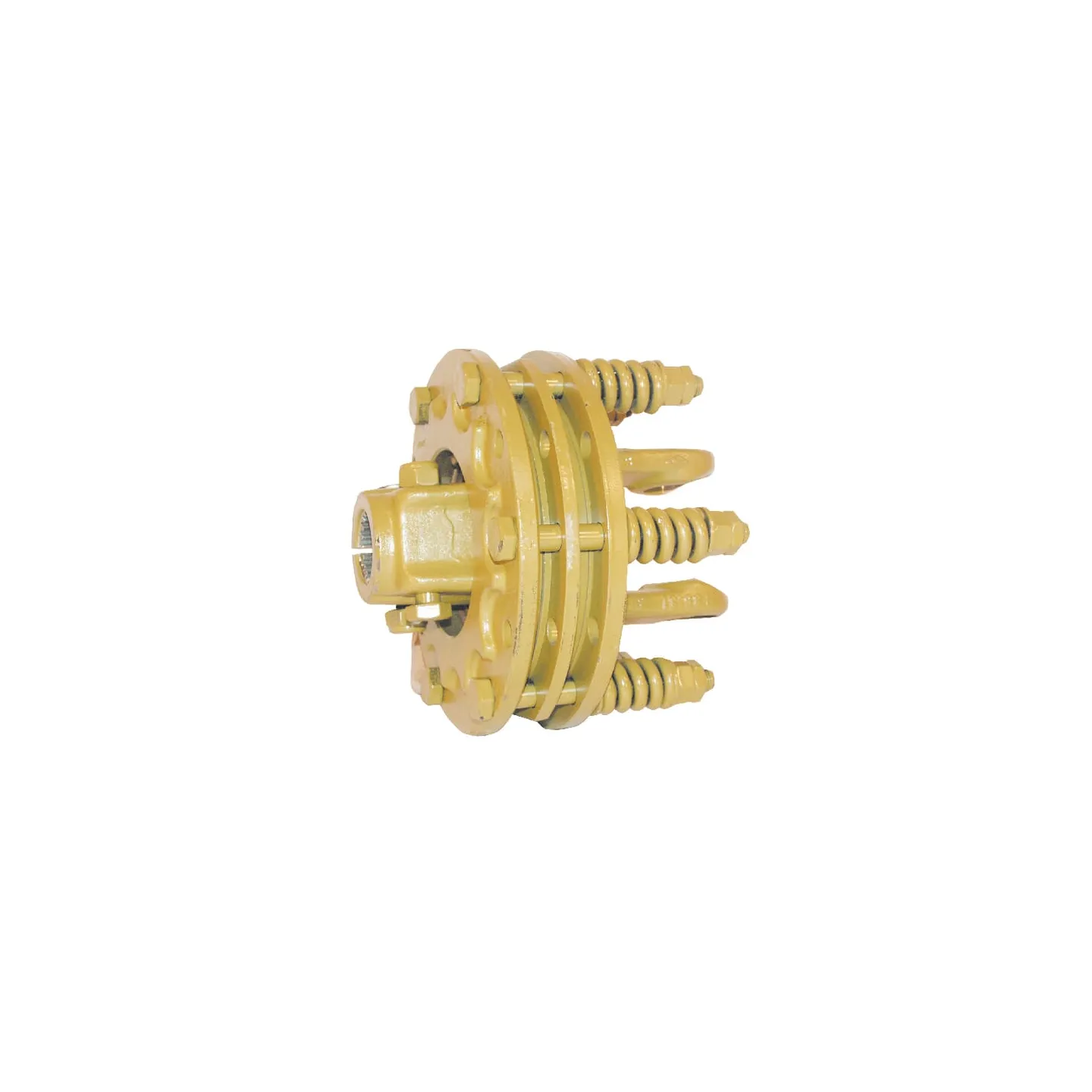

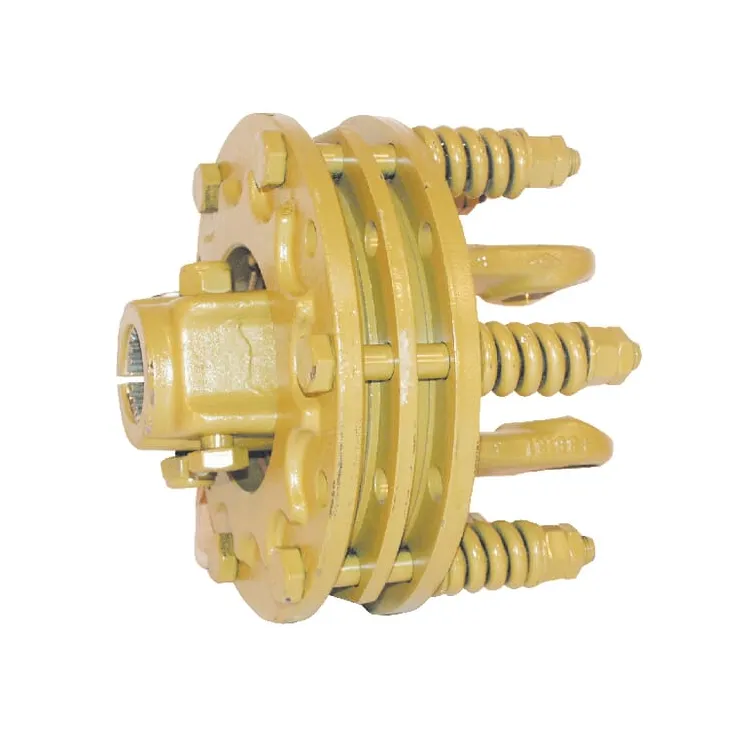

Friction Clutch - K90/4 5610709 Walterscheid 5610709140
search
  • Friction Clutch - K90/4 5610709 Walterscheid 5610709140

Friction Clutch - K90/4 5610709 5610709140

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1,565.90
Tax included
On Request
Friction Clutch - K90/4 5610709 Walterscheid 5610709140
ON REQUEST

66786

Part number
5610709
EAN8432970172906
Unit
Each
Long description
Friction plate clutches with compression springs K90 / 4 cpl. 2300, 2400, 2500, 2600
Details
  • No interruption of power transmission
  • Absorb peak loads for a short time
Pros
  • Maintains torque
  • Smooth running
Product details
  • No power interruption
  • Catches peak loads for short periods of time
  • Independent rotation direction
  • Power transmission via skid plates
  • Adjustable
  • Suitable as starting torque
  • Observe maintenance instructions
Application range
  • Mowers
  • Rotary harrows
  • Pick-up
Properties
  • Independent of direction of rotation
  • Power transmission via friction discs
  • Adjustable
  • Suitable as a starting clutch
Technical info
Observe maintenance instructions
Benefits
  • Torque retention
  • Smooth transition
Clutch type code
K90/4
Connection locking type
Clamp bolt (interfering)
Outside connection diameter
  • 1-3/4 Inch
  • 1.75 Inch
Connection number of splines/grooves
20
Shaft size code
  • W2600
  • P600
Max. rotation speed
1000 r/min
Max static torque
1400 N·m
Cross cap diameter
42 mm
Cross length
120 mm
DØOutside diameter
190 mm
LClutch part length
58 mm
Original number equivalent
1333297
Suitable for machine/vehicle brand
n/a
  • CODE
    5610709140
  • EAN
    8432970172906
