Friction clutch K90/4 5611009120 Walterscheid
search
  • Friction clutch K90/4 5611009120 Walterscheid

Friction clutch K90/4 5611009120

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1,077.30
Tax included
On Request

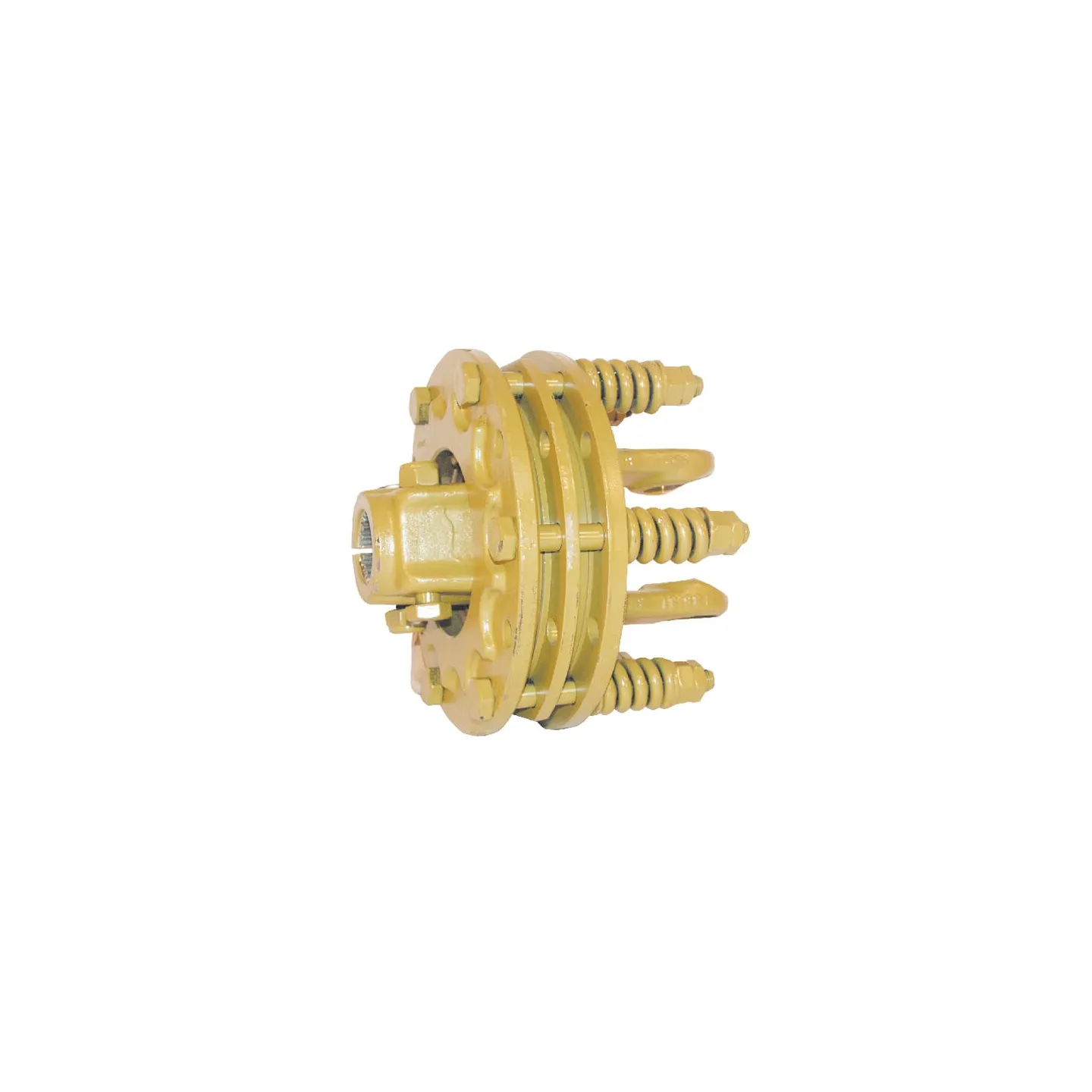

Friction clutch K90/4 5611009120 Walterscheid
ON REQUEST

66791

Part number
5611009120
EAN8432970173668
Unit
Each
Long description
Friction plate clutches with compression springs K90 / 4 cpl. 2300, 2400, 2500, 2600
Details
  • No interruption of power transmission
  • Absorb peak loads for a short time
Pros
  • Maintains torque
  • Smooth running
Product details
  • No power interruption
  • Catches peak loads for short periods of time
  • Independent rotation direction
  • Power transmission via skid plates
  • Adjustable
  • Suitable as starting torque
  • Observe maintenance instructions
Application range
  • Mowers
  • Rotary harrows
  • Pick-up
Properties
  • Independent of direction of rotation
  • Power transmission via friction discs
  • Adjustable
  • Suitable as a starting clutch
Technical info
Observe maintenance instructions
Benefits
  • Torque retention
  • Smooth transition
Clutch type code
K90/4
Connection locking type
Clamp bolt (interfering)
Outside connection diameter
  • 1-3/4 Inch
  • 1.75 Inch
Connection number of splines/grooves
6
Shaft size code
  • W2400
  • P400
Max. rotation speed
1000 r/min
Max static torque
1200 N·m
Cross cap diameter
32 mm
Cross length
86 mm
DØOutside diameter
190 mm
LClutch part length
65 mm
Original number equivalent
1341883
Suitable for machine/vehicle brand
Walterscheid
  • EAN
    8432970173668
