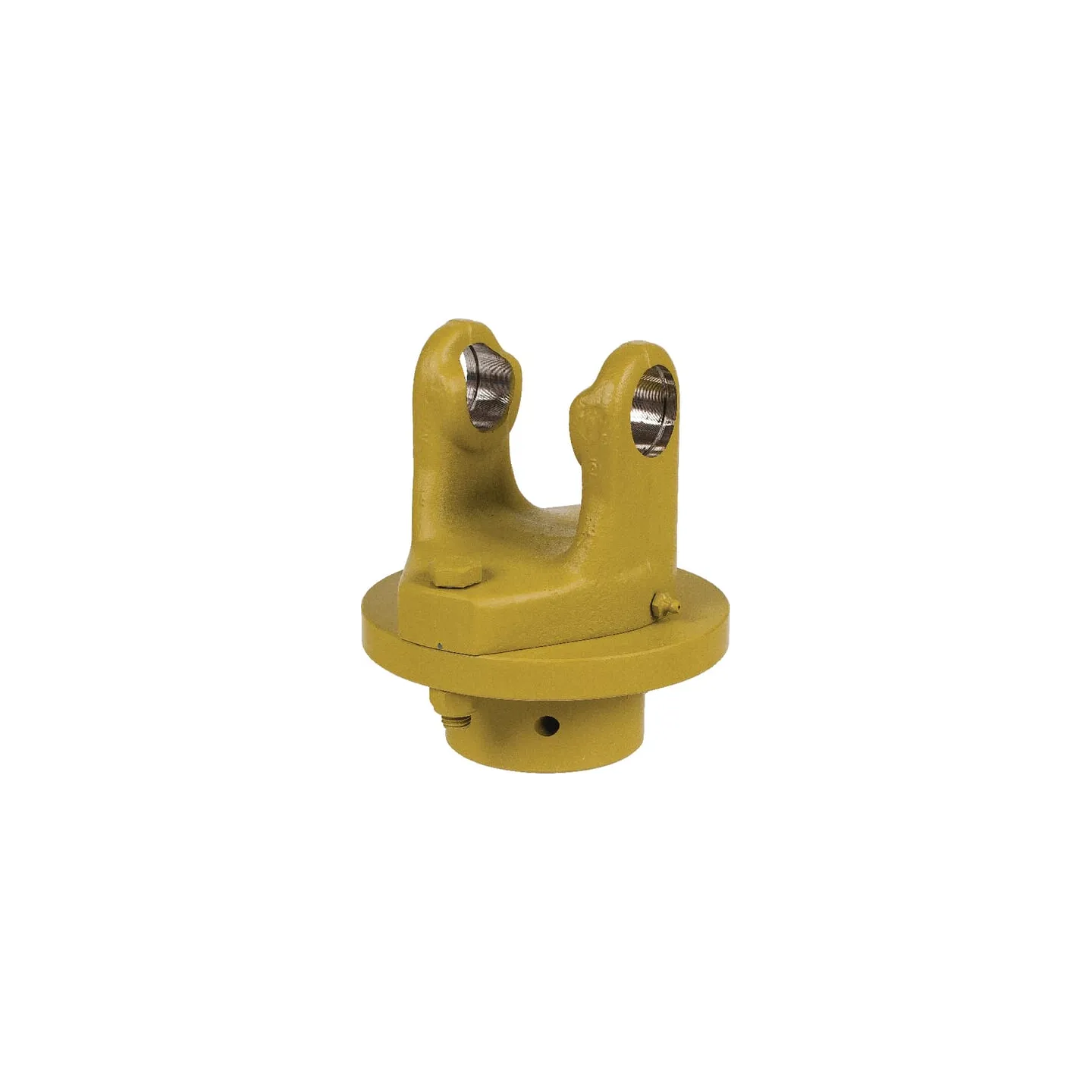

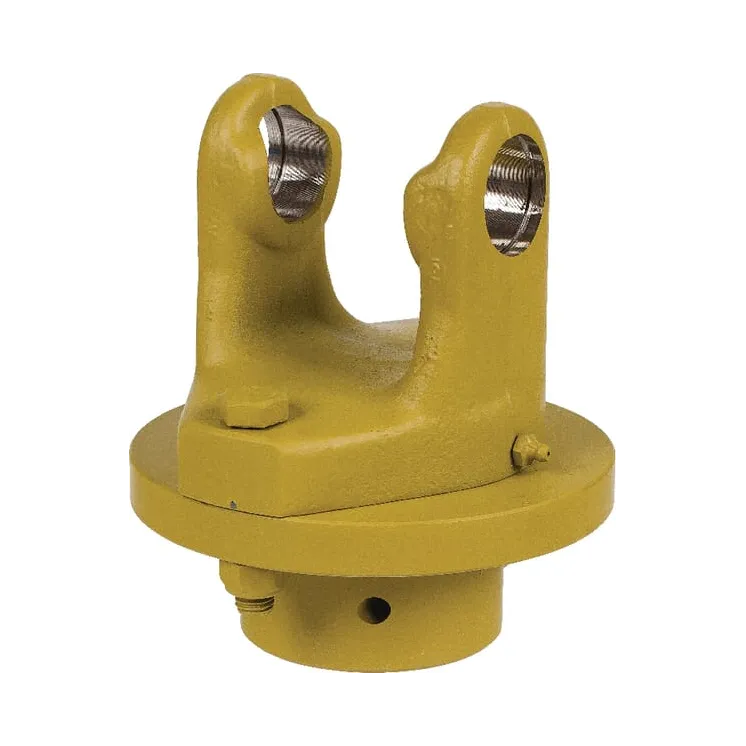

Shearbolt clutch KB61/30 5710119 Walterscheid
ON REQUEST

66878

Part number
5710119
EAN8432970173095
Unit
Each
Long description
Shear bolt clutches complete for manure pumps, shredders and light balers, among others.
Details
  • Complete interruption of the drive
  • Can be restored by replacing a shear bolt
Pros
  • Prevents against subsequent damage
  • Easy to repair
Product details
  • Protects against blockages and overload
  • Power transmission via shear bolt
  • Drive fully disconnected
  • Repairable by replacing a shear bolt
  • Independent rotation direction
Application range
  • Fertiliser pump
  • Shredders
  • Light balers
Properties
  • Independent of the direction of rotation
  • Power transmission via shear bolt
Technical info
Protects against blockages and overload
Benefits
  • Prevents consequent damage
  • Easily restorable
Max dynamic torque
7650 N·m
Share bolts thread diameter
M14
Share bolts thread length
70
RShare bolts circle radius
75
Shear bolts quality
8.8
Clutch type code
KB61/30
Max. rotation speed
1000 r/min
Shaft size code
  • W2600
  • P600
DOutside diameter
160 mm
Connection outside diameter by tractor side
1-3/4 Inch
Connection number of splines/grooves by tractor side
6
Locking type by machine side
Clamp cone
Original number equivalent
1335172
  • EAN
    8432970173095
