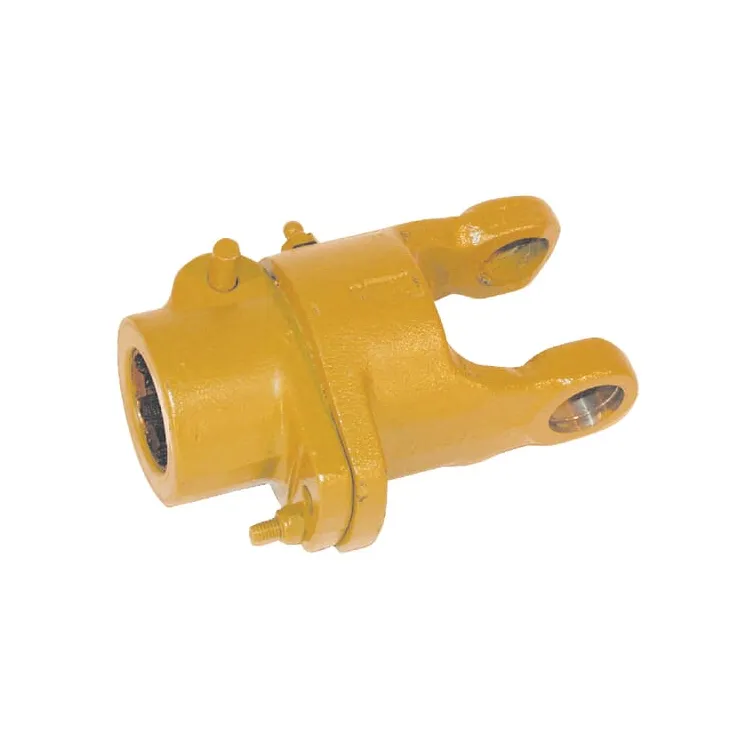

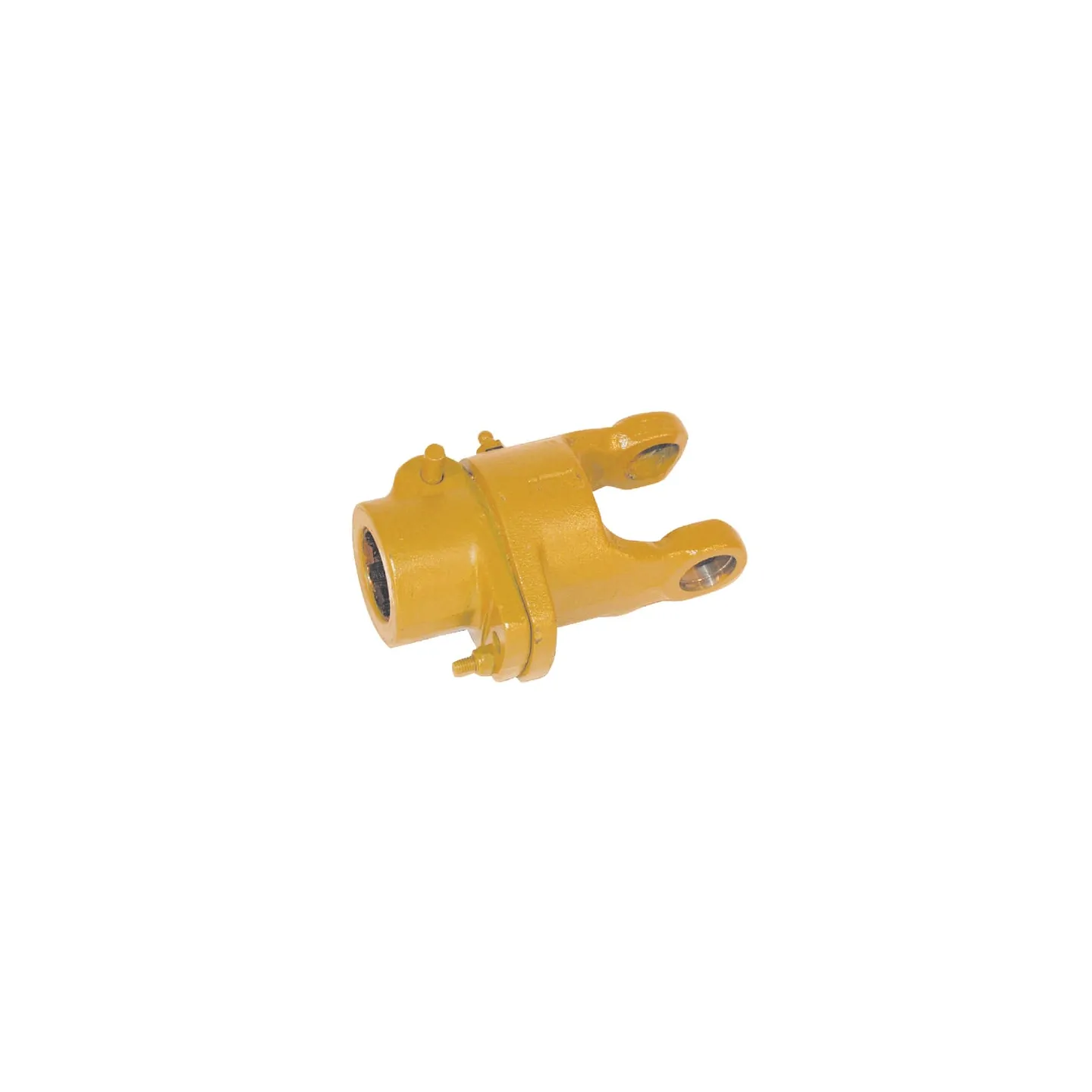

Shearbolt clutch KB61/1 5711412 Walterscheid
search
  • Shearbolt clutch KB61/1 5711412 Walterscheid

Shearbolt clutch KB61/1 5711412

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€563.47
Tax included
On Request
Shearbolt clutch KB61/1 5711412 Walterscheid
ON REQUEST

66884

Part number
5711412
EAN8432970178786
Unit
Each
Long description
Shear bolt clutches complete for manure pumps, shredders and light balers, among others.
Details
  • Complete interruption of the drive
  • Can be restored by replacing a shear bolt
Pros
  • Prevents against subsequent damage
  • Easy to repair
Product details
  • Protects against blockages and overload
  • Power transmission via shear bolt
  • Drive fully disconnected
  • Repairable by replacing a shear bolt
  • Independent rotation direction
Application range
  • Fertiliser pump
  • Shredders
  • Light balers
Properties
  • Independent of the direction of rotation
  • Power transmission via shear bolt
Technical info
Protects against blockages and overload
Benefits
  • Prevents consequent damage
  • Easily restorable
Max dynamic torque
1400 N·m
Share bolts thread diameter
M8
Share bolts thread length
40
RShare bolts circle radius
42
Shear bolts quality
8.8
Clutch type code
K61/1
Max. rotation speed
1000 r/min
Shaft size code
W2200
DOutside diameter
106 mm
Connection outside diameter by tractor side
1-1/8 Inch
Connection number of splines/grooves by tractor side
6
Locking type by machine side
Push pin
Original number equivalent
1378999
  • EAN
    8432970178786
