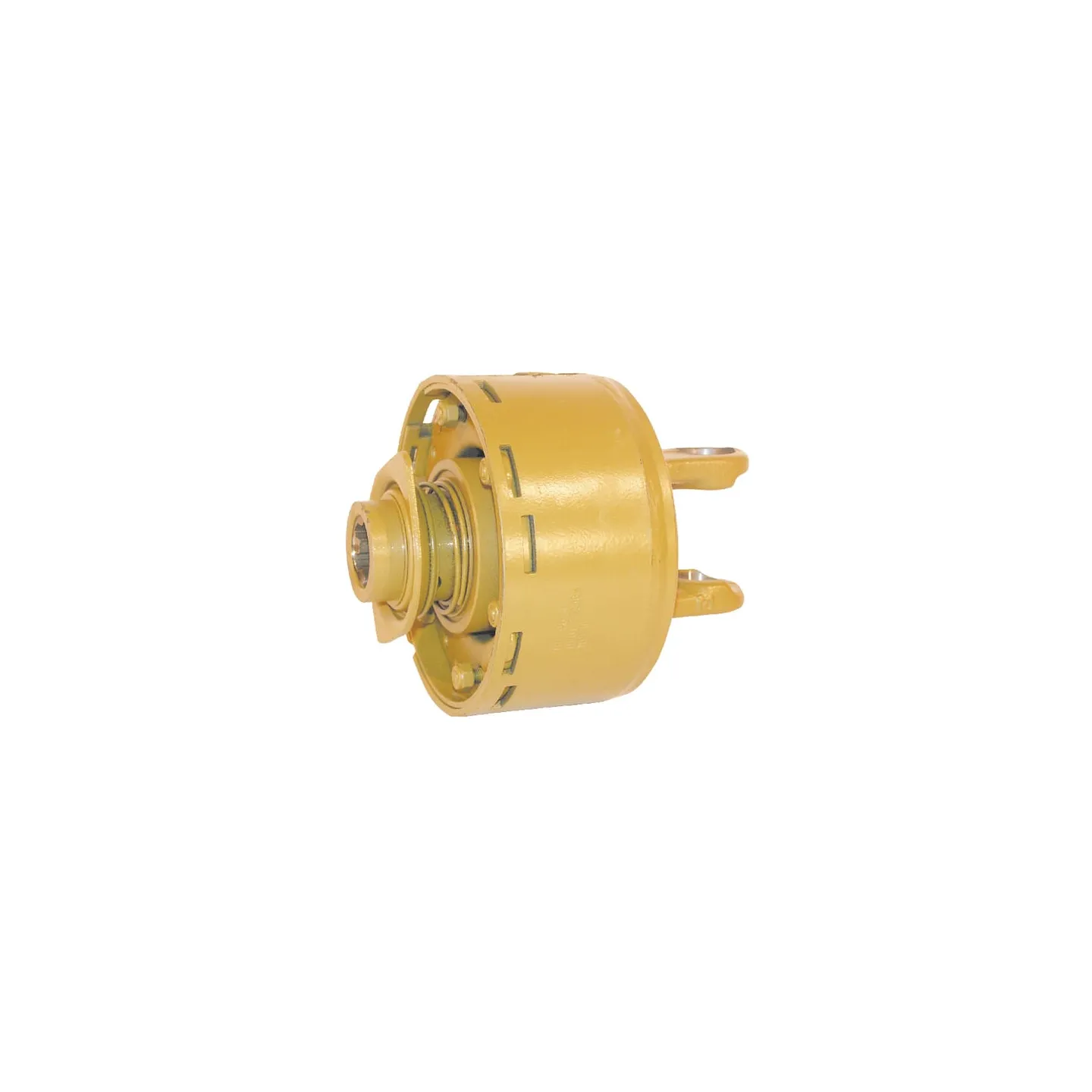

Friction clutch W2300-FK96R 105 daNm 5810750105 Walterscheid
search
  • Friction clutch W2300-FK96R 105 daNm 5810750105 Walterscheid

Friction clutch W2300-FK96R 105 daNm 5810750105

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1,193.18
Tax included
4-5 Working days
Friction clutch W2300-FK96R 105 daNm 5810750105 Walterscheid
IN WAREHOUSE

66886

Part number
5810750105
EAN8432970155855
Unit
Each
Long description
Friction and overrunning clutches with spring pack FK96 cpl. 2300, 2400
Details
  • Combination of freewheel and friction disc clutch
  • Absorbs peak loads for short periods
  • Protection for subsequent mass
  • Max. torque adjustable via circlip
Application range
  • Big balers
  • Round balers
  • Mowers
Properties
  • Depending on the direction of rotation
  • Power transmission via friction discs
  • No noise during friction
  • Noise when freewheeling
  • Suitable as a starting clutch
Technical info
Observe maintenance instructions
Benefits
  • Torque retention
  • Smooth transition
  • Easier coupling when PTO shaft is braked
  • Wide range of applications
Clutch type code
FK96R
Connection locking type
Collar lock
Outside connection diameter
  • 1-3/8 Inch
  • 1.375 Inch
Connection number of splines/grooves
6
Shaft size code
W2300
Max. rotation speed
1000 r/min
Max static torque
1050 N·m
Cross cap diameter
27 mm
Cross length
84 mm
DOutside diameter
170 mm
LClutch part length
75 mm
Original number equivalent
1172703
Suitable for machine/vehicle brand
Matsui
  • Brand
    Walterscheid
  • Reference
    5810750105
  • In stock
    5 Items
  • Condition
    New
  • EAN
    8432970155855
