Shearbolt clutch KB61/20 5717918 Walterscheid VTE7313
search
  • Shearbolt clutch KB61/20 5717918 Walterscheid VTE7313

Shearbolt clutch KB61/20 5717918 VTE7313

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€489.51
Tax included
4-5 Working days

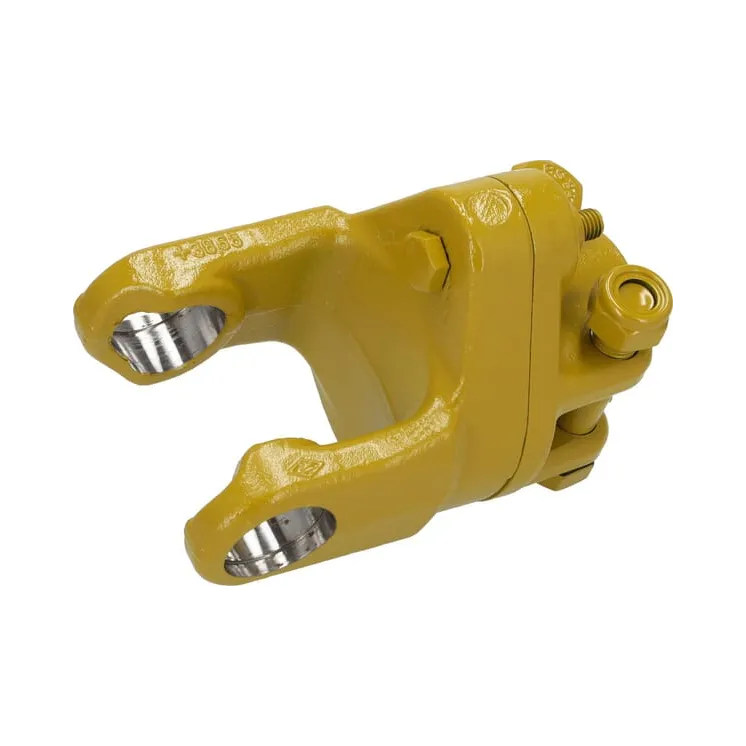

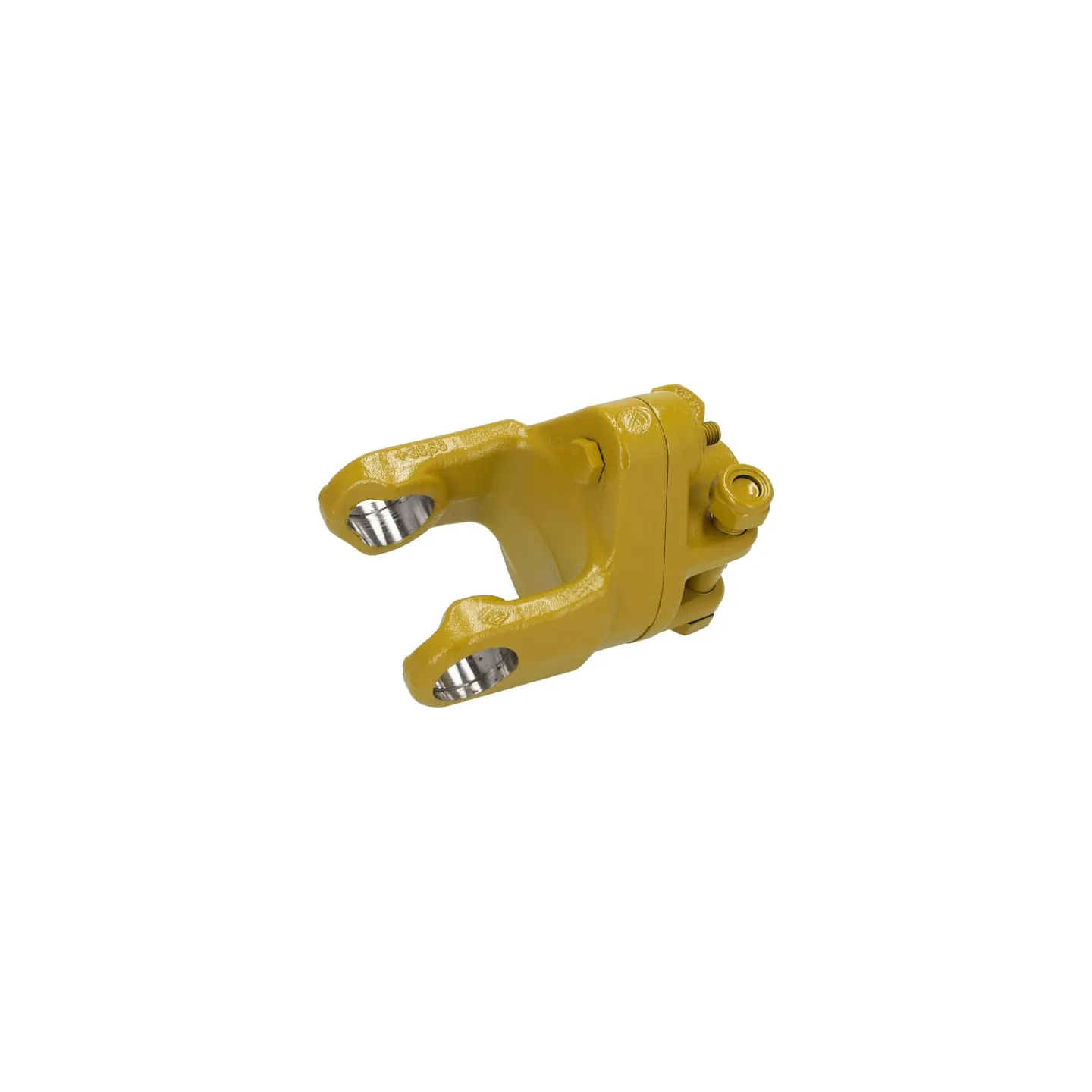

Shearbolt clutch KB61/20 5717918 Walterscheid VTE7313
IN WAREHOUSE

66888

Part number
5717918
EAN8435194028851
Unit
Each
Long description
Shear bolt clutches complete for manure pumps, shredders and light balers, among others.
Details
  • Complete interruption of the drive
  • Can be restored by replacing a shear bolt
Pros
  • Prevents against subsequent damage
  • Easy to repair
Product details
  • Protects against blockages and overload
  • Power transmission via shear bolt
  • Drive fully disconnected
  • Repairable by replacing a shear bolt
  • Independent rotation direction
Application range
  • Fertiliser pump
  • Shredders
  • Light balers
Properties
  • Independent of the direction of rotation
  • Power transmission via shear bolt
Technical info
Protects against blockages and overload
Benefits
  • Prevents consequent damage
  • Easily restorable
Max dynamic torque
2920 N·m
Share bolts thread diameter
M10
Share bolts thread length
60
RShare bolts circle radius
56
Shear bolts quality
8.8
Clutch type code
KB61/20
Max. rotation speed
1000 r/min
Shaft size code
  • W2500
  • P500
DOutside diameter
156 mm
AConnection outside diameter by tractor side
1-3/4 Inch
Connection number of splines/grooves by tractor side
20
Locking type by machine side
Clamp bolt (non interfering)
Original number equivalent
1382986
  • Brand
    Walterscheid
  • Reference
    5717918
  • In stock
    5 Items
  • Condition
    New
  • CODE
    VTE7313
  • EAN
    8435194028851
