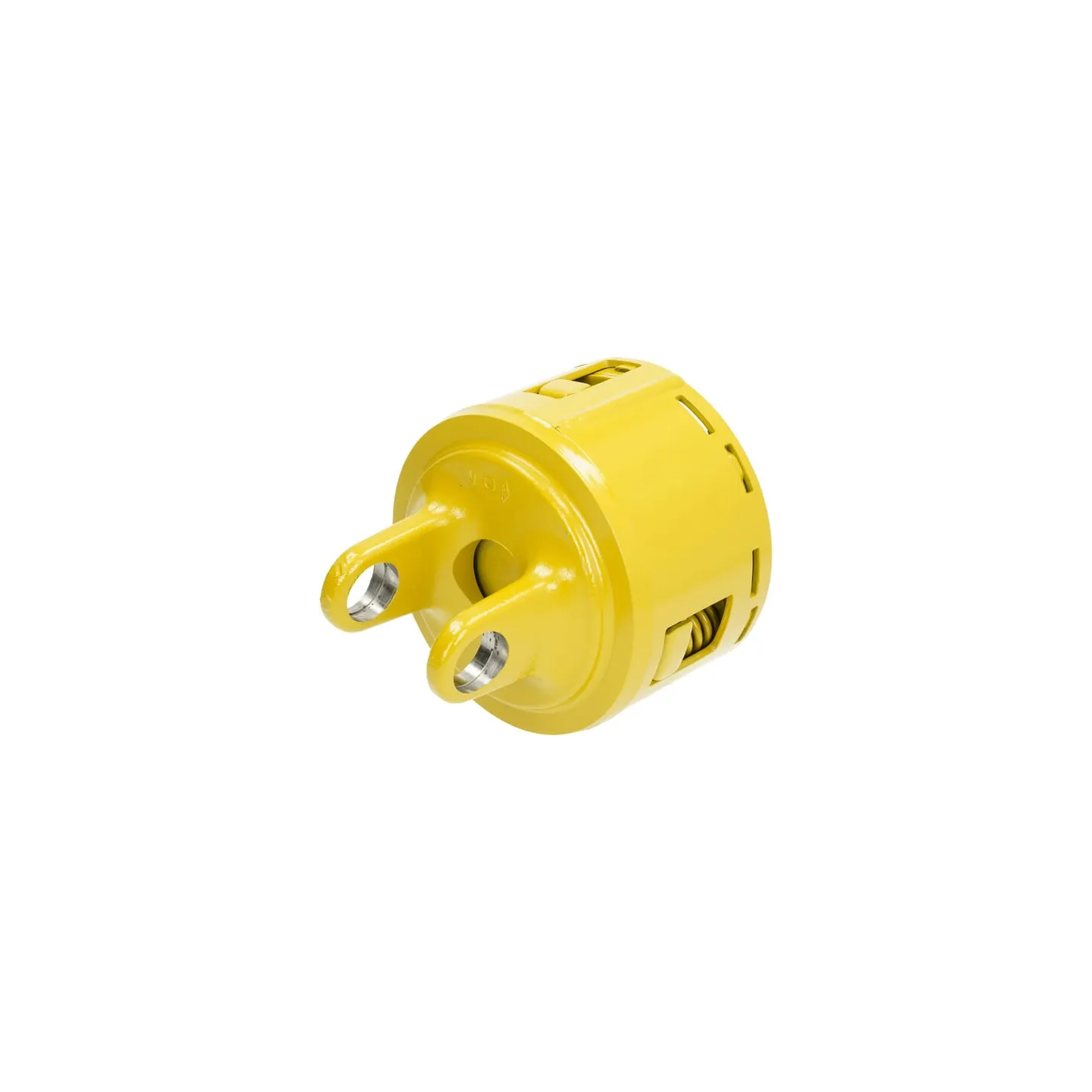

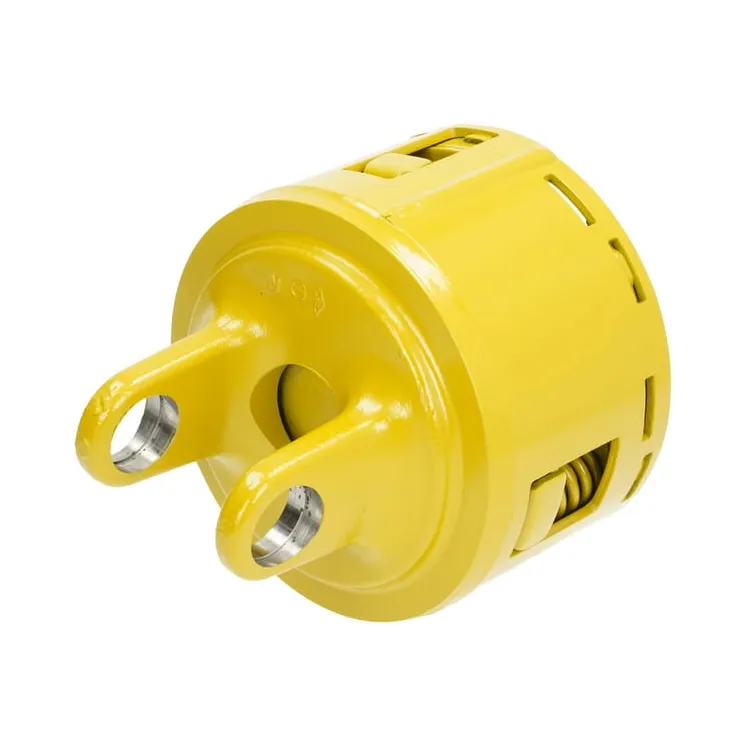

Friction clutch FK96/4R 180daNm W2400 5810951180 Walterscheid 1104308
search
  • Friction clutch FK96/4R 180daNm W2400 5810951180 Walterscheid 1104308

Friction clutch FK96/4R 180daNm W2400 5810951180 1104308

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1,290.56
Tax included
On Request
Friction clutch FK96/4R 180daNm W2400 5810951180 Walterscheid 1104308
ON REQUEST

66900

Part number
5810951180
EAN
Unit
Each
Long description
Friction and overrunning clutches with spring pack FK96 / 4 cpl. 2400, 2500
Details
  • Combination of freewheel and friction disc clutch
  • Absorbs peak loads for short periods
  • Protection for subsequent mass
  • Max. torque adjustable via circlip
Application range
  • Big balers
  • Round balers
  • Mowers
Properties
  • Depending on the direction of rotation
  • Power transmission via friction discs
  • No noise during friction
  • Noise when freewheeling
  • Suitable as a starting clutch
Technical info
Observe maintenance instructions
Benefits
  • Torque retention
  • Smooth transition
  • Easier coupling when PTO shaft is braked
  • Wide range of applications
Clutch type code
FK96/4R
Connection locking type
Collar lock
Outside connection diameter
  • 1-3/8 Inch
  • 1.375 Inch
Connection number of splines/grooves
6
Shaft size code
  • W2400
  • P400
Max. rotation speed
1000 r/min
Max static torque
1500 N·m
Max dynamic torque
1800 N·m
Cross cap diameter
32 mm
Cross length
86 mm
DOutside diameter
170 mm
LClutch part length
90 mm
Original number equivalent
1197256
Suitable for machine/vehicle brand
  • Agco
  • Fella
  • CODE
    1104308
