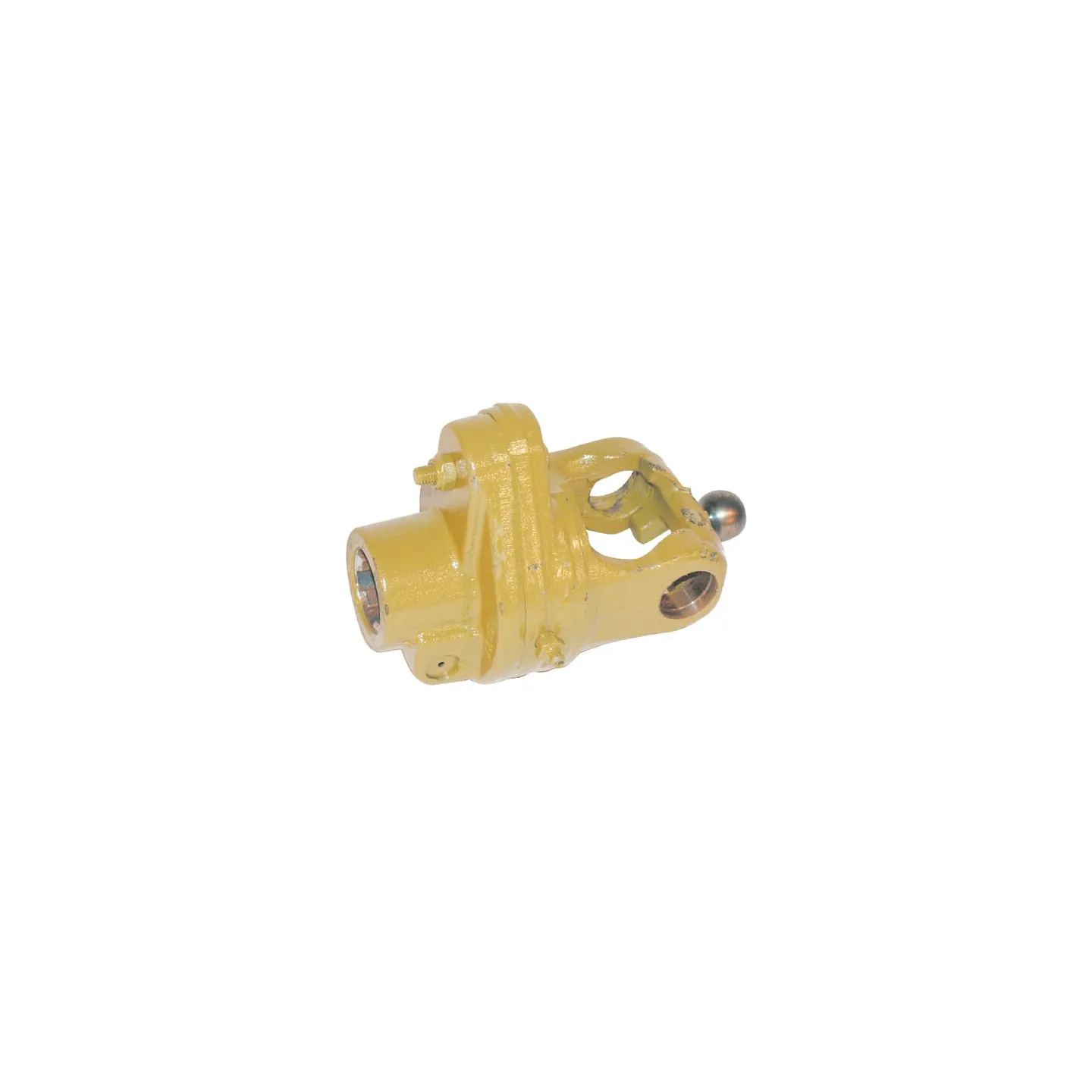

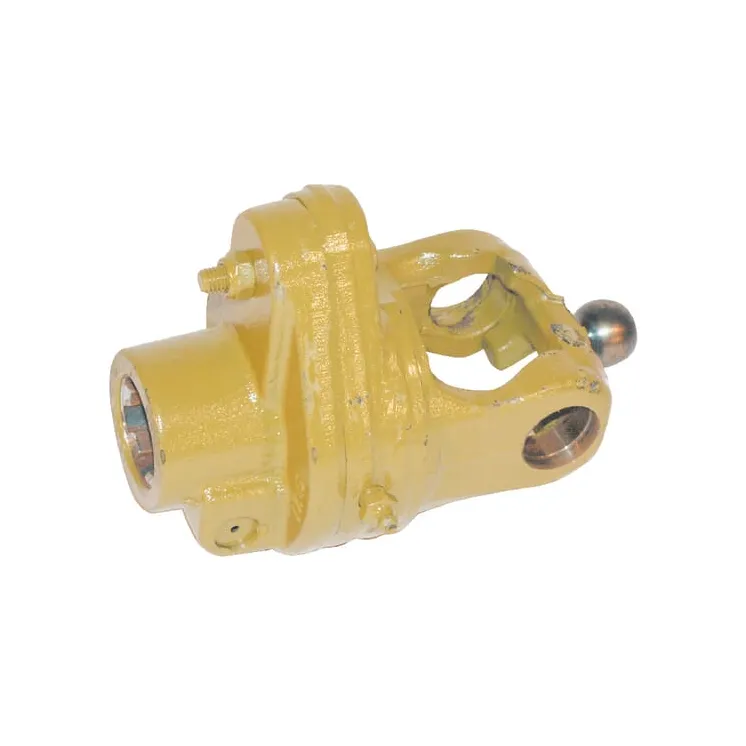

Shearbolt clutch KB61/20 W.A 5717518 Walterscheid
search
  • Shearbolt clutch KB61/20 W.A 5717518 Walterscheid

Shearbolt clutch KB61/20 W.A 5717518

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1,365.21
Tax included
4-5 Working days
Shearbolt clutch KB61/20 W.A 5717518 Walterscheid
IN WAREHOUSE

66902

Part number
5717518
EAN8435194026758
Unit
Each
Long description
Shear bolt clutches for wide-angle KB 61/2"0 cpl. 2370, 2380, 2480, 2580
Details
  • Drive fully disconnected
  • Repairable by replacing a shear bolt
Application range
  • Fertiliser pump
  • Shredder
  • Light balers
Properties
  • Regardless of direction of rotation
  • Power transmission via shear bolts
Technical info
Protects against blockages and overload
Benefits
  • Prevents against subsequent damage
  • Easy to start up
Max dynamic torque
2500 N·m
Share bolts thread diameter
M10
Share bolts thread length
60
Share bolts circle radius
48
Clutch type code
KB61/20
Max. rotation speed
1000 r/min
Shaft size code
W2580
Outside diameter
156 mm
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Locking type by machine side
Clamp bolt (interfering)
Original number equivalent
1365241
  • Brand
    Walterscheid
  • Reference
    5717518
  • In stock
    1 Item
  • Condition
    New
  • EAN
    8435194026758
