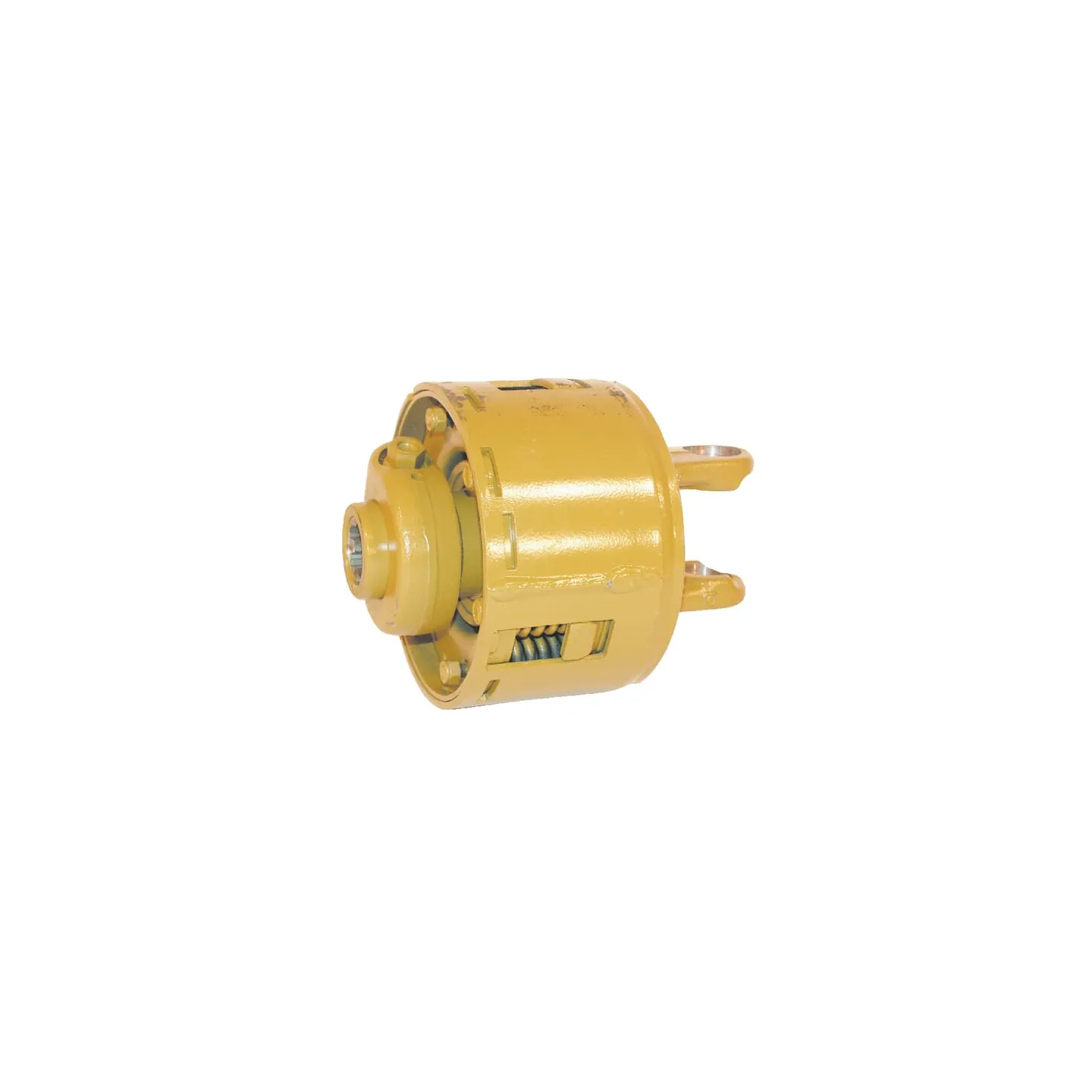

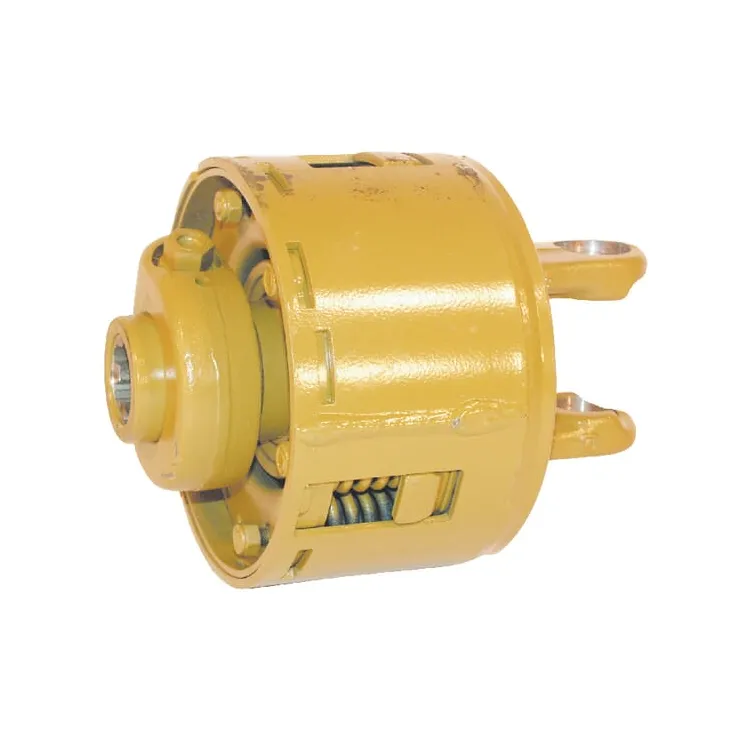

Friction clutch FK96/4R 230daNm 5814551230 Walterscheid
search
  • Friction clutch FK96/4R 230daNm 5814551230 Walterscheid

Friction clutch FK96/4R 230daNm 5814551230

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1,292.18
Tax included
On Request
Friction clutch FK96/4R 230daNm 5814551230 Walterscheid
ON REQUEST

66930

Part number
5814551230
EAN8432970132856
Unit
Each
Long description
Friction and overrunning clutches with spring pack FK96 / 4 cpl. 2400, 2500
Details
  • Combination of freewheel and friction disc clutch
  • Absorbs peak loads for short periods
  • Protection for subsequent mass
  • Max. torque adjustable via circlip
Application range
  • Big balers
  • Round balers
  • Mowers
Properties
  • Depending on the direction of rotation
  • Power transmission via friction discs
  • No noise during friction
  • Noise when freewheeling
  • Suitable as a starting clutch
Technical info
Observe maintenance instructions
Benefits
  • Torque retention
  • Smooth transition
  • Easier coupling when PTO shaft is braked
  • Wide range of applications
Clutch type code
FK96/4R
Connection locking type
Clamp cone
Outside connection diameter
  • 1-3/4 Inch
  • 1.75 Inch
Connection number of splines/grooves
6
Shaft size code
  • W2500
  • P500
Max. rotation speed
1000 r/min
Max static torque
2300 N·m
Cross cap diameter
36 mm
Cross length
100 mm
DOutside diameter
170 mm
LClutch part length
90 mm
Original number equivalent
1103906
Suitable for machine/vehicle brand
  • Rau
  • Wessex
  • EAN
    8432970132856
