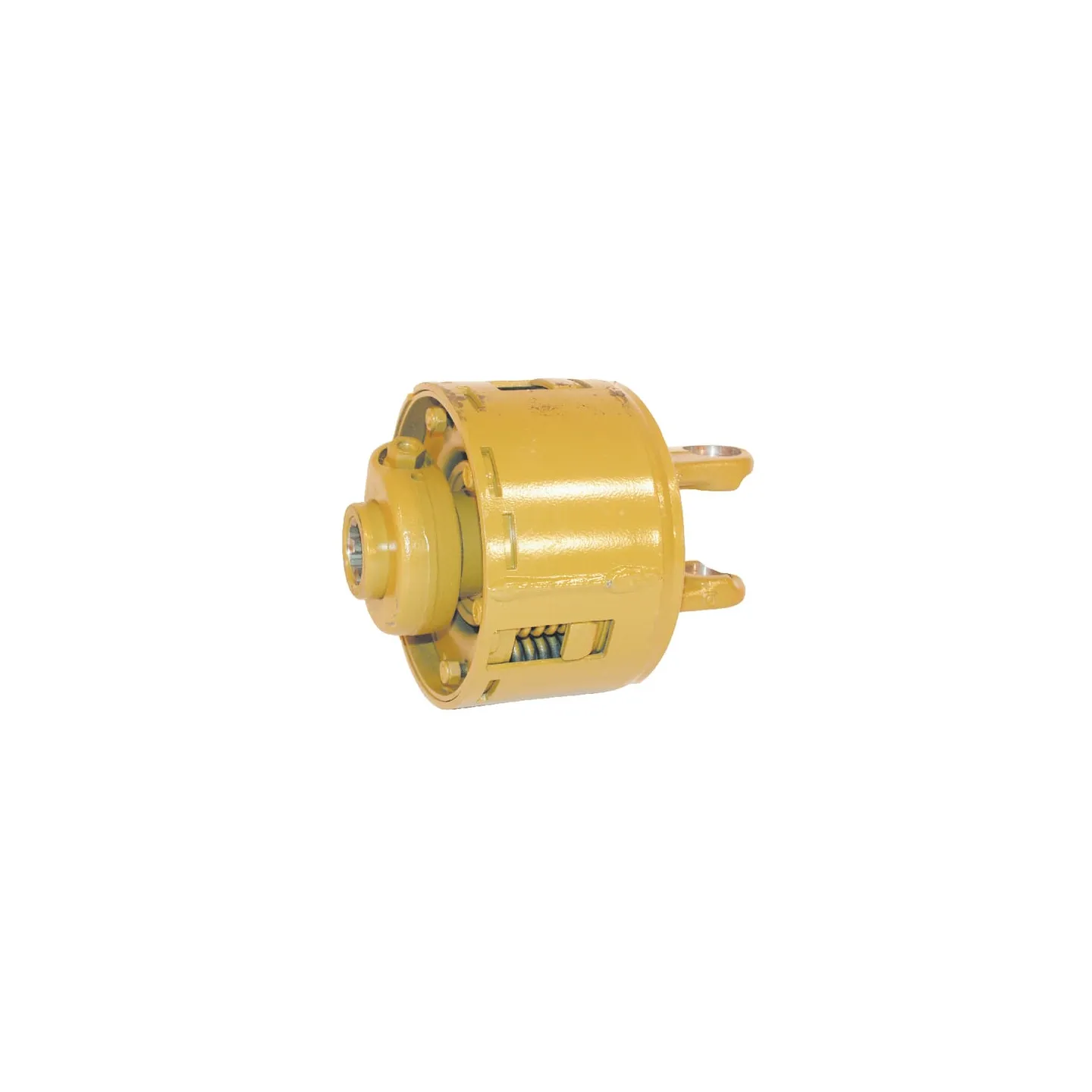

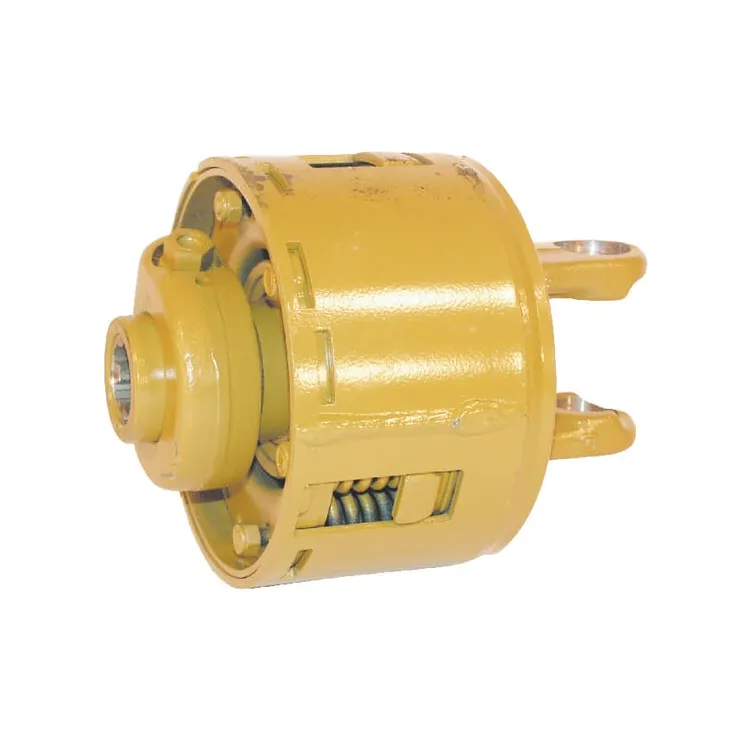

Friction clutch W2500 FK96/4R 150daNm 5813351150 Walterscheid
search
  • Friction clutch W2500 FK96/4R 150daNm 5813351150 Walterscheid

Friction clutch W2500 FK96/4R 150daNm 5813351150

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1,318.89
Tax included
4-5 Working days
Friction clutch W2500 FK96/4R 150daNm 5813351150 Walterscheid
IN WAREHOUSE

66942

Part number
5813351150
EAN8432970131255
Unit
Each
Long description
Friction and overrunning clutches with spring pack FK96 / 4 cpl. 2400, 2500
Details
  • Combination of freewheel and friction disc clutch
  • Absorbs peak loads for short periods
  • Protection for subsequent mass
  • Max. torque adjustable via circlip
Application range
  • Big balers
  • Round balers
  • Mowers
Properties
  • Depending on the direction of rotation
  • Power transmission via friction discs
  • No noise during friction
  • Noise when freewheeling
  • Suitable as a starting clutch
Technical info
Observe maintenance instructions
Benefits
  • Torque retention
  • Smooth transition
  • Easier coupling when PTO shaft is braked
  • Wide range of applications
Clutch type code
FK96/4R
Connection locking type
Clamp cone
Outside connection diameter
  • 1-3/8 Inch
  • 1.375 Inch
Connection number of splines/grooves
6
Shaft size code
W2500
Max. rotation speed
1000 r/min
Max static torque
1500 N·m
Cross cap diameter
36 mm
Cross length
100 mm
DOutside diameter
170 mm
LClutch part length
90 mm
Original number equivalent
1101661
Suitable for machine/vehicle brand
n/a
  • Brand
    Walterscheid
  • Reference
    5813351150
  • In stock
    2 Items
  • Condition
    New
  • EAN
    8432970131255
