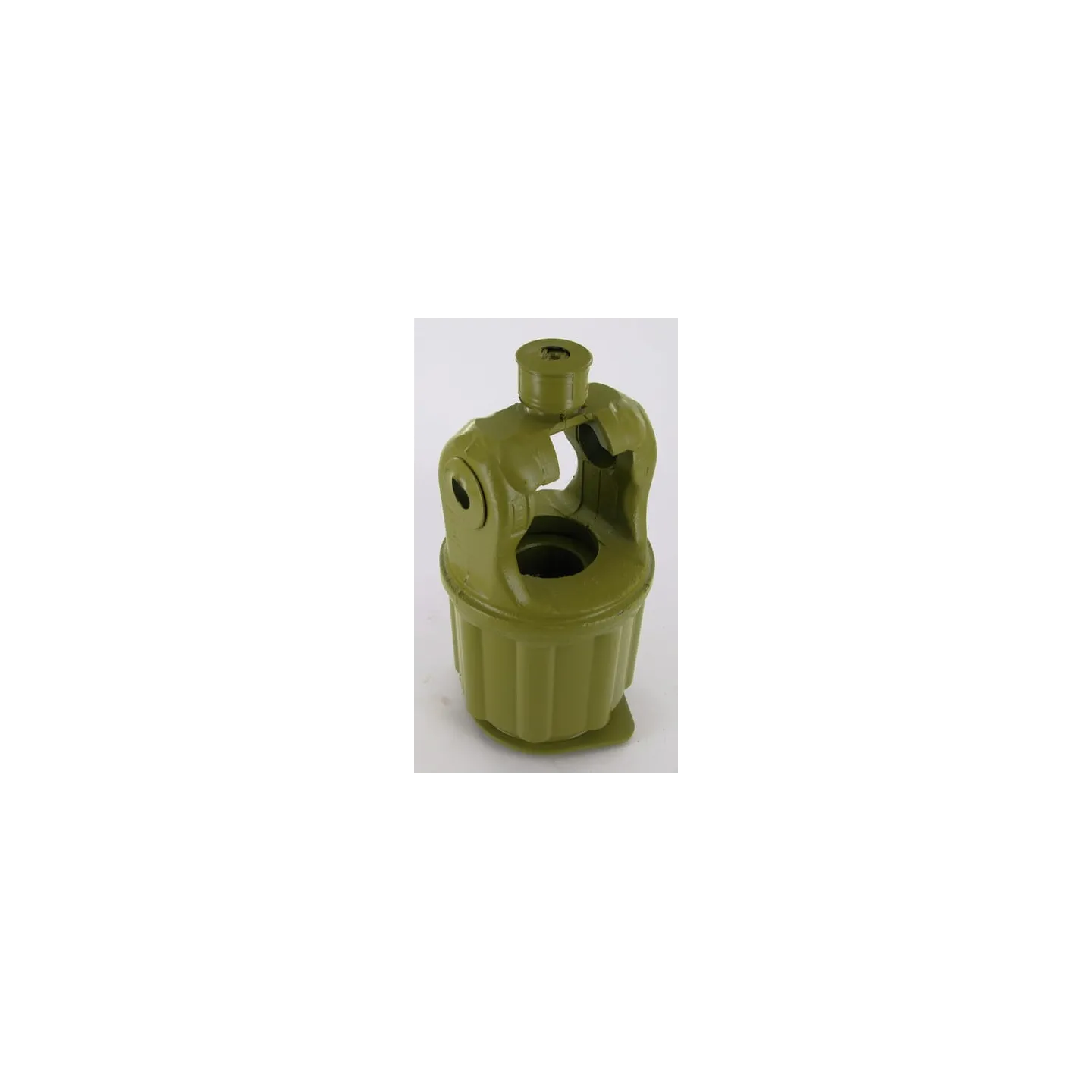

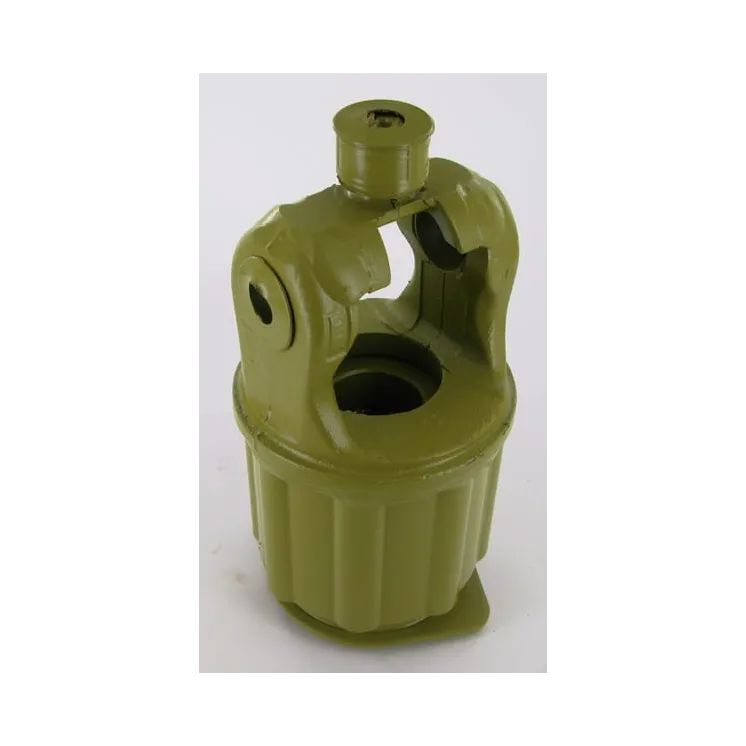

Clutch K33B 2380 1-3/8 6spl 556740390 Walterscheid
search
  • Clutch K33B 2380 1-3/8 6spl 556740390 Walterscheid

Clutch K33B 2380 1-3/8 6spl 556740390

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€488.77
Tax included
On Request
Clutch K33B 2380 1-3/8 6spl 556740390 Walterscheid
ON REQUEST

66999

Part number
556740390
EAN
Unit
Each
Long description
Star ratchet / radial pin clutches for wide-angle K 32-B cpl. 2270°,2370°,2280
Details
  • Clutch rattles when slipping through
  • Limits the torque in the event of overload
Application range
  • Tedders
  • Rakes
  • Silo spreaders
Properties
  • 2 directions of rotation
  • Impacts and vibrations
Technical info
Force transmission using cam and springs
Benefits
  • Acoustic signal in the event of overload
  • Pulsing power transmission when slipping through
Clutch type code
K33B
Connection locking type
Collar lock
Outside connection diameter
  • 1-3/8 Inch
  • 1.375 Inch
Connection number of splines/grooves
6
Shaft size code
W2380
Max. rotation speed
1000 r/min
Max static torque
900 N·m
Cross cap diameter
27 mm
Cross length
75 mm
Outside diameter
95 mm
LClutch part length
74 mm
Original number equivalent
1163741
Suitable for machine/vehicle brand
n/a
