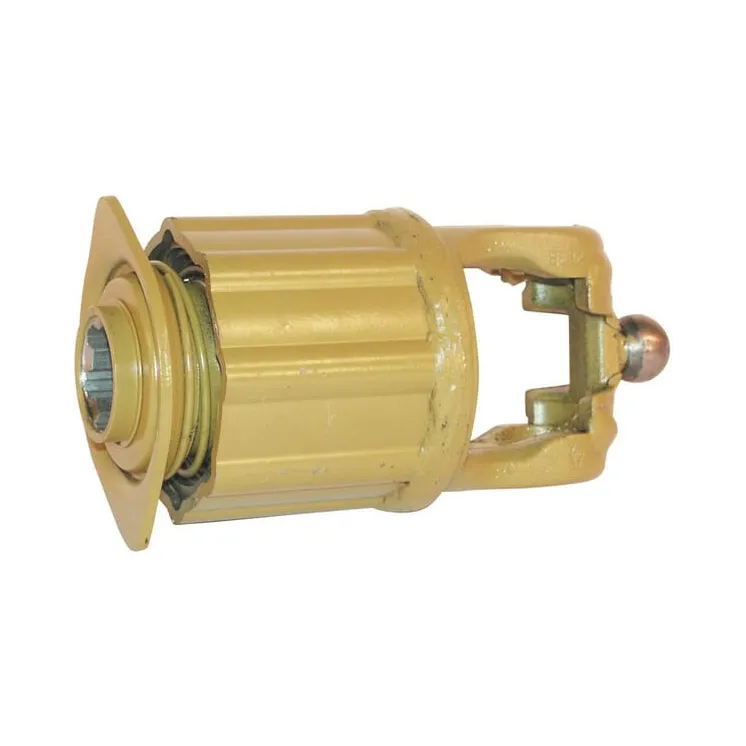

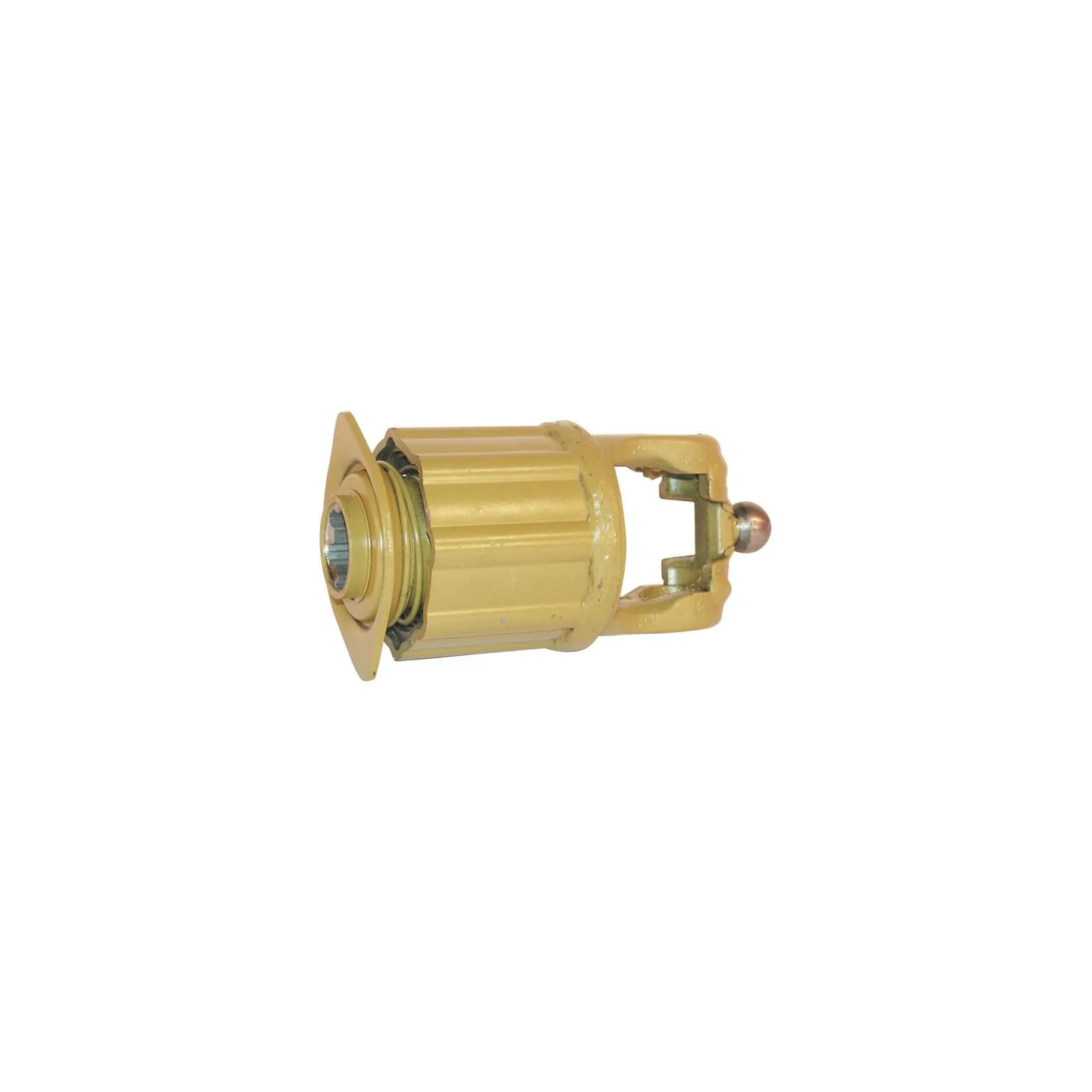

Radial pin clutch K34B withA 5562103120 Walterscheid
ON REQUEST

67031

Part number
5562103120
EAN8432970153820
Unit
Each
Long description
Star ratchet / radial pin clutches for wide-angle K 32-B cpl. 2270°,2370°,2280
Details
  • Clutch rattles when slipping through
  • Limits the torque in the event of overload
Application range
  • Tedders
  • Rakes
  • Silo spreaders
Properties
  • 2 directions of rotation
  • Impacts and vibrations
Technical info
Force transmission using cam and springs
Benefits
  • Acoustic signal in the event of overload
  • Pulsing power transmission when slipping through
Clutch type code
K34B
Connection locking type
Collar lock
Outside connection diameter
  • 1-3/8 Inch
  • 1.375 Inch
Connection number of splines/grooves
6
Shaft size code
W2480
Max. rotation speed
1000 r/min
Max static torque
1200 N·m
Cross cap diameter
32 mm
Cross length
76 mm
Outside diameter
95 mm
LClutch part length
93 mm
Original number equivalent
1163744
Suitable for machine/vehicle brand
n/a
  • EAN
    8432970153820
