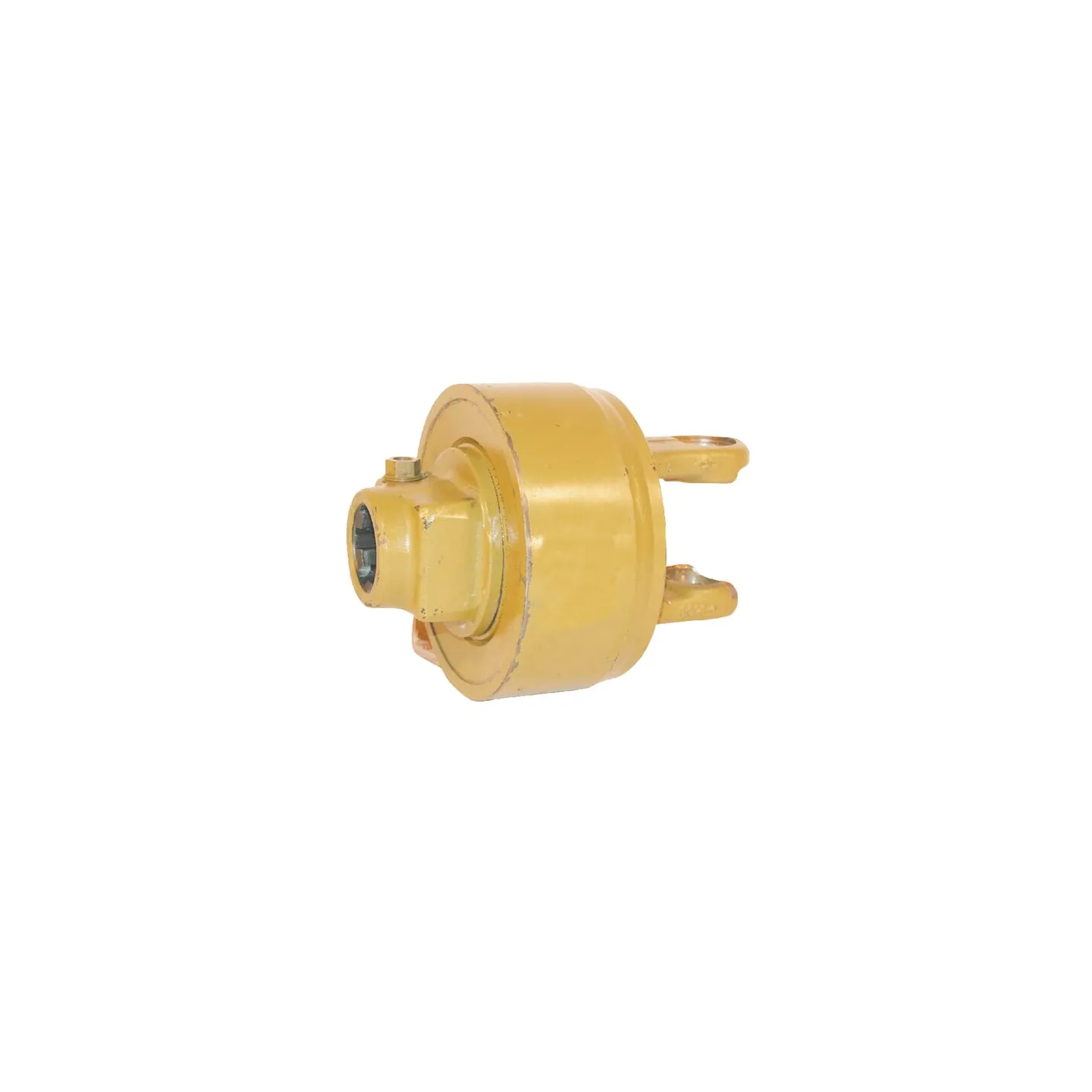

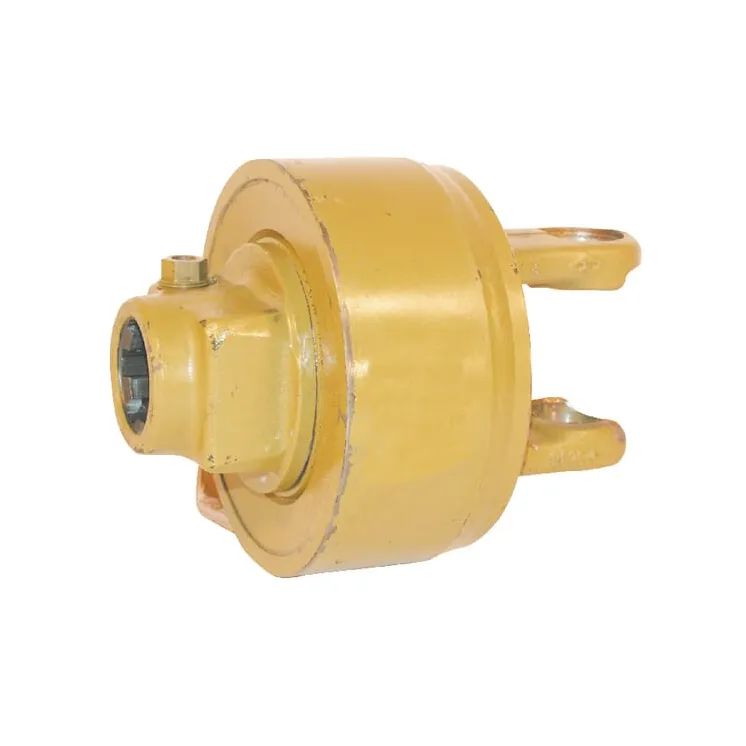

Cam clutch K64/22R 5912743200 Walterscheid
search
  • Cam clutch K64/22R 5912743200 Walterscheid

Cam clutch K64/22R 5912743200

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1,644.52
Tax included
4-5 Working days
Cam clutch K64/22R 5912743200 Walterscheid
IN WAREHOUSE

67096

Part number
5912743200
EAN
Unit
Each
Long description
  • Cam clutches K64 Series
  • Series includes K64/12, K64/22, K64/24
Details
  • Drive is interrupted when overloaded
  • Switches on automatically at low speed
Pros
  • 1 direction of rotation
  • Protection of the drive train
  • No time loss due to coupling repair
Product details
  • Dropping the rpm allows the torque to build up in a pulsating way
  • Drive stops when overloaded
  • Automatically switches on with low rpm
Application range
  • Round baler
  • Silage wagon
  • Rotary harrow
  • Shredder adapter
Properties
1 direction of rotation
Technical info
Torque can be set to pulsing by reducing the speed
Benefits
  • Drive protection
  • No time is lost by restoring torque
Clutch type code
K64/22R
Connection locking type
Clamp cone
Outside connection diameter
  • 1-3/4 Inch
  • 1.75 Inch
Connection number of splines/grooves
6
Shaft size code
  • W2500
  • P500
Max. rotation speed
1000 r/min
Max static torque
2000 N·m
Cross cap diameter
36 mm
Cross length
100 mm
Outside diameter
168 mm
Original number equivalent
1134445
Suitable for machine/vehicle brand
Stehr
  • Brand
    Walterscheid
  • Reference
    5912743200
  • In stock
    2 Items
  • Condition
    New
