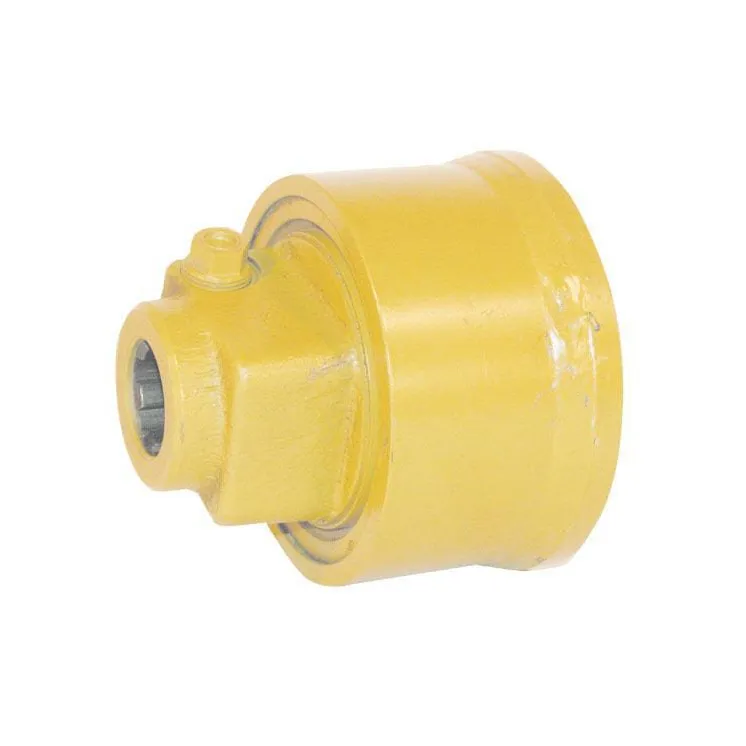

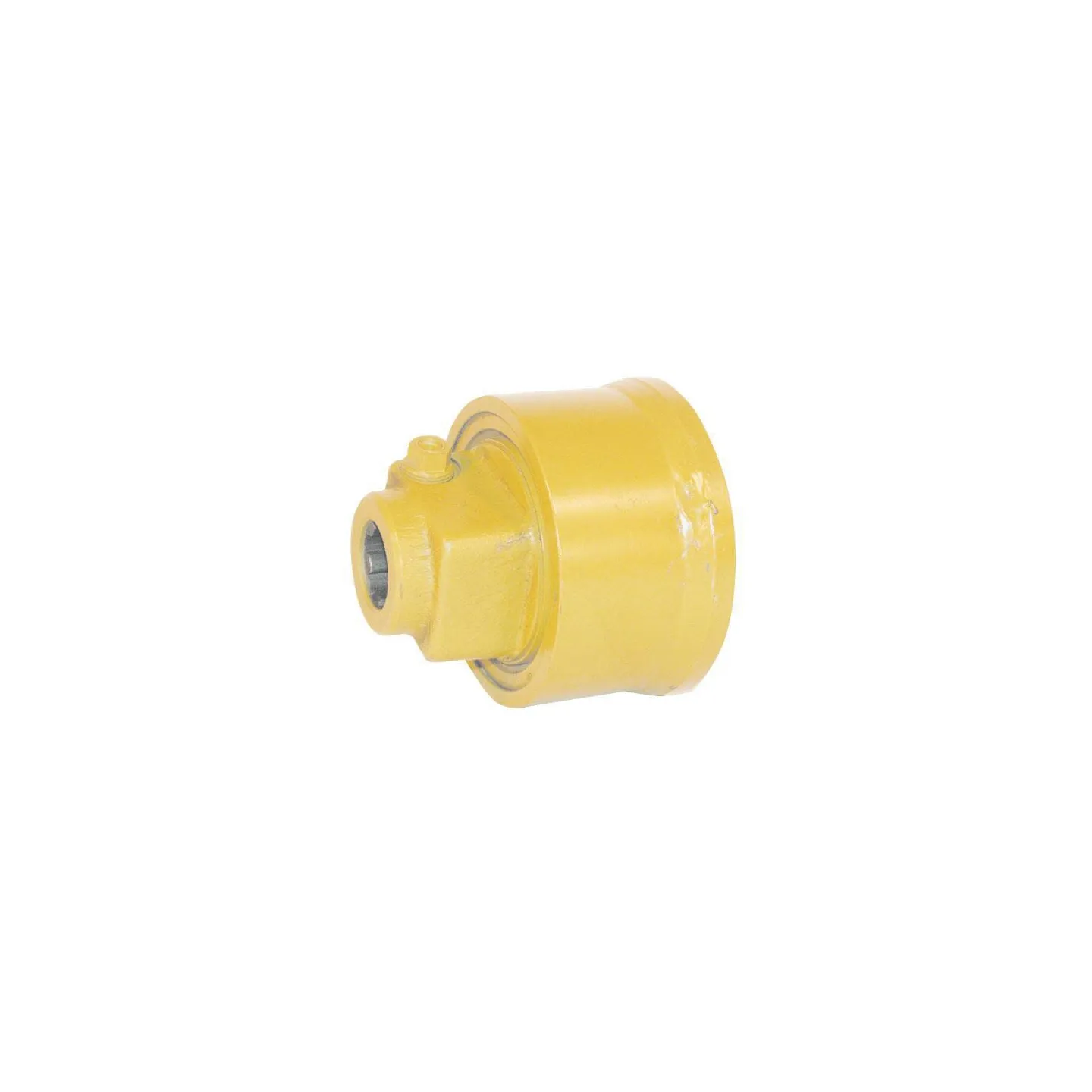

Cam clutch EK64/22R 5910743200 Walterscheid
search
  • Cam clutch EK64/22R 5910743200 Walterscheid

Cam clutch EK64/22R 5910743200

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1,506.50
Tax included
On Request
Cam clutch EK64/22R 5910743200 Walterscheid
ON REQUEST

67098

Part number
5910743200
EAN8435194017756
Unit
Each
Long description
Cam-type cut-out clutches EK 64/12 cpl.
Details
  • Drive is interrupted when overloaded
  • Switches on automatically at low speed
Application range
  • Round baler
  • Silage wagon
  • Rotary harrow
  • Shredder adapter
Properties
1 direction of rotation
Technical info
Torque can be set to pulsing by reducing the speed
Benefits
  • Drive protection
  • No time is lost by restoring torque
Clutch type code
EK64/22R
Connection locking type
Clamp cone
Outside connection diameter
  • 1-3/4 Inch
  • 1.75 Inch
Connection number of splines/grooves
6
Shaft size code
  • W2500
  • W2600
  • W2700
  • W2580
  • P480
  • P580
Max. rotation speed
1000 r/min
Max static torque
2000 N·m
DOutside diameter
168 mm
Original number equivalent
1129931
Suitable for machine/vehicle brand
Strautmann
  • EAN
    8435194017756
