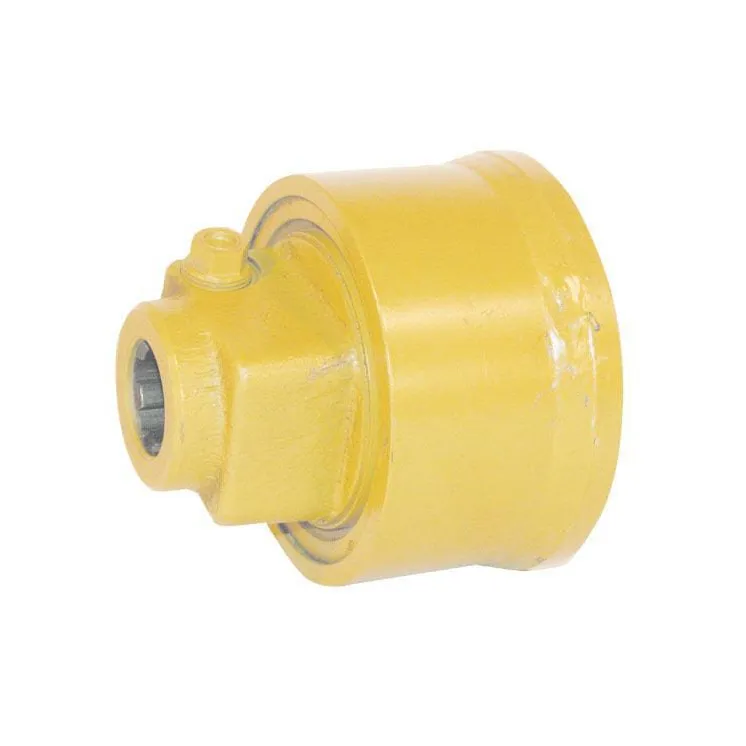

Clutch EK64/24R 1 3/4-20 TK138 5910144250 Walterscheid 1129875
ON REQUEST

67102

Part number
5910144250
EAN
Unit
Each
Long description
Cam-type cut-out clutches EK 64/12 cpl.
Details
  • Drive is interrupted when overloaded
  • Switches on automatically at low speed
Application range
  • Round baler
  • Silage wagon
  • Rotary harrow
  • Shredder adapter
Properties
1 direction of rotation
Technical info
Torque can be set to pulsing by reducing the speed
Benefits
  • Drive protection
  • No time is lost by restoring torque
Clutch type code
EK64/24R
Connection locking type
Clamp cone
Outside connection diameter
  • 1-3/4 Inch
  • 1.75 Inch
Connection number of splines/grooves
20
Shaft size code
  • W2500
  • W2480
  • W2580
  • P480
  • P580
Max. rotation speed
1000 r/min
Max static torque
2500 N·m
DOutside diameter
168 mm
Original number equivalent
1129869
Suitable for machine/vehicle brand
n/a
  • CODE
    1129875
