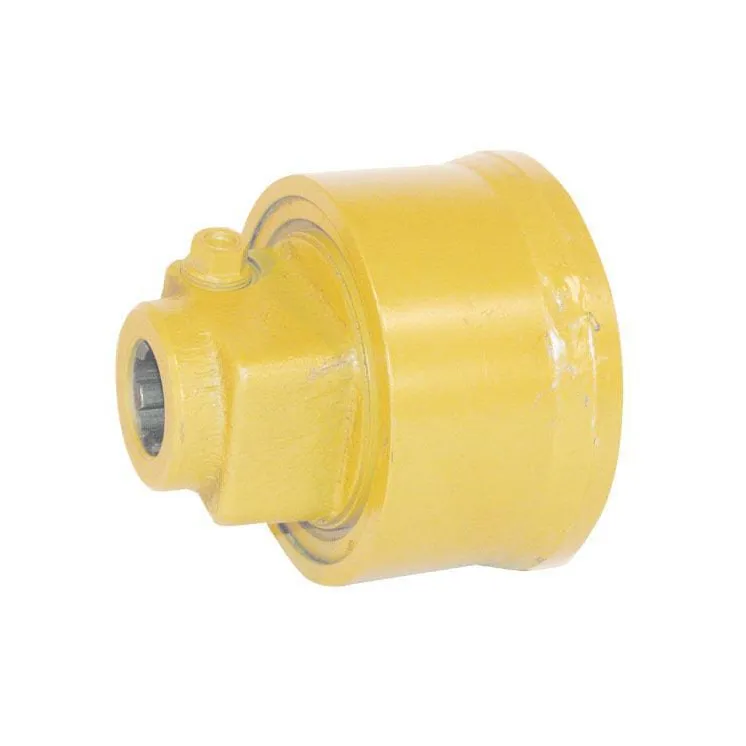

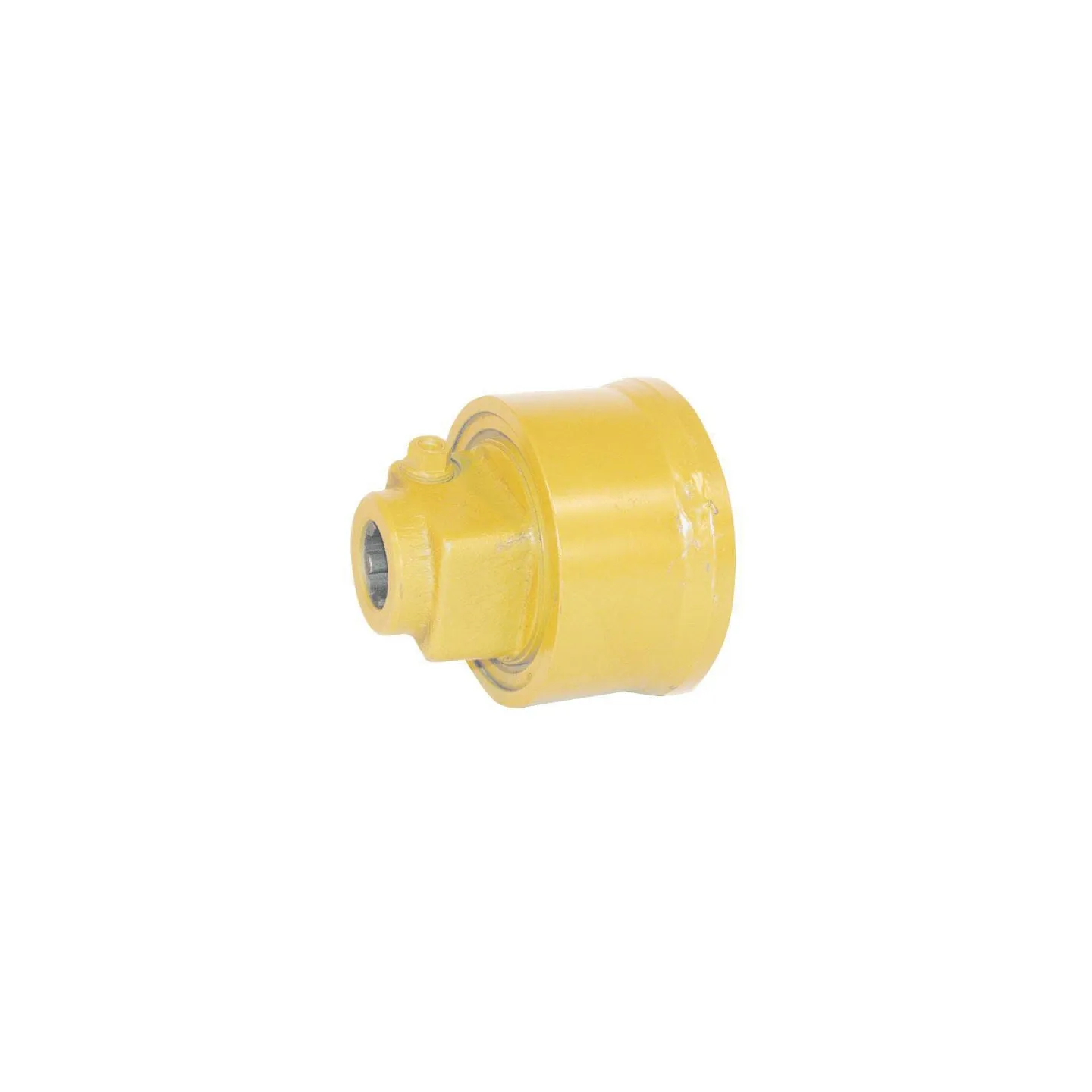

Cam clutch EK64/22R 5913243140 Walterscheid
search
  • Cam clutch EK64/22R 5913243140 Walterscheid

Cam clutch EK64/22R 5913243140

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1,468.44
Tax included
On Request
Cam clutch EK64/22R 5913243140 Walterscheid
ON REQUEST

67133

Part number
5913243140
EAN8432970151840
Unit
Each
Long description
Cam-type cut-out clutches EK 64/12 cpl.
Details
  • Drive is interrupted when overloaded
  • Switches on automatically at low speed
Application range
  • Round baler
  • Silage wagon
  • Rotary harrow
  • Shredder adapter
Properties
1 direction of rotation
Technical info
Torque can be set to pulsing by reducing the speed
Benefits
  • Drive protection
  • No time is lost by restoring torque
Clutch type code
EK64/22R
Connection locking type
Clamp cone
Outside connection diameter
  • 1-3/8 Inch
  • 1.375 Inch
Connection number of splines/grooves
6
Shaft size code
  • W2300
  • W2400
  • W2380
  • W2480
Max. rotation speed
1000 r/min
Max static torque
1400 N·m
DOutside diameter
130 mm
Original number equivalent
1135489
Suitable for machine/vehicle brand
n/a
  • EAN
    8432970151840
