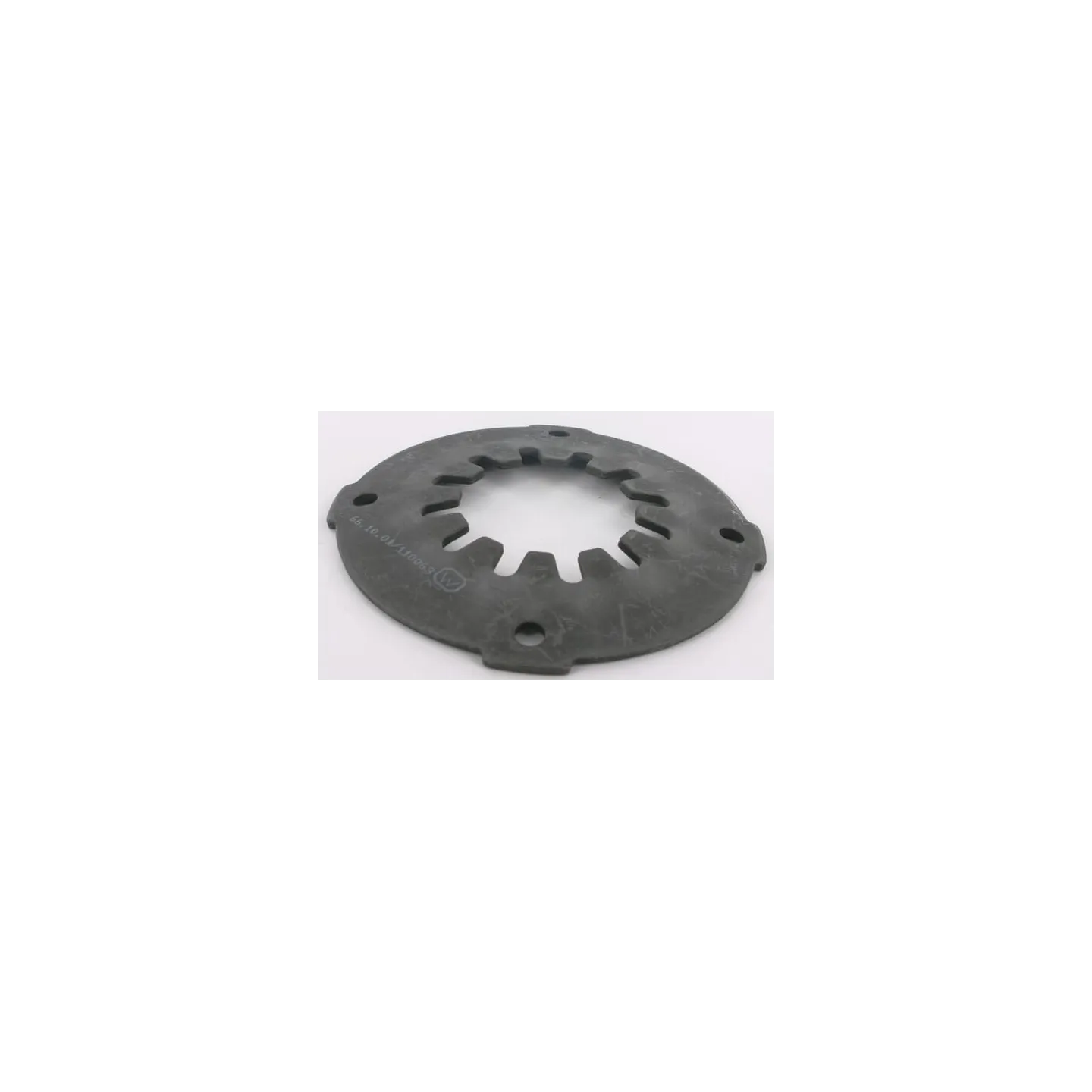

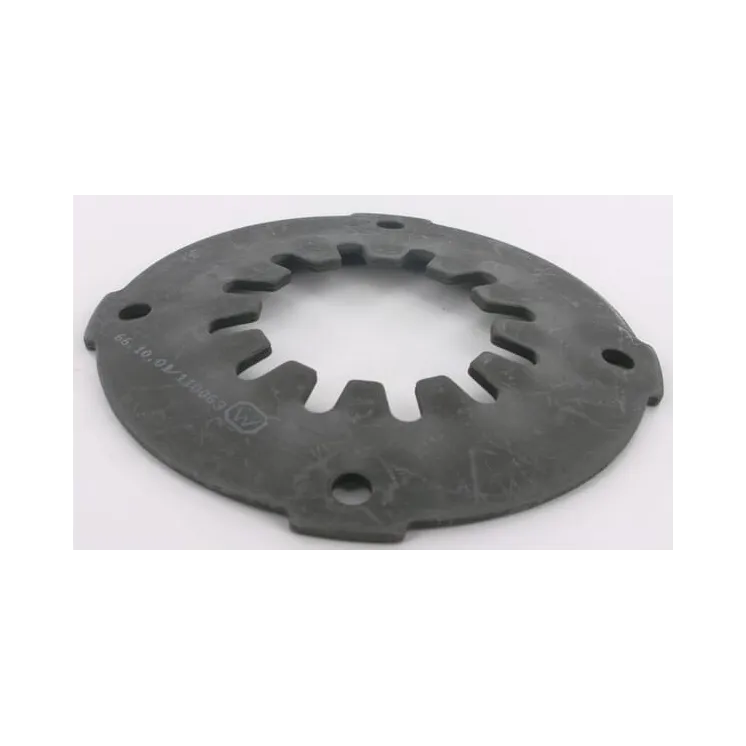

Belleville Spring 3,7mm 661001

Name: Belleville Spring 3,7mm 661001
Brand: Walterscheid
SKU: 661001
Price: 64.71 EUR
Availability: InStock

Payment options

€64.71

Tax included

4-5 Working days

Belleville Spring 3,7mm 661001 Walterscheid

IN WAREHOUSE

ID: 67274

Description

Part number	661001
EAN	8432970136441
Unit	Each
Properties	Springs used for each clutch in relation to the torque: Disc clutch type K92: 66.09.00 + 66.16.00 = 55 daNm 66.09.00 + 66.09.00 = 65 daNm 66.09.00 + 66.10.00 = 75 daNm 66.10.00 + 66.10.00 = 90 daNm 66.10.00 + 66.10.01 = 100 daNm Disc clutch type K92/4: 66.16.01 + 66.16.01 = 65 daNm 66.16.01 + 66.16.00 = 75 daNm 66.16.01 + 66.09.02 = 80 daNm 66.16.00 + 66.09.00 = 95 daNm 66.09.02 + 66.09.00 = 105 daNm 66.10.00 + 66.16.00 = 120 daNm 66.09.02 + 66.10.00 = 135 daNm 66.09.00 + 66.10.00 = 150 daNm
Inside diameter	63 mm
Outside diameter	152 mm
Thickness	3.7 mm
Original number equivalent	1110063
