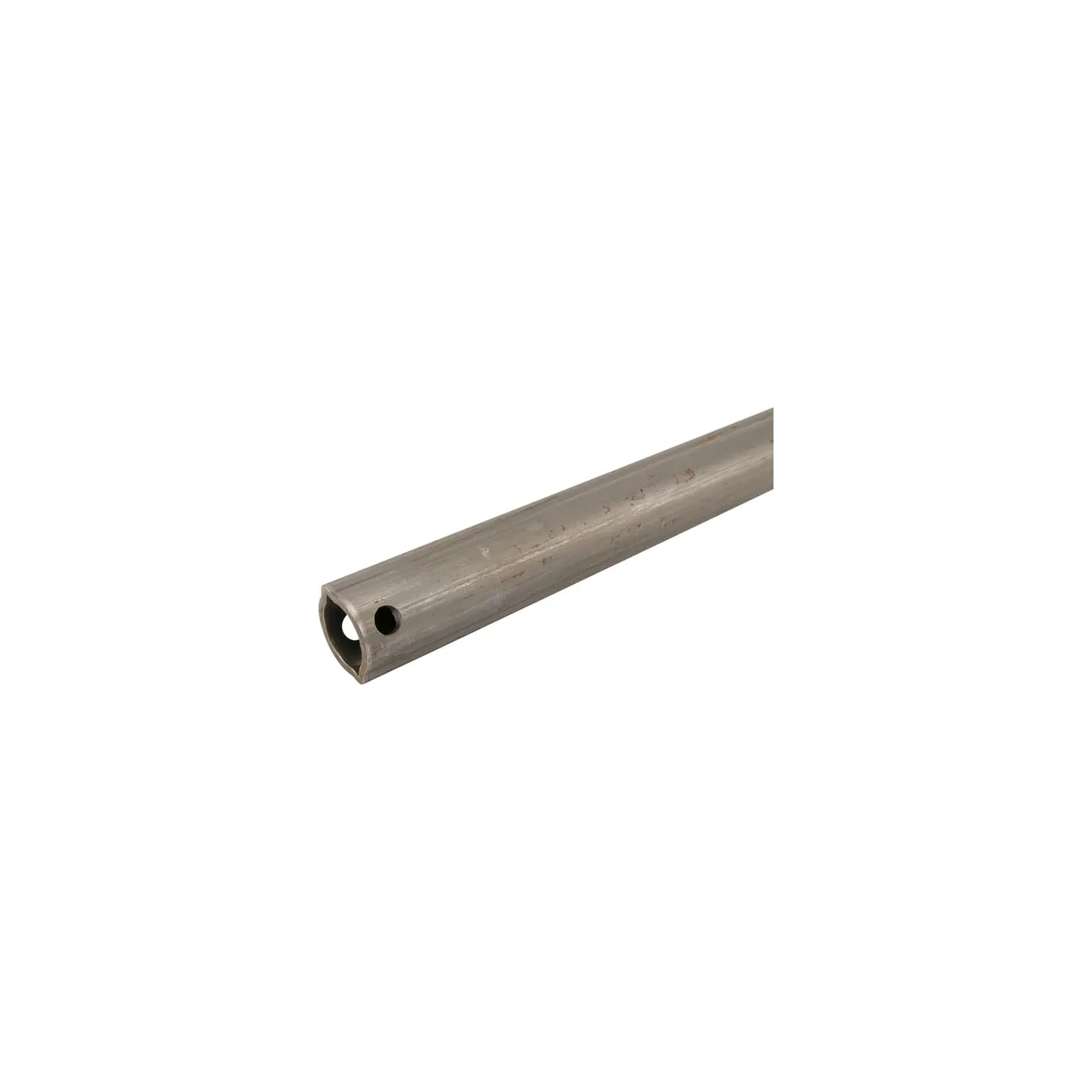

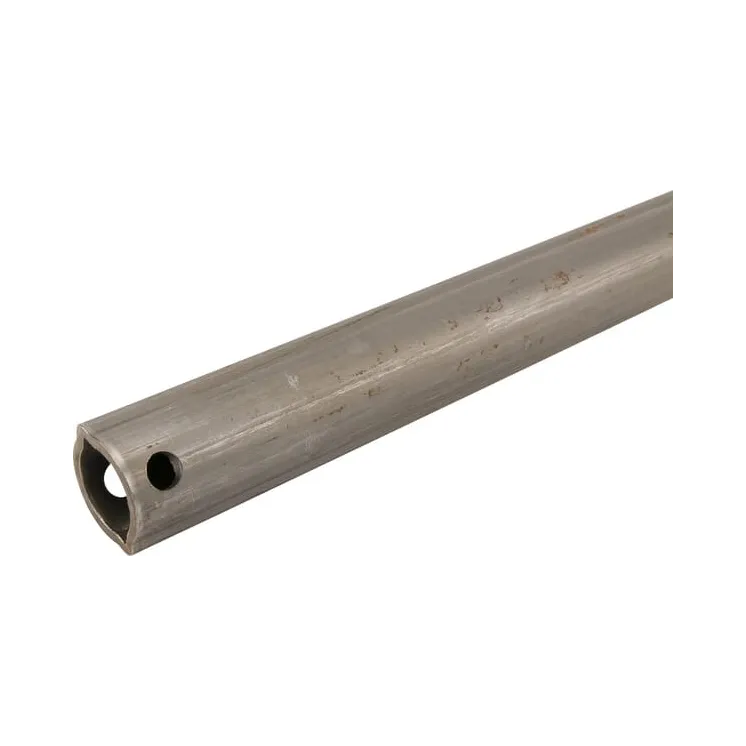

Profile tube lemon Ov in: 32 out: 40x34.5x4mm L: 1.4m 75111501400

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€110.58
Tax included
On Request
Profile tube lemon Ov in: 32 out: 40x34.5x4mm L: 1.4m 75111501400 Walterscheid
ON REQUEST

67565

Part number
75111501400
EAN8435194017190
Unit
Each
Long description
Profile tubes standard 1.4m
Product details
  • Two-sided pre-bored for mounting spring pin
  • Minimum overlap half tube length
Technical info
Minimum overlay half pipe length
Profile shape
Lemon
Length
1400 mm
Large outer diameter
40 mm
Inside diameter
32 mm
Small outer diameter
34.5 mm
Wall thickness
4 mm
Shaft size
  • W2200
  • W2300
Profile type
Ov
Fits inside profile type
1
Roll pin diameter
11 mm
Original number equivalent
1123382
Additional info
*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
  • EAN
    8435194017190
