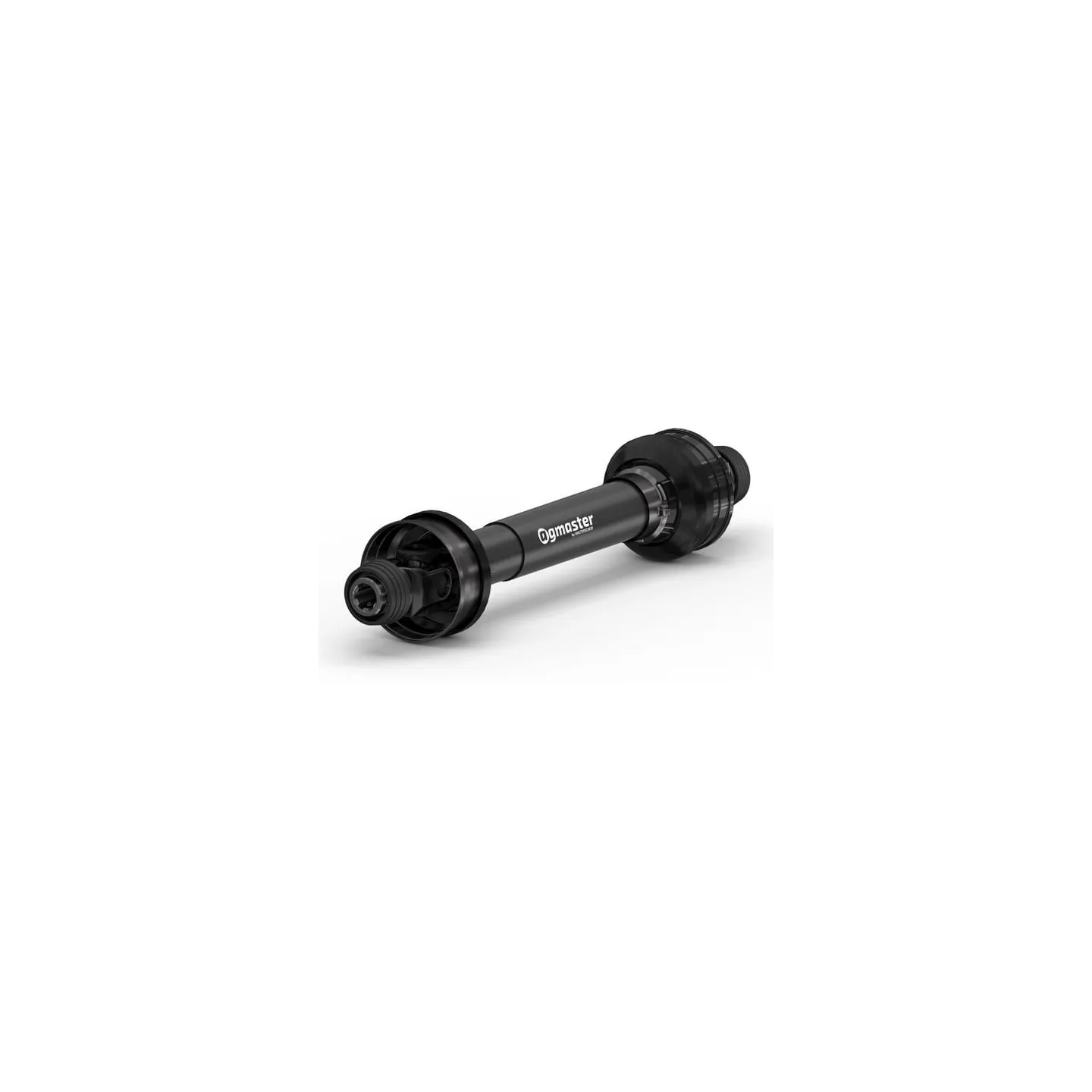

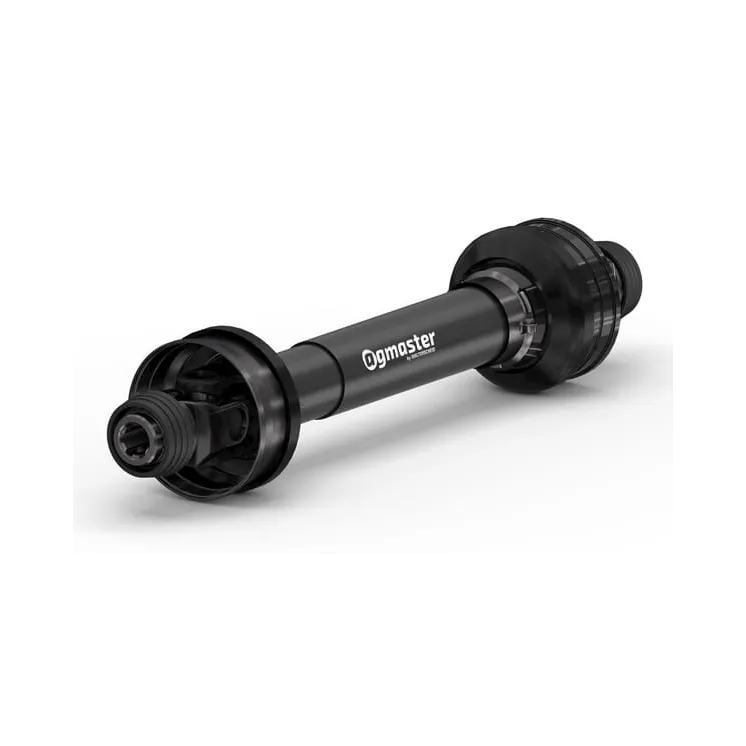

PTO shaft AGM4 length 1210 AGM41210 8372864

Name: PTO shaft AGM4 length 1210 AGM41210 8372864
Brand: Walterscheid
SKU: AGM41210
Price: 283.64 EUR
Availability: InStock

Payment options

€283.64

Tax included

4-5 Working days

PTO shaft AGM4 length 1210 AGM41210 Walterscheid 8372864

IN WAREHOUSE

ID: 68396

Description

Part number	AGM41210
EAN
Unit	Each
Connection outside diameter by tractor side	1-3/8 Inch
Connection number of splines/grooves by tractor side	6
Locking type by tractor side	Collar lock
Attachment tractor side	Quick disconnect yoke
Connection outside diameter by machine side	1-3/8 Inch
Connection number of splines/grooves by machine side	6
Locking type by machine side	Collar lock
Attachment machine side	Quick disconnect yoke
Length	1210 mm 1300 mm
Cross joint bush diameter by tractor side	32 mm
Cross joint length by tractor side	76 mm
Cross joint bush diameter by machine side	32 mm
Cross joint length by machine side	76 mm
Clutch type	n/a
Outer tube profile	2a
Outer tube wall thickness	4 mm
Outer tube large outside diameter	57.5 mm
Inner tube profile	1b
Inner tube wall thickness	4.5 mm
Inner tube large outside diameter	49 mm
Profile tube shape	Lemon
Original number equivalent	8372864
Additional info	*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
