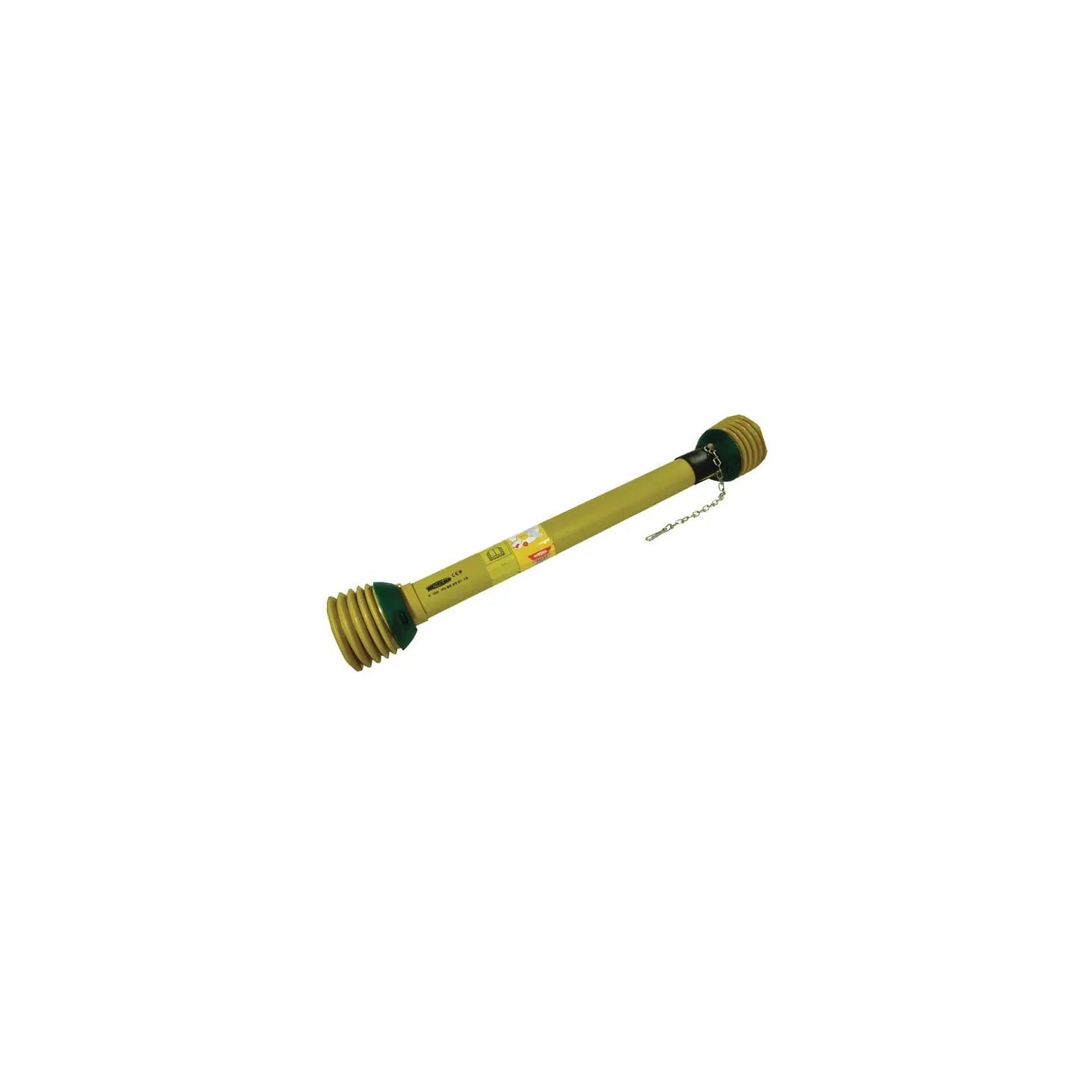

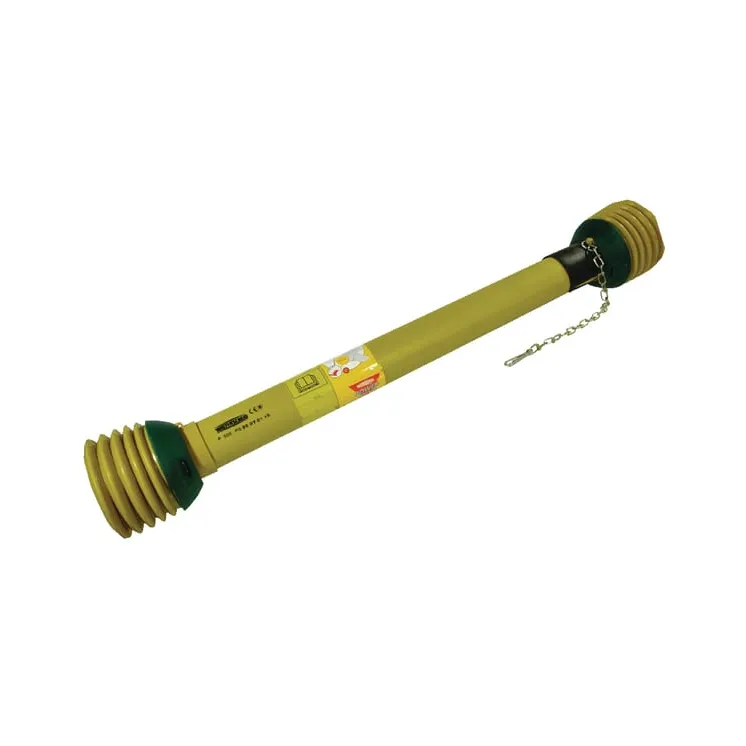

PTO shaft P500 L: 1010mm with shear bolt clutch, P50010105726518 Walterscheid 1601704
search
  • PTO shaft P500 L: 1010mm with shear bolt clutch, P50010105726518 Walterscheid 1601704

PTO shaft P500 L: 1010mm with shear bolt clutch, P50010105726518 1601704

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1,358.55
Tax included
On Request
PTO shaft P500 L: 1010mm with shear bolt clutch, P50010105726518 Walterscheid 1601704
ON REQUEST

68593

  • Brand
    Walterscheid
  • Reference
    P50010105726518
  • Condition
    New
  • CODE
    1601704
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
P50010105726518
EAN
Unit
Each
Details
  • Lubrication interval: 100 to 250 hours
  • Profiled guard tube prevents rotation
  • Sealed profile tube prevents penetration of dirt
  • Quickly removable shielding
  • No safety chain required on tractor side
Application range
  • Harvesters
  • Soil cultivating machinery
  • Wood shredders
Properties
  • Meet the requirements of EC 89/392 EEC
  • Comply with safety standard EN12965
  • CE marking awarded
Technical info
  • Follow the Walterscheid instruction manual
  • Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm
  • Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm
  • Values at a working angle of 5° and service life 1000 hours
  • LZ = slid-in length in mm, from intersection to intersection
Benefits
  • Longer life time than standard PTO shaft
  • Low maintenance costs
  • Faster coupling
Connection outside diameter by tractor side
1-3/4 Inch
Connection number of splines/grooves by tractor side
20
Consists of
  • PTO shaft with guard tube
  • Declaration of conformity
  • Instruction manual
  • Yokes not supplied
Locking type by tractor side
Push pin
Attachment tractor side
Quick disconnect yoke
Connection outside diameter by machine side
1-3/4 Inch
Connection number of splines/grooves by machine side
20
Locking type by machine side
Clamp bolt (interfering)
Attachment machine side
Shear bolt clutch
Size code
P500
Length
1010 mm
Power 540 rpm
66 kW
Power 1000 rpm
102 kW
Cross joint bush diameter by tractor side
36 mm
Cross joint length by tractor side
89 mm
Cross joint bush diameter by machine side
36 mm
Cross joint length by machine side
89 mm
Clutch type
KB61/20
Max. clutch torque
3330 N·m
Outer tube profile
S5
Outer tube wall thickness
4.5 mm
Outer tube large outside diameter
61 mm
Inner tube profile
S4
Inner tube large outside diameter
51 mm
Profile tube shape
Star
Max static torque
6000 N·m
Protection type
PG25
Original number equivalent
1601704
