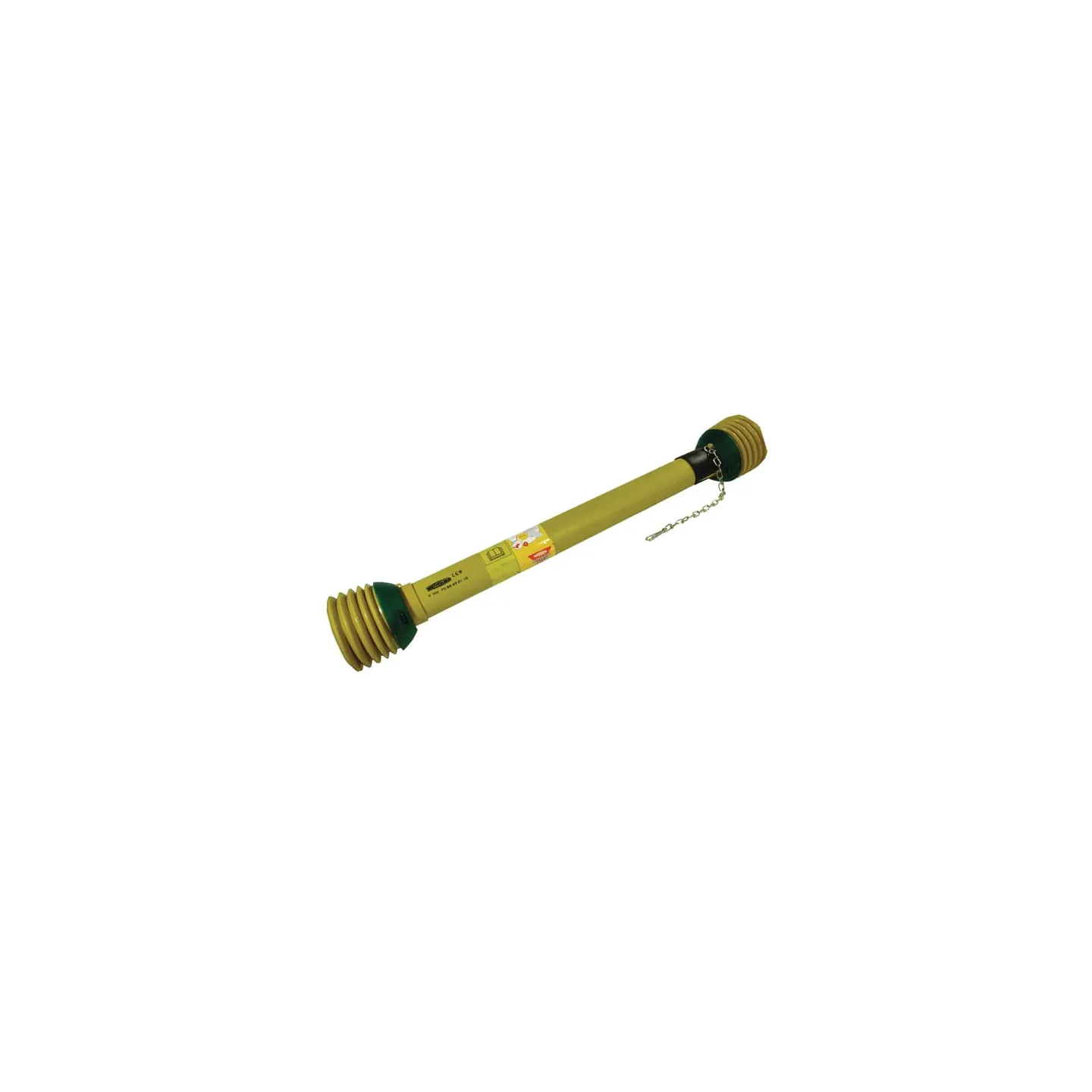

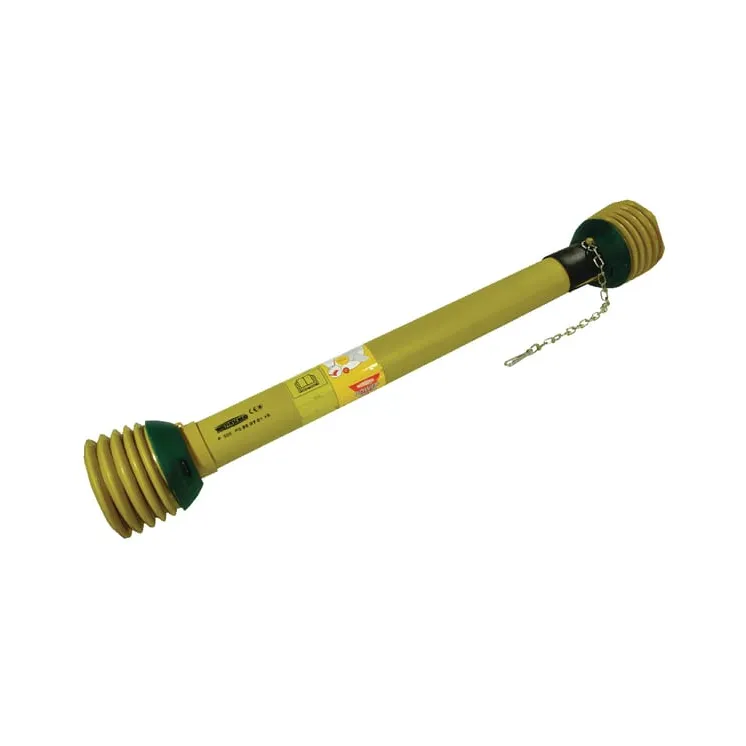

PTO shaft without end yokes P4001210S4S5OG

Name: PTO shaft without end yokes P4001210S4S5OG
Brand: Walterscheid
SKU: P4001210S4S5OG
Price: 867.74 EUR
Availability: InStock

Payment options

€867.74

Tax included

4-5 Working days

PTO shaft without end yokes P4001210S4S5OG Walterscheid

IN WAREHOUSE

ID: 68594

Description

Part number	P4001210S4S5OG
EAN
Unit	Each
Details	Dispense duration: 100–250 hours Profiled guard tube prevents turning. Sealed profile tube prevents infiltration of dirt. Quickly removable shielding No safety chain on tractor side required
Application range	Mowers Harvesters Soil cultivating machinery
Properties	Fulfilling the requirements laid out in EC 89/392 EEC Compliant with EN12965 safety standard CE marking available
Technical info	See Walterscheid instruction manual Max. dynamic capacity 540 rpm: 39 kW, 695 Nm Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm Values at working angle 5° and service life 1000 hours LZ = closed length in mm, from intersection to intersection
Benefits	Longer service life than standard pto shaft Lower maintenance costs Faster coupling
Consists of	Pto shaft with guard tube Declaration of conformity Instruction manual Delivered without yokes
Locking type by tractor side	Cross
Attachment tractor side	n/a
Locking type by machine side	Cross
Attachment machine side	n/a
Size code	P400
Length	1210 mm
Power 540 rpm	39 kW
Power 1000 rpm	61 kW
Cross joint bush diameter by tractor side	32 mm
Cross joint length by tractor side	76 mm
Cross joint bush diameter by machine side	32 mm
Cross joint length by machine side	76 mm
Outer tube profile	S5
Inner tube profile	S4LH
Profile tube shape	Star
Max static torque	3000 N·m
Protection type	PG25
Original number equivalent	1113137
