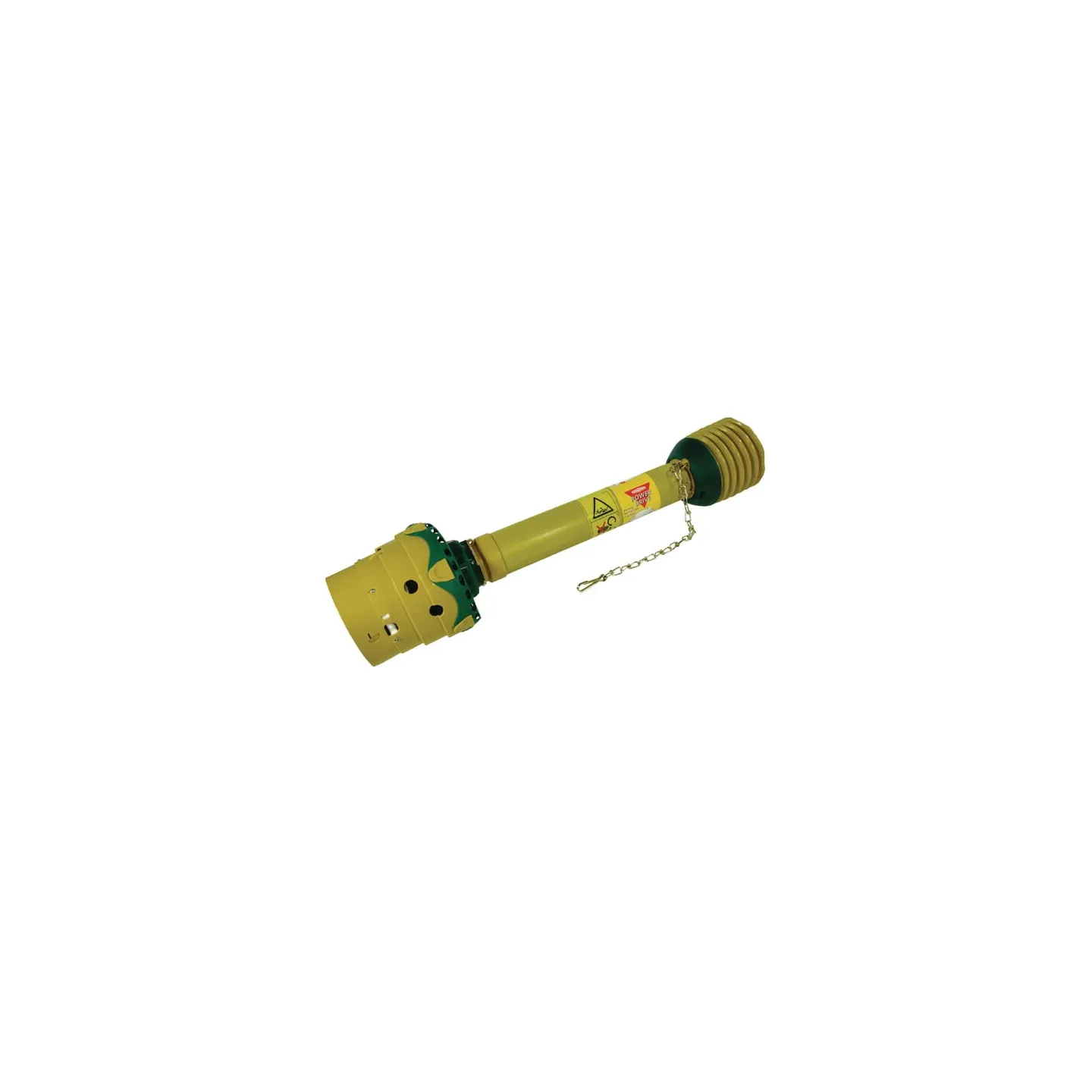

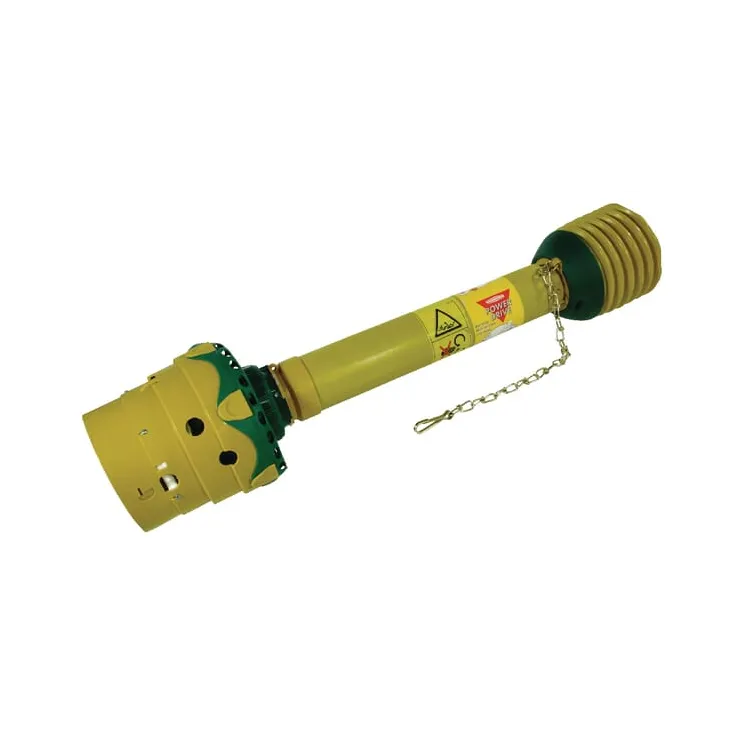

PTO shaft without yokes PWE 480 L: 1210mm, PWE4801210S4S5OG Walterscheid 1113260 PWE4801210OGS4LGAS5
search
  • PTO shaft without yokes PWE 480 L: 1210mm, PWE4801210S4S5OG Walterscheid 1113260 PWE4801210OGS4LGAS5

PTO shaft without yokes PWE 480 L: 1210mm, PWE4801210S4S5OG 1113260 PWE4801210OGS4LGAS5

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1,494.83
Tax included
On Request
PTO shaft without yokes PWE 480 L: 1210mm, PWE4801210S4S5OG Walterscheid 1113260 PWE4801210OGS4LGAS5
ON REQUEST

68620

  • Brand
    Walterscheid
  • Reference
    PWE4801210S4S5OG
  • Condition
    New
  • CODE
    1113260 PWE4801210OGS4LGAS5
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
PWE4801210S4S5OG
EAN
Unit
Each
Details
  • Robust, radial spherical plain bearing integrated in centring system
  • Profiled guard tube prevents turning.
  • Sealed profile tube prevents infiltration of dirt.
  • Quickly removable shielding
  • No safety chain on tractor side required
Application range
  • Mixing wagon
  • Slurry wagon
  • Harvesters
  • Loader wagons
Properties
  • Lubrication interval: max. 60 hours
  • Fulfilling the requirements laid out in EC 89/392 EEC
  • Compliant with EN12965 safety standard
  • CE marking available
Technical info
  • Working angle with continuous use maximum 25º
  • Working angle may only briefly be 80º
  • Max. dynamic capacity 540 rpm: 39 kW, 695 Nm
  • Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm
  • Values at working angle 10° and service life 1000 hours
  • LZ = closed length centre distance of outer intersection
Benefits
  • Longer service life than standard pto shaft
  • Lower maintenance costs
  • Faster coupling
Consists of
  • Wide angle pto-shaft, 1 sided, with guard tube
  • Declaration of conformity
  • Instruction manual
  • Delivered without yokes
  • Delivered without cross journal on the wide angle side
Locking type by tractor side
Wide angle without UJ
Attachment tractor side
n/a
Locking type by machine side
Cross
Attachment machine side
n/a
Size code
PWE 480
Length
1210 mm
Power 540 rpm
39 kW
Power 1000 rpm
61 kW
Cross joint bush diameter by tractor side - longer part
27 mm
Cross joint bush diameter by tractor side
32 mm
Cross joint length by tractor side - longer part
94 mm
Cross joint length by tractor side
76 mm
Cross joint bush diameter by machine side
32 mm
Cross joint length by machine side
76 mm
Outer tube profile
S5
Inner tube profile
S4LGA
Profile tube shape
Star
Max static torque
3000 N·m
Protection type
PG25
Original number equivalent
1113260
