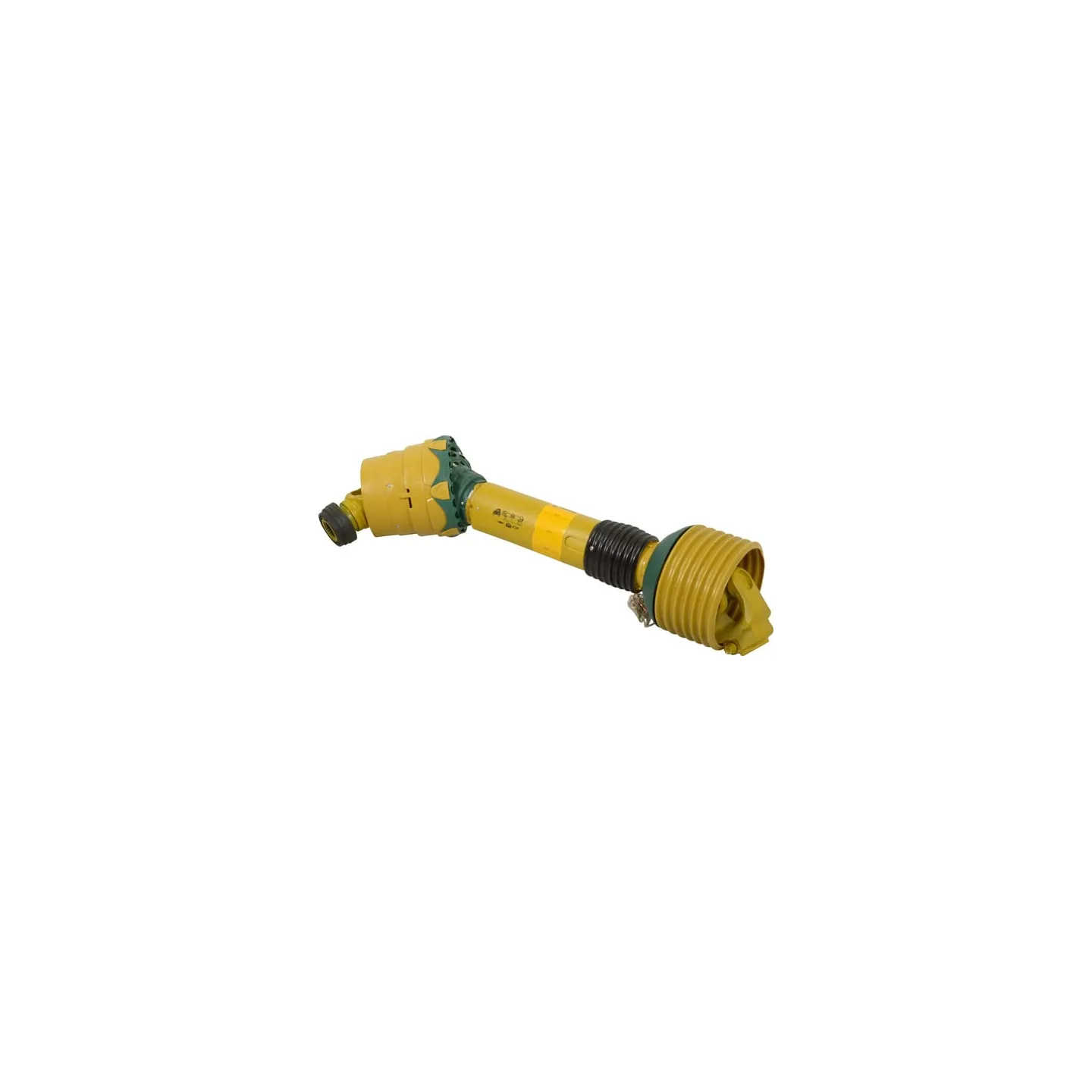

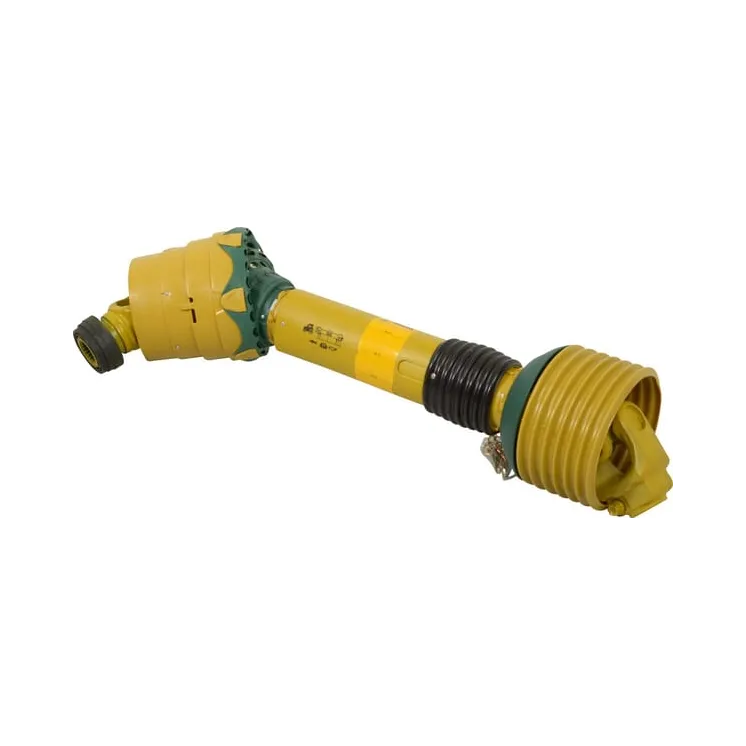

Wide angle PTO shaft PWE675121013420 Walterscheid 1600074
search
  • Wide angle PTO shaft PWE675121013420 Walterscheid 1600074

Wide angle PTO shaft PWE675121013420 1600074

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€2,897.49
Tax included
4-5 Working days
Wide angle PTO shaft PWE675121013420 Walterscheid 1600074
IN WAREHOUSE

68621

Part number
PWE675121013420
EAN
Unit
Each
Connection outside diameter by tractor side
1-3/4 Inch
Connection number of splines/grooves by tractor side
20
Locking type by tractor side
Automatic collar lock
Attachment tractor side
Quick disconnect yoke
Connection outside diameter by machine side
1-3/4 Inch
Connection number of splines/grooves by machine side
20
Locking type by machine side
Clamp cone
Attachment machine side
Clamp yoke
Size code
PWE 675
Length
1210 mm
Power 540 rpm
103 kW
Power 1000 rpm
158 kW
Cross joint bush diameter by tractor side - longer part
36 mm
Cross joint bush diameter by tractor side
42 mm
Cross joint length by tractor side - longer part
124 mm
Cross joint length by tractor side
104 mm
Cross joint bush diameter by machine side
42 mm
Cross joint length by machine side
104 mm
Clutch type
n/a
Outer tube profile
S6H
Outer tube wall thickness
5 mm
Outer tube large outside diameter
71.5 mm
Inner tube profile
S5H
Inner tube wall thickness
4.5 mm
Inner tube large outside diameter
61 mm
Profile tube shape
Star
Max static torque
7800 N·m
Protection type
PG25
Original number equivalent
1600074
  • Brand
    Walterscheid
  • Reference
    PWE675121013420
  • In stock
    3 Items
  • Condition
    New
  • CODE
    1600074
