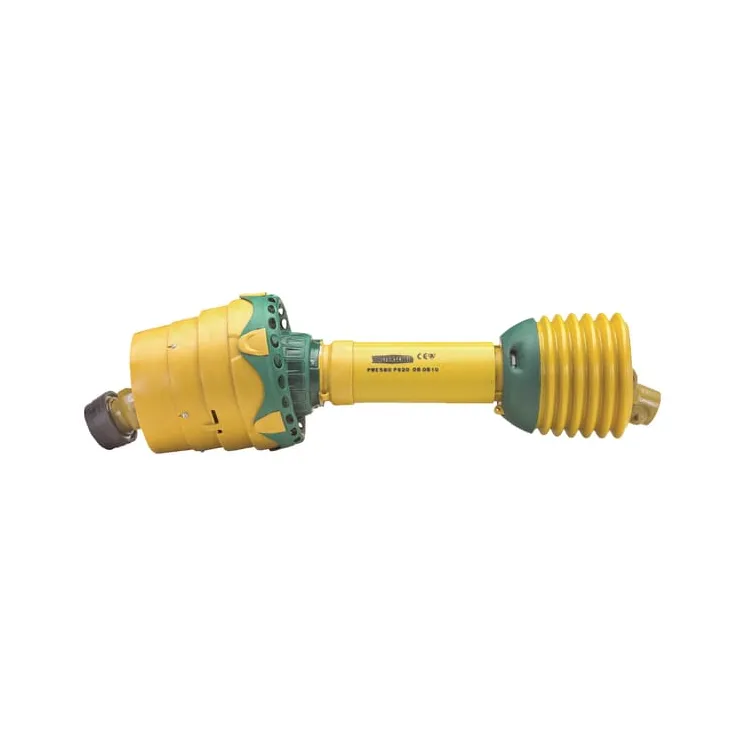

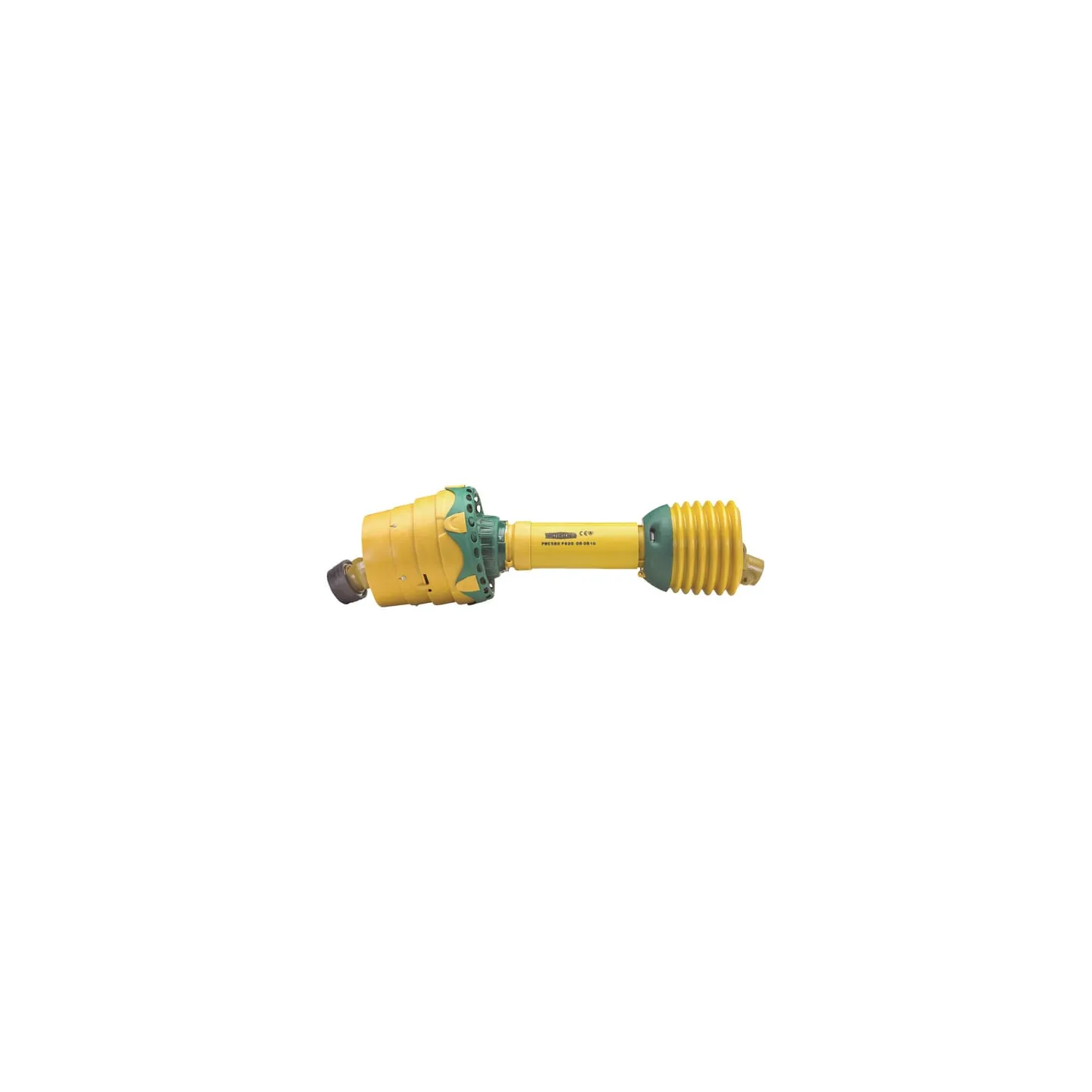

Wide angle PTO shaft PWE67586013420CB Walterscheid
search
  • Wide angle PTO shaft PWE67586013420CB Walterscheid

Wide angle PTO shaft PWE67586013420CB

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€2,359.44
Tax included
On Request
Wide angle PTO shaft PWE67586013420CB Walterscheid
ON REQUEST

68623

Part number
PWE67586013420CB
EAN
Unit
Each
Connection outside diameter by tractor side
1-3/4 Inch
Connection number of splines/grooves by tractor side
20
Locking type by tractor side
Automatic collar lock
Attachment tractor side
Quick disconnect yoke
Connection outside diameter by machine side
1-3/4 Inch
Connection number of splines/grooves by machine side
20
Locking type by machine side
Clamp cone
Attachment machine side
Clamp yoke
Size code
PWE 675
Length
860 mm
Power 540 rpm
103 kW
Power 1000 rpm
158 kW
Cross joint bush diameter by tractor side - longer part
36 mm
Cross joint bush diameter by tractor side
42 mm
Cross joint length by tractor side - longer part
124 mm
Cross joint length by tractor side
104 mm
Cross joint bush diameter by machine side
42 mm
Cross joint length by machine side
104 mm
Clutch type
n/a
Outer tube profile
S6H
Outer tube wall thickness
5 mm
Outer tube large outside diameter
71.5 mm
Inner tube profile
S5H
Inner tube wall thickness
4.5 mm
Inner tube large outside diameter
61 mm
Profile tube shape
Star
Max static torque
7800 N·m
Protection type
PG25
Original number equivalent
1601278
  • Brand
    Walterscheid
  • Reference
    PWE67586013420CB
  • Condition
    New
