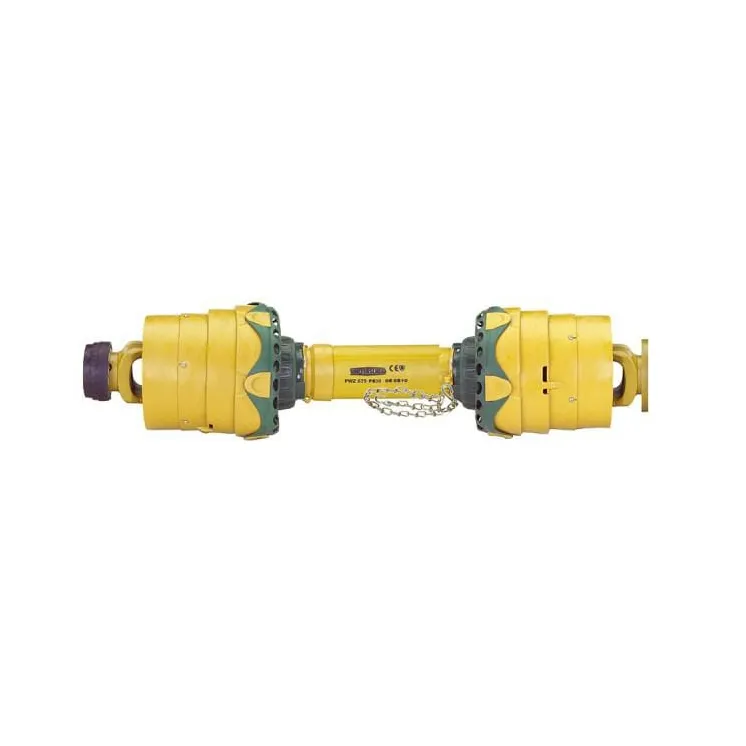

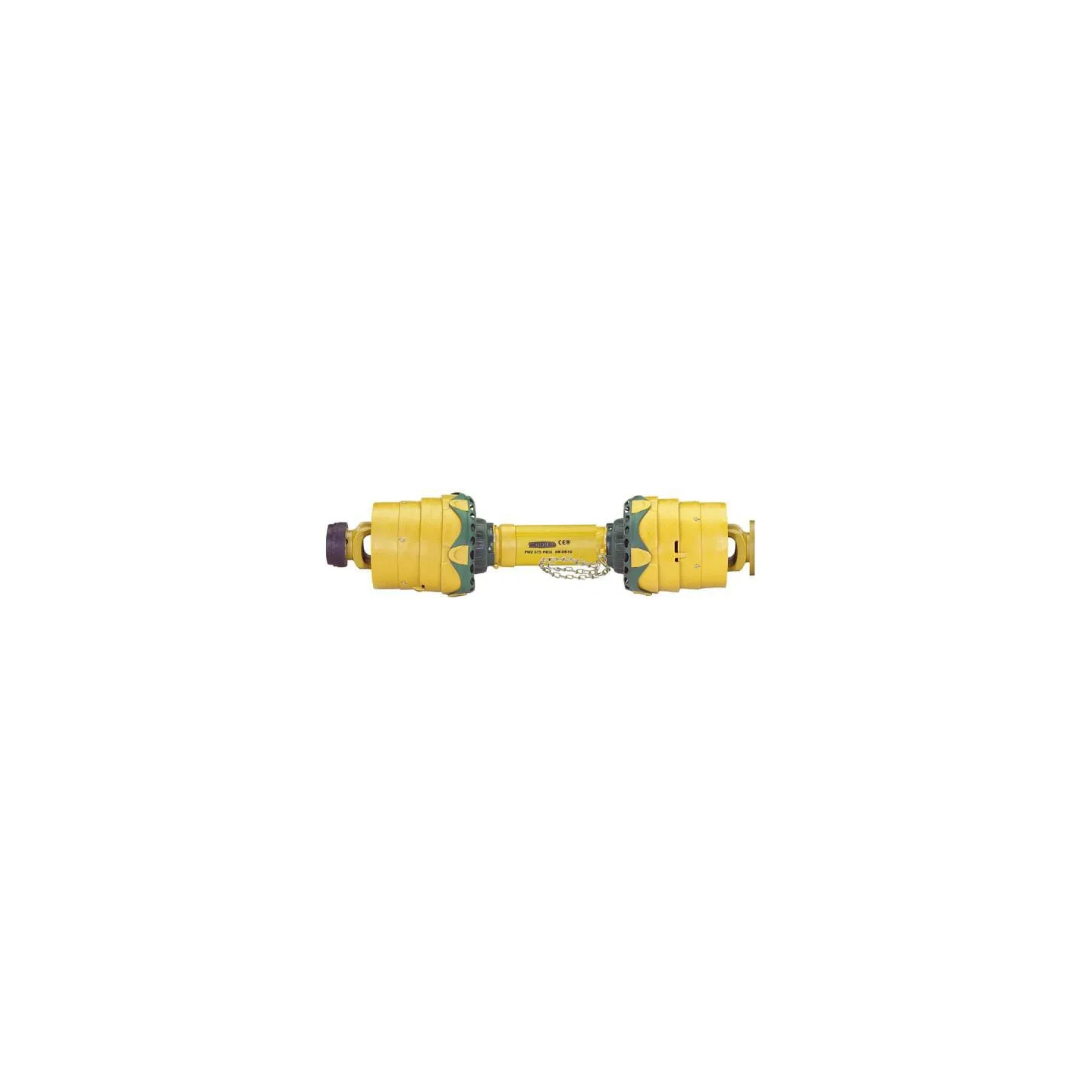

Wide angle PTO shaft PWZ675141013420FG Walterscheid 1113407
search
  • Wide angle PTO shaft PWZ675141013420FG Walterscheid 1113407

Wide angle PTO shaft PWZ675141013420FG 1113407

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€4,273.26
Tax included
On Request
Wide angle PTO shaft PWZ675141013420FG Walterscheid 1113407
ON REQUEST

68630

Part number
PWZ675141013420FG
EAN
Unit
Each
Connection outside diameter by tractor side
1-3/4 Inch
Connection number of splines/grooves by tractor side
6
Locking type by tractor side
Automatic collar lock
Attachment tractor side
Quick disconnect yoke
Locking type by machine side
Flange
Attachment machine side
Flange yoke
Size code
PWZ 675
Length
1410 mm
Power 540 rpm
103 kW
Power 1000 rpm
158 kW
Cross joint bush diameter by tractor side - longer part
36 mm
Cross joint bush diameter by tractor side
42 mm
Cross joint length by tractor side - longer part
124 mm
Cross joint length by tractor side
104 mm
Cross joint bush diameter by machine side - longer part
36 mm
Cross joint bush diameter by machine side
42 mm
Cross joint length by machine side - longer part
124 mm
Cross joint length by machine side
104 mm
Clutch type
n/a
Outer tube profile
S5
Outer tube wall thickness
4.5 mm
Outer tube large outside diameter
61 mm
Inner tube profile
S4GA
Inner tube large outside diameter
51 mm
Profile tube shape
Star
Max static torque
7800 N·m
Protection type
PG25
Original number equivalent
1113407
  • Brand
    Walterscheid
  • Reference
    PWZ675141013420FG
  • Condition
    New
  • CODE
    1113407
