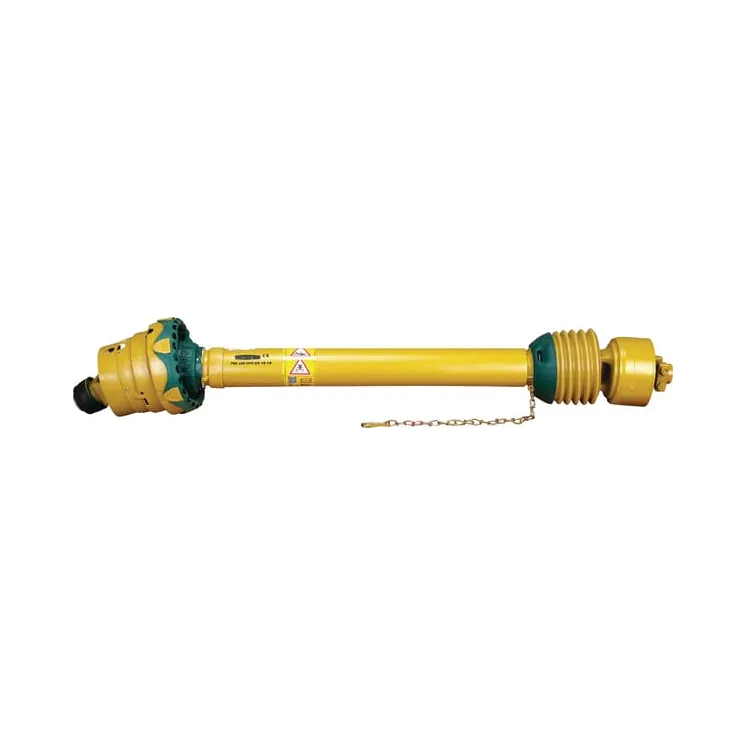

Wide angle PTO shaft PWE58014105911952 Walterscheid DS1506001
ON REQUEST

68635

  • Brand
    Walterscheid
  • Reference
    PWE58014105911952
  • Condition
    New
  • CODE
    DS1506001
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
PWE58014105911952
EAN
Unit
Each
Long description
PTO drive shafts complete 80° series PWE 580-S4LGAS5
Details
  • Robust, radial spherical plain bearing integrated in centring system
  • Profiled guard tube prevents turning.
  • Sealed profile tube prevents infiltration of dirt.
  • Quickly removable shielding
  • No safety chain on tractor side required
Application range
  • Mixing wagon
  • Slurry wagon
  • Harvesters
  • Silage wagon
Properties
  • Lubrication interval: max. 60 hours
  • Fulfilling the requirements laid out in EC 89/392 EEC
  • Compliant with EN12965 safety standard
  • CE marking available
Technical info
  • Working angle with continuous use maximum 25º
  • Working angle may only briefly be 80º
  • Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm
  • Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm
  • Values at working angle 10° and service life 1000 hours
  • LZ = closed length centre distance of outer intersection
Benefits
  • Longer service life than standard pto shaft
  • Lower maintenance costs
  • Faster coupling
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Consists of
  • Wide angle pto-shaft, 1 sided, with guard tube
  • Declaration of conformity
  • Instruction manual
Locking type by tractor side
Automatic collar lock
Attachment tractor side
Quick disconnect yoke
Connection outside diameter by machine side
1-3/4 Inch
Connection number of splines/grooves by machine side
6
Locking type by machine side
Clamp bridge
Attachment machine side
Cam type cut out clutch
Size code
PWE 580
Length
1410 mm
Power 540 rpm
76 kW
Power 1000 rpm
117 kW
Cross joint bush diameter by tractor side - longer part
32 mm
Cross joint bush diameter by tractor side
36 mm
Cross joint length by tractor side - longer part
106 mm
Cross joint length by tractor side
89 mm
Cross joint bush diameter by machine side
36 mm
Cross joint length by machine side
89 mm
Clutch type
K68/22R
Max. clutch torque
2100 N·m
Outer tube profile
S5
Outer tube wall thickness
4.5 mm
Outer tube large outside diameter
61 mm
Inner tube profile
S4GA
Inner tube large outside diameter
51 mm
Profile tube shape
Star
Max static torque
6000 N·m
Protection type
PG25
Original number equivalent
1602559
