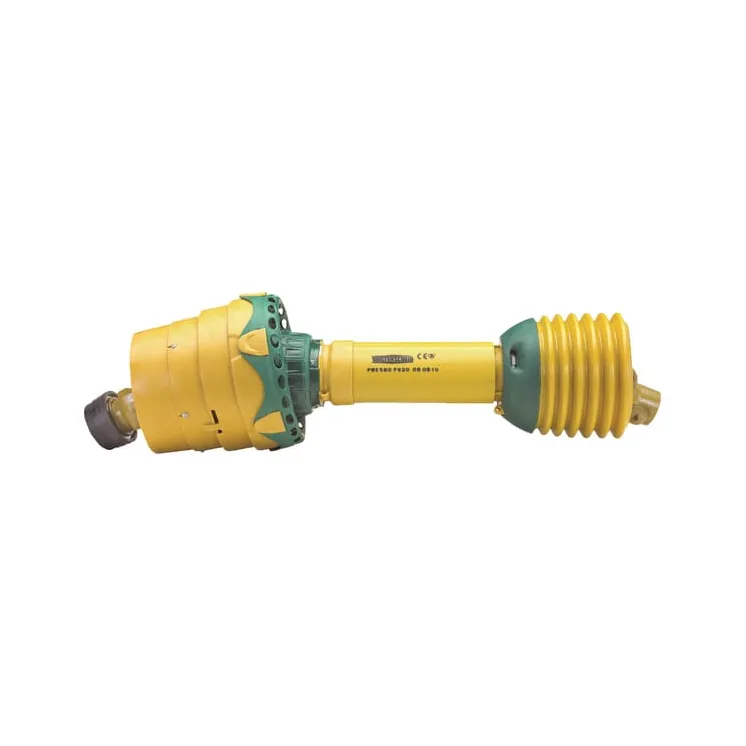

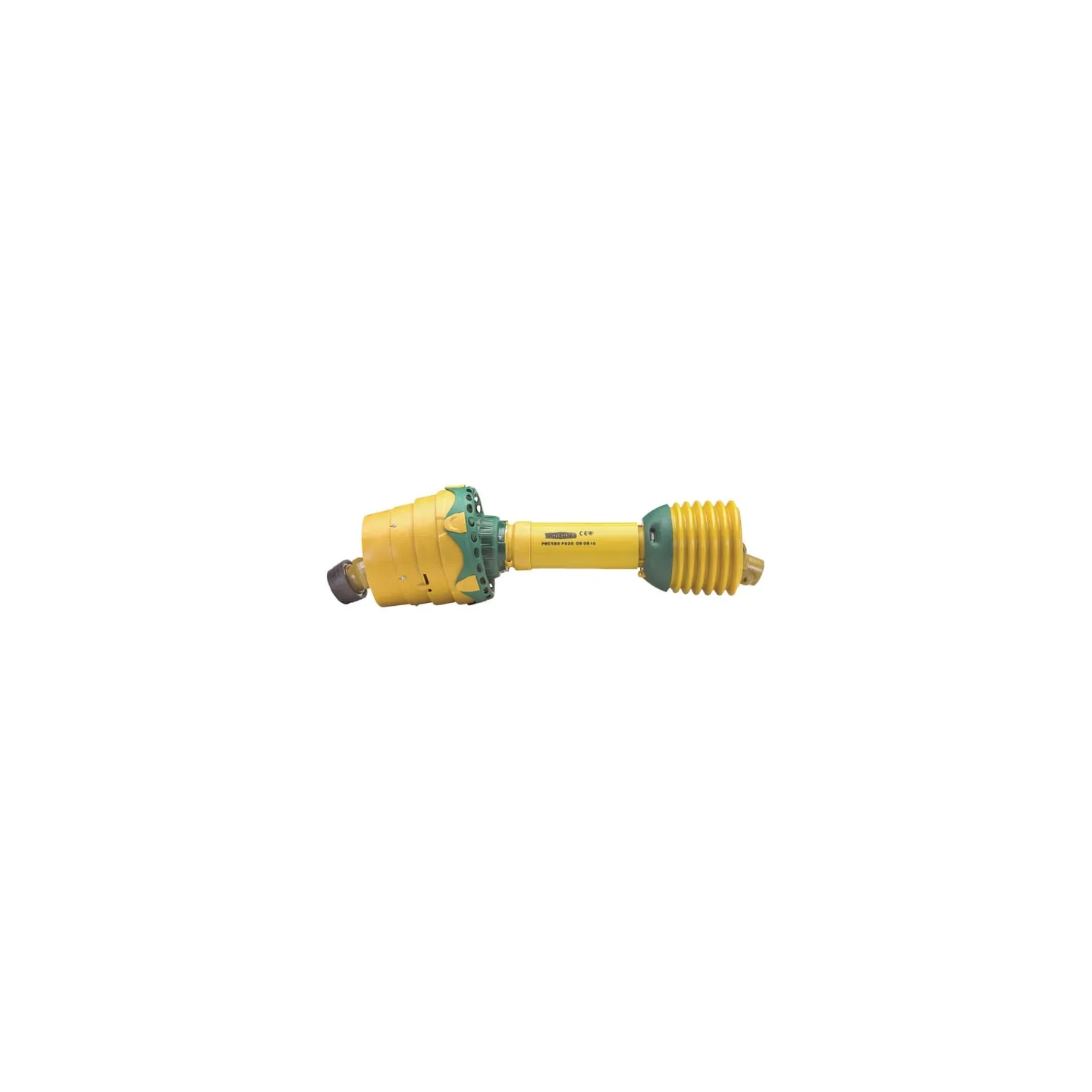

Wide angle PTO shaft PWE48012105714218 Walterscheid 1694688

Wide angle PTO shaft PWE48012105714218 1694688

Name: Wide angle PTO shaft PWE48012105714218 1694688
Brand: Walterscheid
SKU: PWE48012105714218
Price: 1751.41 EUR
Availability: BackOrder

Payment options

€1,751.41

Tax included

On Request

Wide angle PTO shaft PWE48012105714218 Walterscheid 1694688

ON REQUEST

ID: 68640

Description

Part number	PWE48012105714218
EAN
Unit	Each
Details	Robust, radial spherical plain bearing integrated in centring system Profiled guard tube prevents turning. Sealed profile tube prevents infiltration of dirt. Quickly removable shielding No safety chain on tractor side required
Application range	Mixing wagon Slurry wagon Harvesters Silage wagon
Properties	Tractor side 1-3/8" (6) QS collar kit Device side 1-3/8" (6) slide pin Lubrication interval: max. 60 hours Fulfilling the requirements laid out in EC 89/392 EEC Compliant with EN12965 safety standard CE marking available
Technical info	Working angle with continuous use maximum 25º Working angle may only briefly be 80º Max. dynamic capacity 540 rpm: 39 kW, 695 Nm Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm Values at working angle 10° and service life 1000 hours LZ = closed length centre distance of outer intersection
Benefits	Longer service life than standard pto shaft Lower maintenance costs Faster coupling
Consists of	Wide angle pto-shaft, 1 sided, with guard tube Declaration of conformity Instruction manual
Attachment machine side	Shear bolt clutch
Size code	PWE 480
Length	1210 mm
Cross joint bush diameter by tractor side - longer part	27 mm
Cross joint bush diameter by tractor side	32 mm
Cross joint length by tractor side - longer part	94 mm
Cross joint length by tractor side	76 mm
Cross joint bush diameter by machine side	32 mm
Cross joint length by machine side	76 mm
Clutch type	KB61/20
Max. clutch torque	2500 N·m
Protection type	PG20
Original number equivalent	1694688
