PTO shaft without yokes W2600 L: 860mm, W2600860OG Walterscheid
search
  • PTO shaft without yokes W2600 L: 860mm, W2600860OG Walterscheid

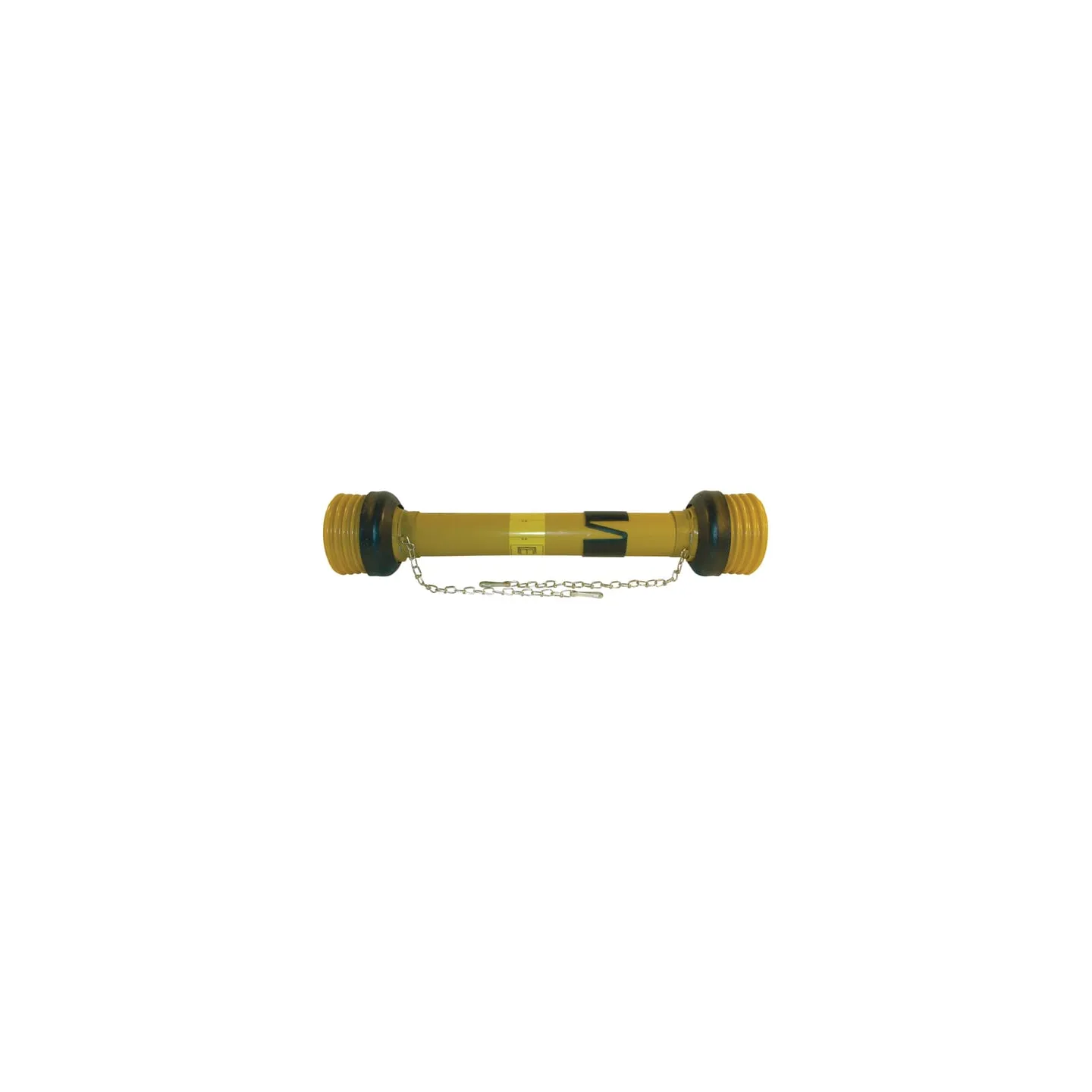

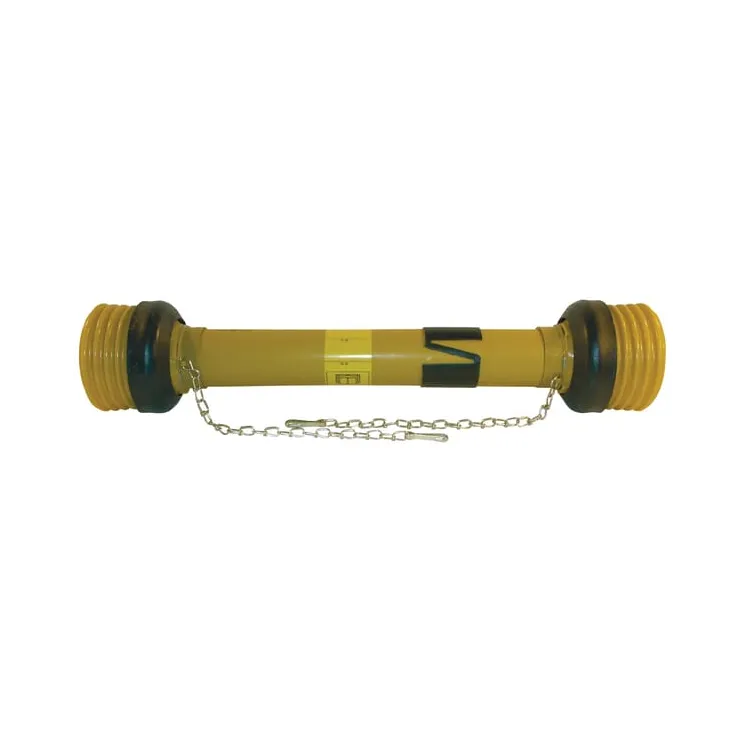

PTO shaft without yokes W2600 L: 860mm, W2600860OG

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1,199.13
Tax included
4-5 Working days
PTO shaft without yokes W2600 L: 860mm, W2600860OG Walterscheid
IN WAREHOUSE

69928

Part number
W2600860OG
EAN8435194174145
Unit
Each
Application range
  • Heavy-duty soil cultivating machinery
  • Wood shredders
  • Stump grinders
Properties
  • Lubrication frequency from 50 to 100 hours
  • Fulfilling the requirements laid out in EC 89/392 EEC
  • Fulfilling the safety standard EN12965
  • CE marking available
Technical info
  • See Walterscheid instruction manual
  • Max. dynamic capacity 540 rpm: 79 kW, 1400 Nm
  • Max. dynamic capacity 1000 rpm: 122 kW, 1165 Nm
  • Values at working angle 5° and service life 1000 hours
  • LZ = slid in length in mm, from intersection to intersection
Consists of
  • PTO shaft with shielding
  • Declaration of conformity
  • Instruction manual
Size code
W2600
Length
860 mm
Cross joint bush diameter by tractor side
42 mm
Cross joint length by tractor side
104 mm
Cross joint bush diameter by machine side
42 mm
Cross joint length by machine side
104 mm
Outer tube profile
S6
Inner tube profile
S5H
Max static torque
7800 N·m
Protection type
SD35
Original number equivalent
1113133
  • Brand
    Walterscheid
  • Reference
    W2600860OG
  • In stock
    1 Item
  • Condition
    New
  • EAN
    8435194174145
