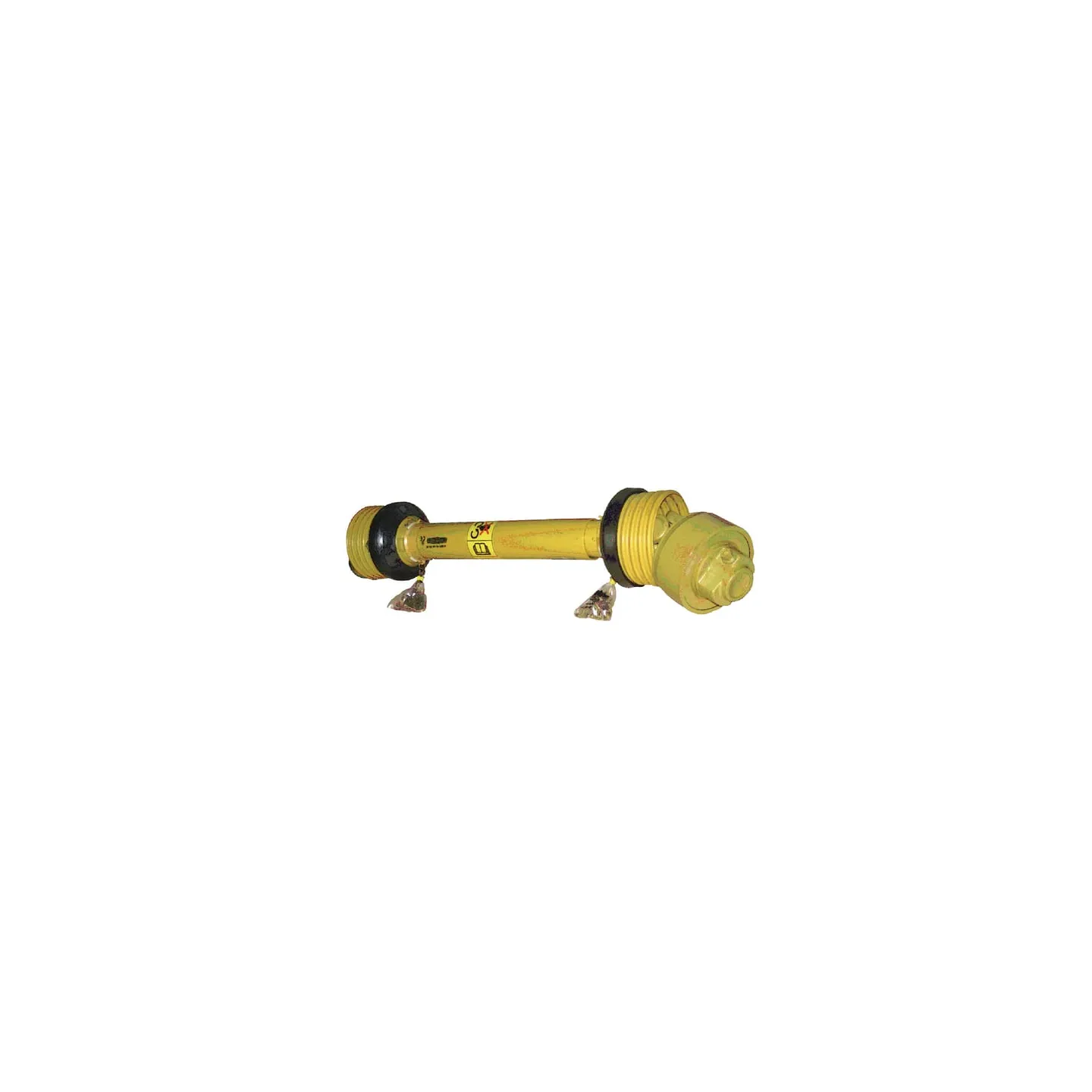

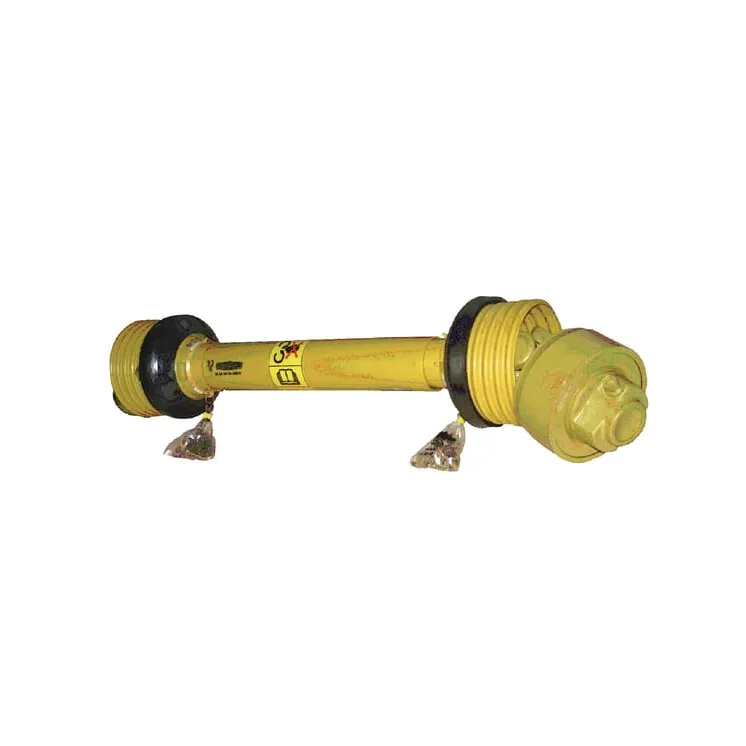

PTO shaft W2500 L: 710mm with cam type cut out clutch, W25007105911743 Walterscheid
IN WAREHOUSE

69934

Part number
W25007105911743
EAN
Unit
Each
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Locking type by tractor side
Collar lock
Attachment tractor side
Quick disconnect yoke
Connection outside diameter by machine side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Locking type by machine side
Clamp cone
Attachment machine side
Cam type cut out clutch
Size code
W2500
Length
710 mm
Power 540 rpm
66 kW
Power 1000 rpm
102 kW
Cross joint bush diameter by tractor side
36 mm
Cross joint length by tractor side
89 mm
Cross joint bush diameter by machine side
36 mm
Cross joint length by machine side
89 mm
Clutch type
K64/22R
Max. clutch torque
2200 N·m
Outer tube profile
S5
Outer tube wall thickness
4.5 mm
Outer tube large outside diameter
61 mm
Inner tube profile
S4
Inner tube large outside diameter
51 mm
Profile tube shape
Star
Max static torque
6000 N·m
Protection type
SD25
Original number equivalent
1691387
  • Brand
    Walterscheid
  • Reference
    W25007105911743
  • In stock
    2 Items
  • Condition
    New
