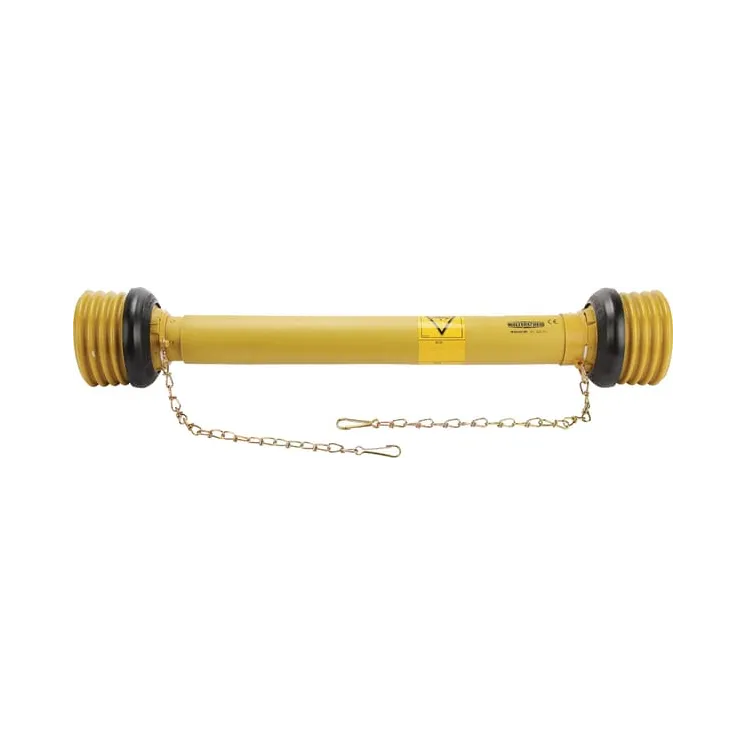

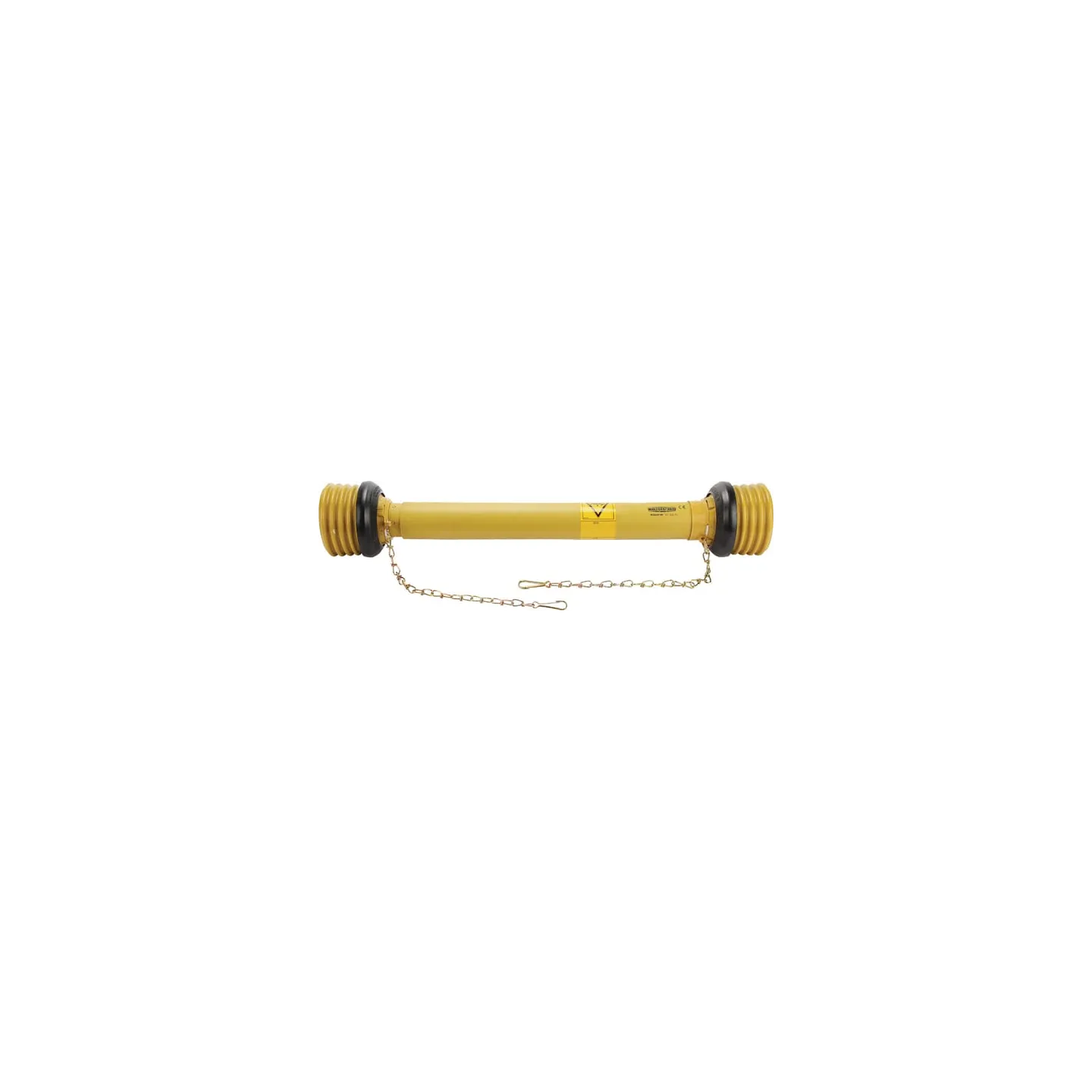

PTO shaft without yokes W2400 L: 860mm, W2400860OG Walterscheid 1113127
search
  • PTO shaft without yokes W2400 L: 860mm, W2400860OG Walterscheid 1113127

PTO shaft without yokes W2400 L: 860mm, W2400860OG 1113127

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€392.02
Tax included
4-5 Working days
PTO shaft without yokes W2400 L: 860mm, W2400860OG Walterscheid 1113127
IN WAREHOUSE

69935

Part number
W2400860OG
EAN
Unit
Each
Application range
  • Mowers
  • Harvesters
  • Soil cultivating machinery
Properties
  • Lubrication frequency from 50 to 100 hours
  • Fulfils EC 89/392 EEC requirements
  • Complies with EN12965 safety standard
  • CE marking available
Technical info
  • See Walterscheid instruction manual
  • Max. dynamic capacity 540 rpm: 39 kW, 695 Nm
  • Max. dynamic capacity 1,000 rpm: 61 kW, 580 Nm
  • Values at working angle 5° and service life 1000 hours
  • LZ = slid-in length in mm, from intersection to intersection
Consists of
  • Pto shaft with guard tube
  • Declaration of conformity
  • Instruction manual
  • Delivery without yokes
Locking type by tractor side
Cross
Locking type by machine side
Cross
Size code
W2400
Length
860 mm
Cross joint bush diameter by tractor side
32 mm
Cross joint length by tractor side
76 mm
Cross joint bush diameter by machine side
32 mm
Cross joint length by machine side
76 mm
Outer tube profile
2a
Inner tube profile
1b
Max static torque
3800 N·m
Protection type
SD25
Original number equivalent
1800083
  • Brand
    Walterscheid
  • Reference
    W2400860OG
  • In stock
    5 Items
  • Condition
    New
  • CODE
    1113127
