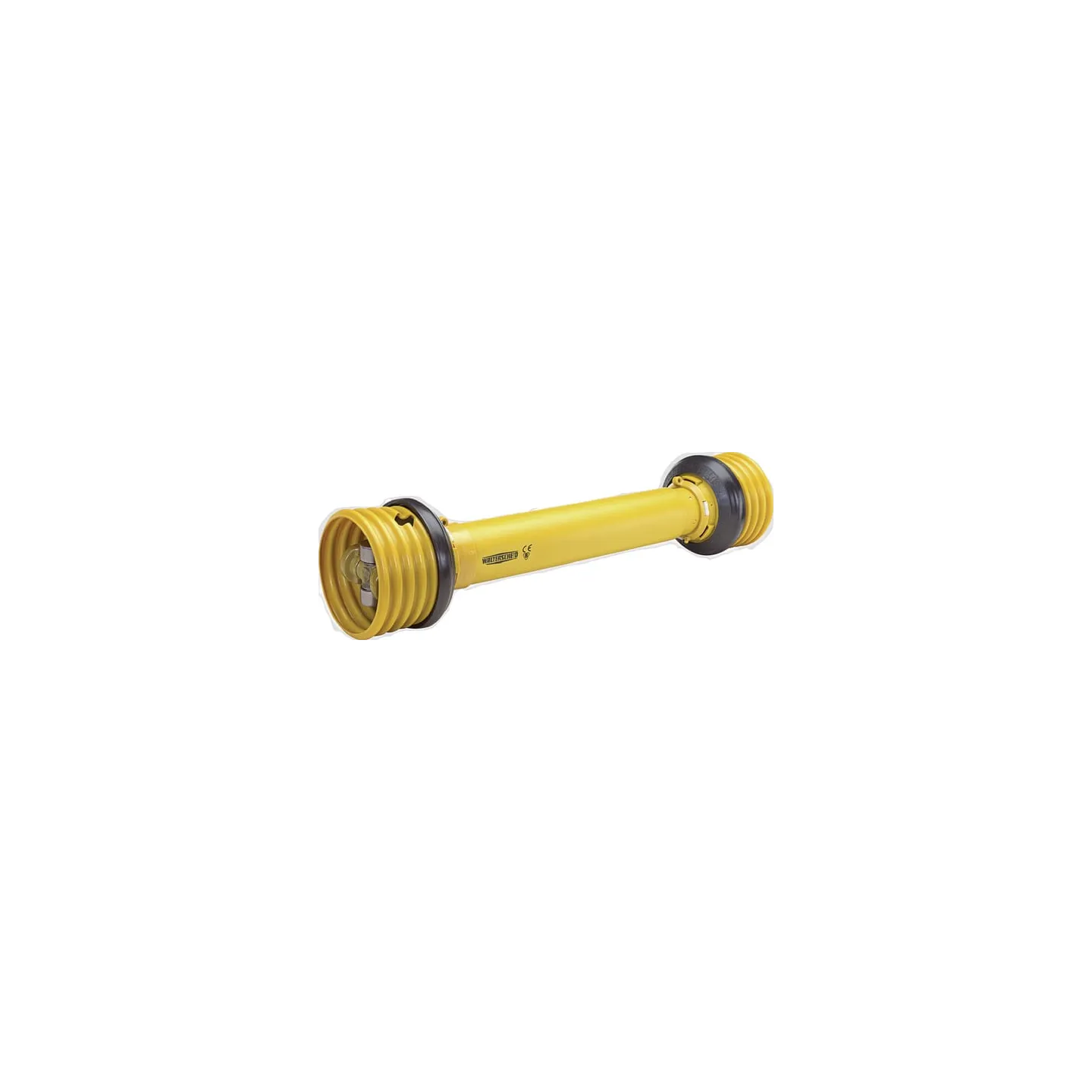

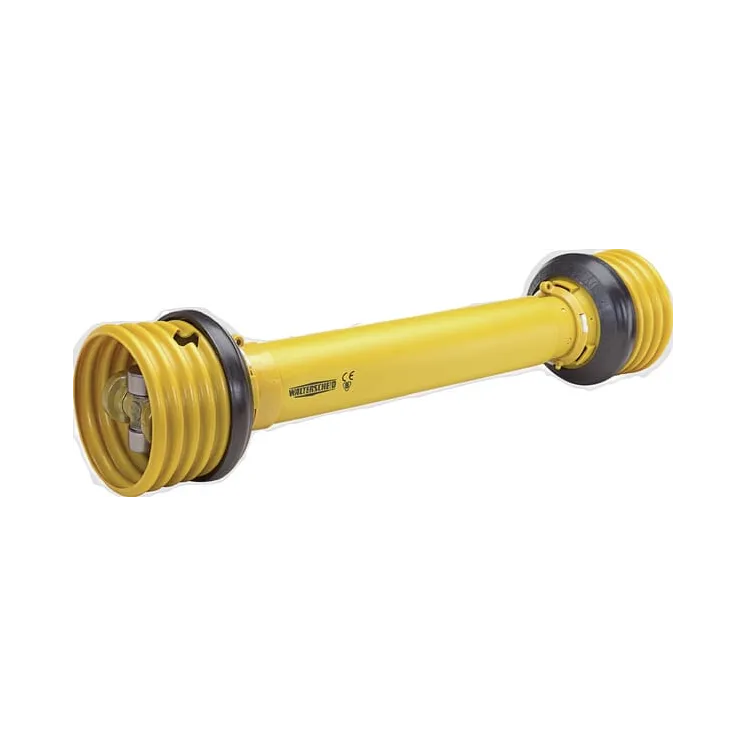

PTO shaft without yokes W2100 L: 860mm, W2100860OG Walterscheid 1113119
search
  • PTO shaft without yokes W2100 L: 860mm, W2100860OG Walterscheid 1113119

PTO shaft without yokes W2100 L: 860mm, W2100860OG 1113119

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€308.88
Tax included
4-5 Working days
PTO shaft without yokes W2100 L: 860mm, W2100860OG Walterscheid 1113119
IN WAREHOUSE

69942

Part number
W2100860OG
EAN
Unit
Each
Long description
Series W2300 without yokes
Application range
  • Mowers
  • Harvesters
  • Seeders
Properties
  • Lubrication frequency from 50 to 100 hours
  • Fulfils EC 89/392 EEC requirements
  • Complies with EN12965 safety standard
  • CE marking available
Technical info
  • See Walterscheid instruction manual
  • Max. dynamic capacity 540 rpm: 28 kW, 500 Nm
  • Max. dynamic capacity 1,000 rpm: 44 kW, 415 Nm
  • Values at working angle 5° and service life 1000 hours
  • LZ = slid-in length in mm, from intersection to intersection
Consists of
  • Pto shaft with guard tube
  • Declaration of conformity
  • Instruction manual
  • Delivery without yokes
Locking type by tractor side
Cross
Attachment tractor side
n/a
Locking type by machine side
Cross
Attachment machine side
n/a
Size code
W2100
Length
860 mm
Power 540 rpm
12 kW
Power 1000 rpm
18 kW
Cross joint bush diameter by tractor side
22 mm
Cross joint length by tractor side
55 mm
Cross joint bush diameter by machine side
22 mm
Cross joint length by machine side
55 mm
Outer tube profile
Oa
Inner tube profile
OOcH
Profile tube shape
Lemon
Max static torque
600 N·m
Protection type
SD05
Original number equivalent
1113119
  • Brand
    Walterscheid
  • Reference
    W2100860OG
  • In stock
    5 Items
  • Condition
    New
  • CODE
    1113119
