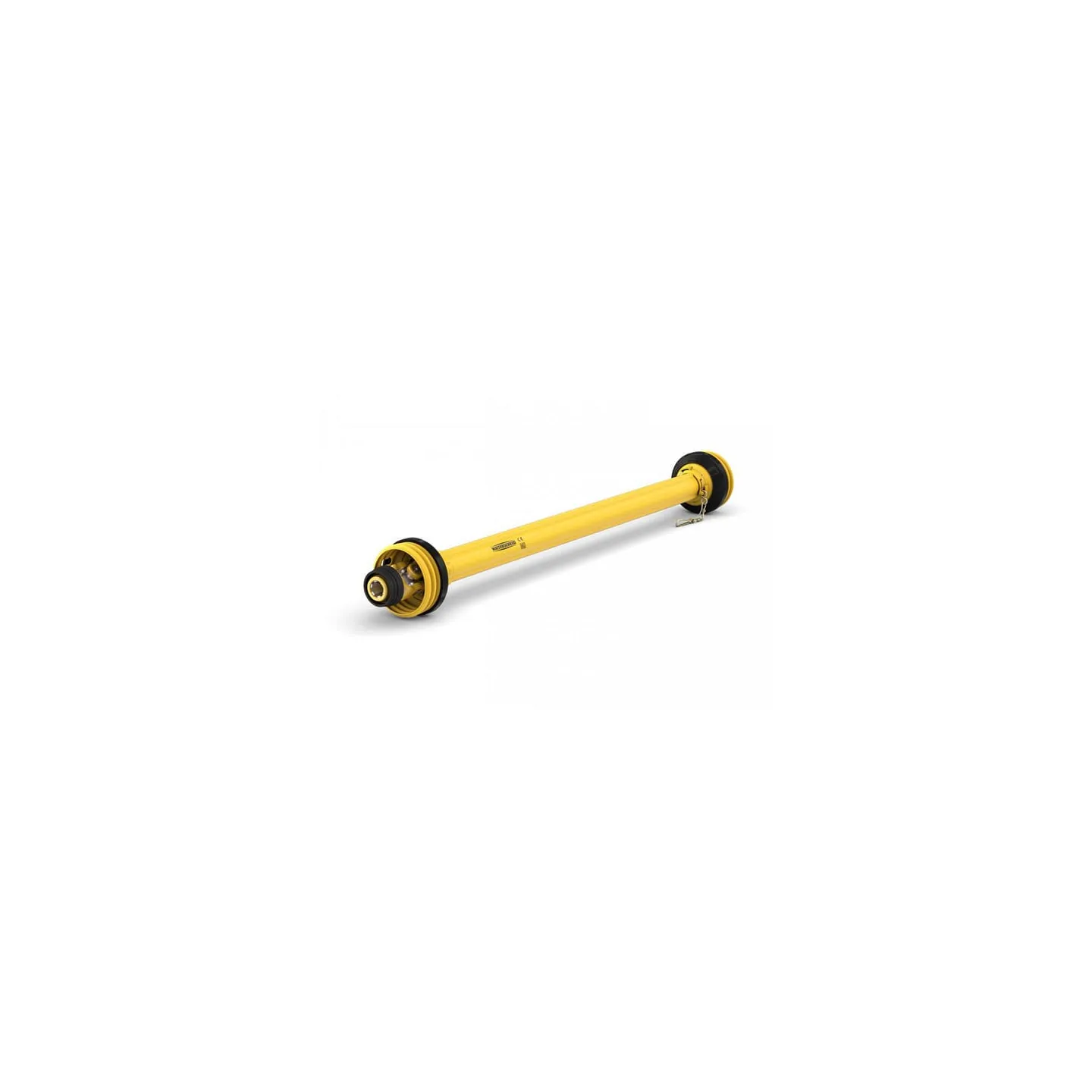

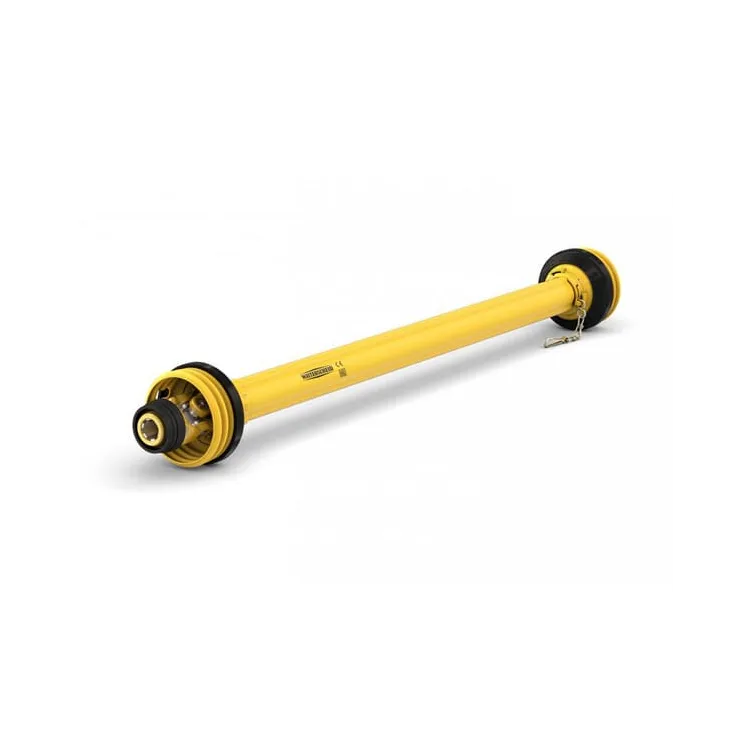

PTO shaft W2400 L: 860mm, W2400860S4LHS5

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€611.91
Tax included
4-5 Working days
PTO shaft W2400 L: 860mm, W2400860S4LHS5 Walterscheid
IN WAREHOUSE

69945

Part number
W2400860S4LHS5
EAN8432970199118
Unit
Each
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Locking type by tractor side
Collar lock
Attachment tractor side
Quick disconnect yoke
Connection outside diameter by machine side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Locking type by machine side
Collar lock
Attachment machine side
Quick disconnect yoke
Size code
W2400
Length
860 mm
Power 540 rpm
39 kW
Power 1000 rpm
61 kW
Cross joint bush diameter by tractor side
32 mm
Cross joint length by tractor side
76 mm
Cross joint bush diameter by machine side
32 mm
Cross joint length by machine side
76 mm
Clutch type
n/a
Outer tube profile
S5
Outer tube wall thickness
4.5 mm
Outer tube large outside diameter
61 mm
Inner tube profile
S4LH
Inner tube wall thickness
6 mm
Inner tube large outside diameter
51 mm
Profile tube shape
Star
Max static torque
4000 N·m
Protection type
ST25
Original number equivalent
1800064
  • Brand
    Walterscheid
  • Reference
    W2400860S4LHS5
  • In stock
    5 Items
  • Condition
    New
  • EAN
    8432970199118
