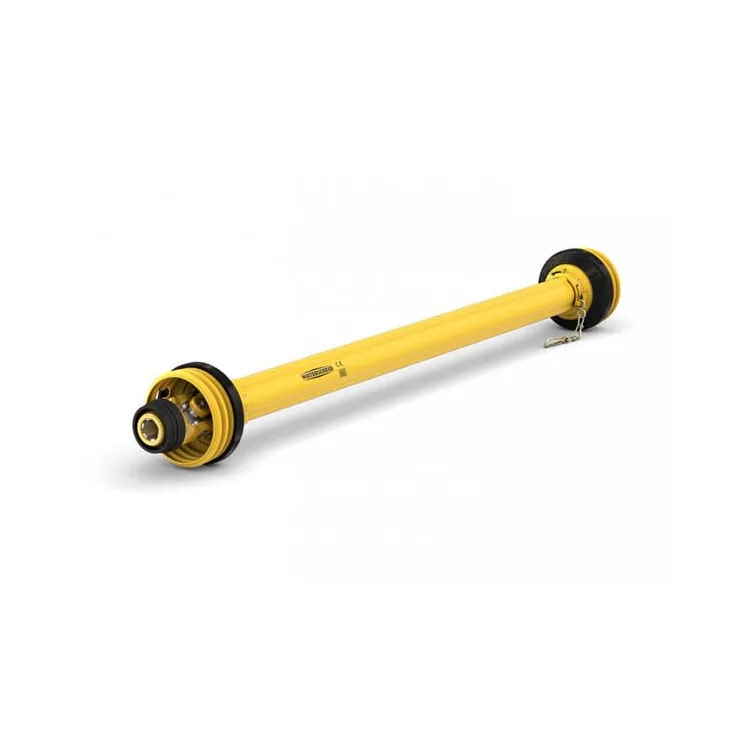

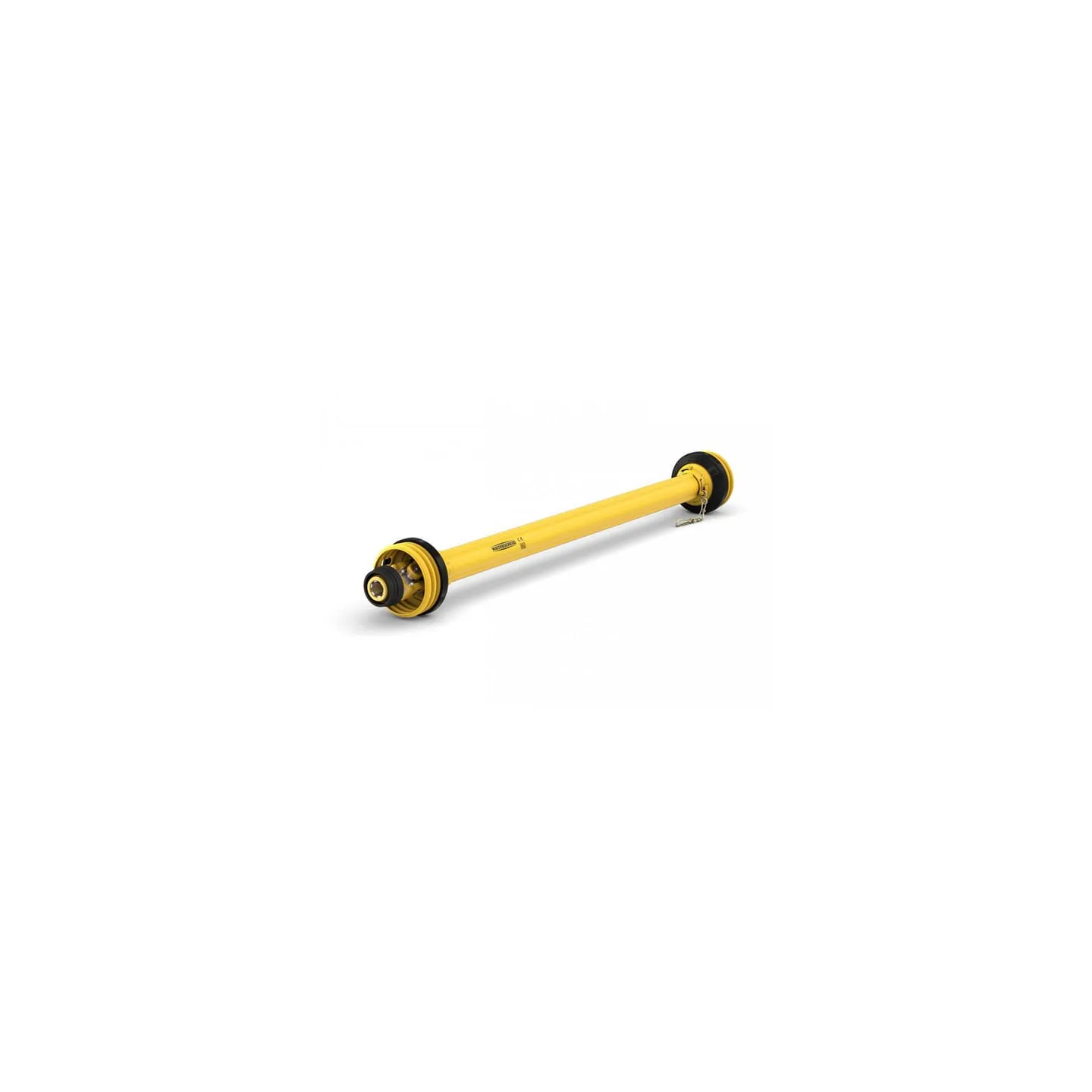

PTO shaft W2600 L: 1010mm, W26001010

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1,364.24
Tax included
4-5 Working days
PTO shaft W2600 L: 1010mm, W26001010 Walterscheid
IN WAREHOUSE

69947

  • Brand
    Walterscheid
  • Reference
    W26001010
  • In stock
    5 Items
  • Condition
    New
  • EAN
    8435194030175
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
W26001010
EAN8435194030175
Unit
Each
Application range
  • Heavy-duty soil cultivating machinery
  • Wood shredders
  • Stump grinders
Properties
  • Tension side 1-3/8" (6) shaft collar kit
  • Machine side 1-3/8" (6) Clamp cone
  • Lubrication frequency from 50 to 100 hours
  • Fulfilling the requirements laid out in EC 89/392 EEC
  • Fulfilling the safety standard EN12965
  • CE marking available
Technical info
  • See Walterscheid instruction manual
  • Max. dynamic capacity 540 rpm: 79 kW, 1400 Nm
  • Max. dynamic capacity 1000 rpm: 122 kW, 1165 Nm
  • Values at working angle 5° and service life 1000 hours
  • LZ = slid in length in mm, from intersection to intersection
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Consists of
  • PTO shaft with shielding
  • Declaration of conformity
  • Instruction manual
Locking type by tractor side
Automatic collar lock
Attachment tractor side
Quick disconnect yoke
Connection outside diameter by machine side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Locking type by machine side
Clamp cone
Attachment machine side
Clamp yoke
Size code
W2600
Length
1010 mm
Power 540 rpm
79 kW
Power 1000 rpm
122 kW
Cross joint bush diameter by tractor side
42 mm
Cross joint length by tractor side
104 mm
Cross joint bush diameter by machine side
42 mm
Cross joint length by machine side
104 mm
Clutch type
n/a
Outer tube profile
S6
Outer tube wall thickness
5 mm
Outer tube large outside diameter
71.5 mm
Inner tube profile
S5H
Inner tube wall thickness
4.5 mm
Inner tube large outside diameter
61 mm
Profile tube shape
Star
Max static torque
7800 N·m
Protection type
SD35
Original number equivalent
1800073
