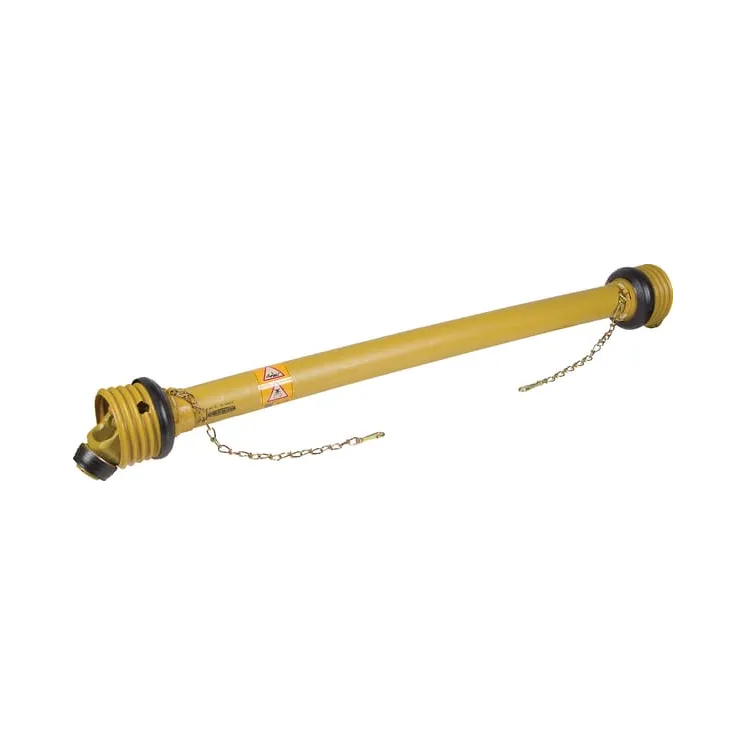

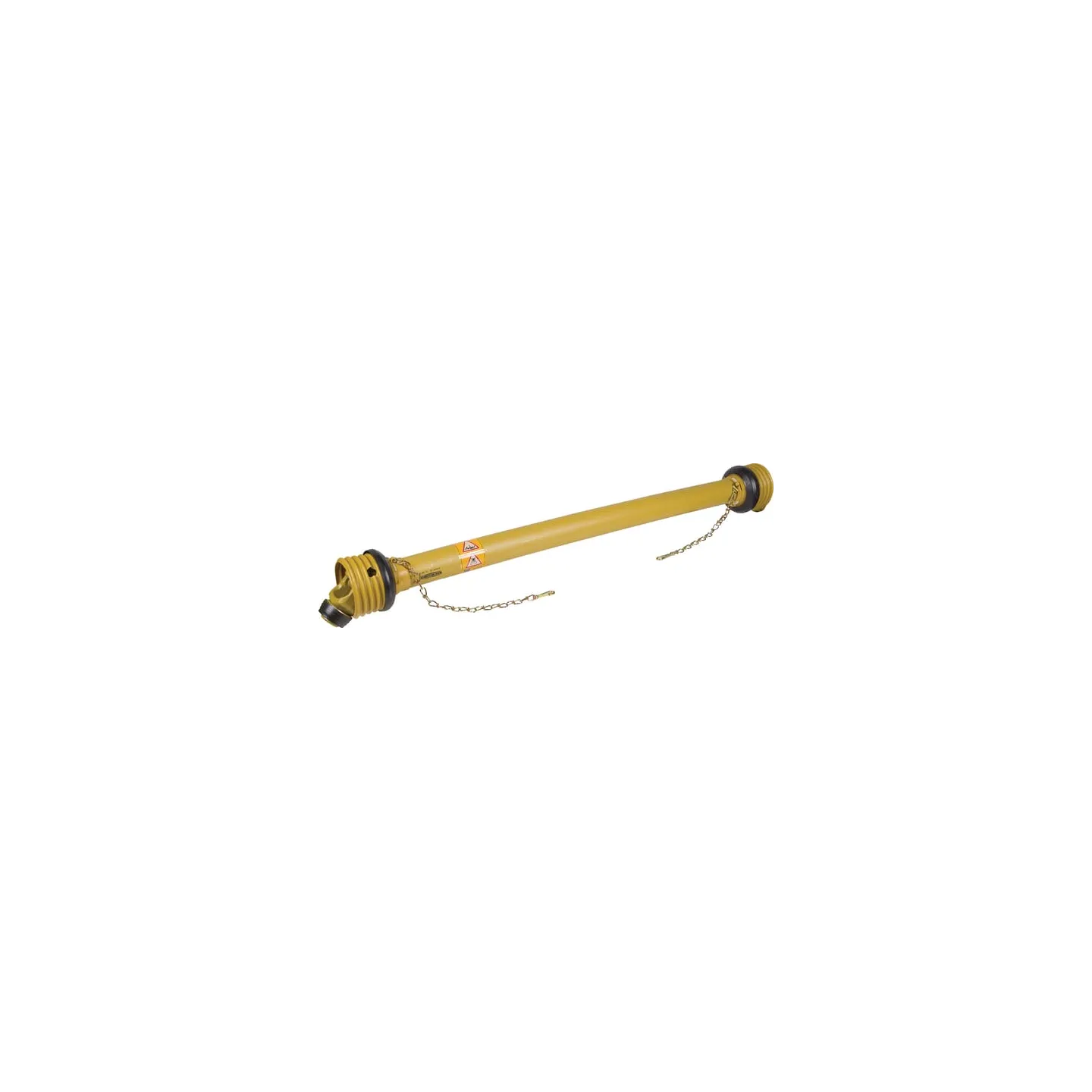

PTO shaft W2300 L: 1410mm, W23001410 Walterscheid
search
  • PTO shaft W2300 L: 1410mm, W23001410 Walterscheid

PTO shaft W2300 L: 1410mm, W23001410

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€455.67
Tax included
4-5 Working days
PTO shaft W2300 L: 1410mm, W23001410 Walterscheid
IN WAREHOUSE

69950

  • Brand
    Walterscheid
  • Reference
    W23001410
  • In stock
    2 Items
  • Condition
    New
  • EAN
    8432970198241
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
W23001410
EAN8432970198241
Unit
Each
Application range
  • Mower
  • Harvesters
  • Seeders
Properties
  • Tension side 1-3/8" (6) shaft collar kit
  • Machine side 1-3/8" (6) slide pin
  • Lubrication frequency from 50 to 100 hours
  • Fulfilling the requirements laid out in EC 89/392 EEC
  • Fulfilling the safety standard EN12965
  • CE marking available
Technical info
  • See Walterscheid instruction manual
  • Max. dynamic capacity 540 rpm: 28 kW, 500 Nm
  • Max. dynamic capacity 1000 rpm: 44 kW, 415 Nm
  • Values at working angle 5° and service life 1000 hours
  • LZ = slid in length in mm, from intersection to intersection
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Consists of
  • PTO shaft with shielding
  • Declaration of conformity
  • Instruction manual
Locking type by tractor side
Collar lock
Attachment tractor side
Quick disconnect yoke
Connection outside diameter by machine side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Locking type by machine side
Collar lock
Attachment machine side
Quick disconnect yoke
Size code
W2300
Length
1410 mm
Power 540 rpm
28 kW
Power 1000 rpm
44 kW
Cross joint bush diameter by tractor side
27 mm
Cross joint length by tractor side
75 mm
Cross joint bush diameter by machine side
27 mm
Cross joint length by machine side
75 mm
Clutch type
n/a
Outer tube profile
1
Outer tube wall thickness
3 mm
Outer tube large outside diameter
48 mm
Inner tube profile
Ov
Inner tube wall thickness
4 mm
Inner tube large outside diameter
40 mm
Profile tube shape
Lemon
Max static torque
2500 N·m
Protection type
SD15
Original number equivalent
1610073
Additional info
*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
