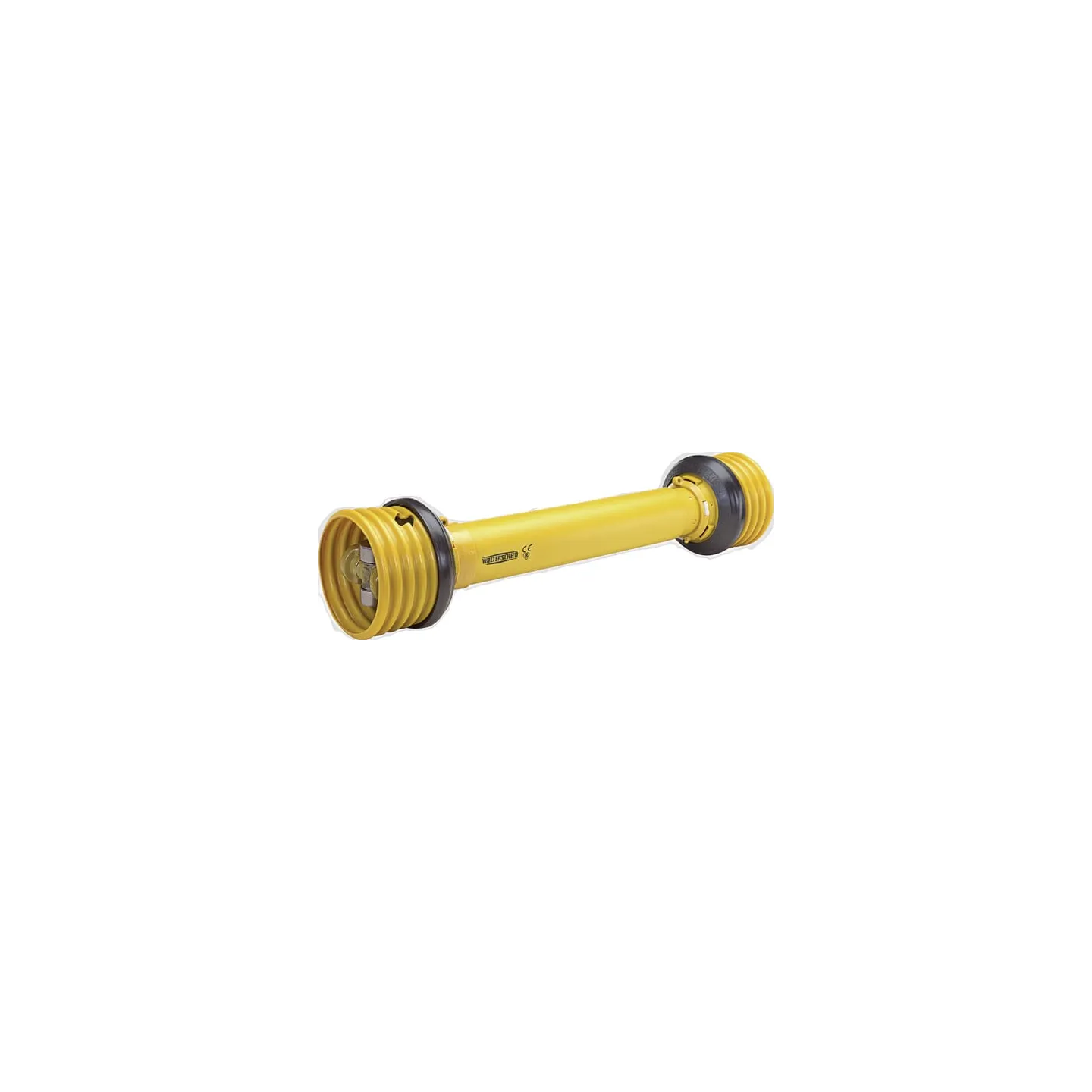

PTO shaft without yokes W2300 L: 860mm, W23008601B2AOG Walterscheid 1113125
search
  • PTO shaft without yokes W2300 L: 860mm, W23008601B2AOG Walterscheid 1113125

PTO shaft without yokes W2300 L: 860mm, W23008601B2AOG 1113125

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€398.39
Tax included
4-5 Working days
PTO shaft without yokes W2300 L: 860mm, W23008601B2AOG Walterscheid 1113125
IN WAREHOUSE

69951

Part number
W23008601B2AOG
EAN
Unit
Each
Application range
  • Mowers
  • Harvesters
  • Seeders
Properties
  • Lubrication frequency from 50 to 100 hours
  • Fulfils EC 89/392 EEC requirements
  • Complies with EN12965 safety standard
  • CE marking available
Technical info
  • See Walterscheid instruction manual
  • Max. dynamic capacity 540 rpm: 28 kW, 500 Nm
  • Max. dynamic capacity 1,000 rpm: 44 kW, 415 Nm
  • Values at working angle 5° and service life 1000 hours
  • LZ = slid-in length in mm, from intersection to intersection
Consists of
  • Pto shaft with guard tube
  • Declaration of conformity
  • Instruction manual
  • Delivery without yokes
Locking type by tractor side
Cross
Attachment tractor side
n/a
Locking type by machine side
Cross
Attachment machine side
n/a
Size code
W2300
Length
860 mm
Power 540 rpm
28 kW
Power 1000 rpm
44 kW
Cross joint bush diameter by tractor side
27 mm
Cross joint length by tractor side
75 mm
Cross joint bush diameter by machine side
27 mm
Cross joint length by machine side
75 mm
Outer tube profile
2a
Inner tube profile
1b
Profile tube shape
Lemon
Max static torque
2300 N·m
Protection type
SD25
Original number equivalent
1800081
  • Brand
    Walterscheid
  • Reference
    W23008601B2AOG
  • In stock
    1 Item
  • Condition
    New
  • CODE
    1113125
