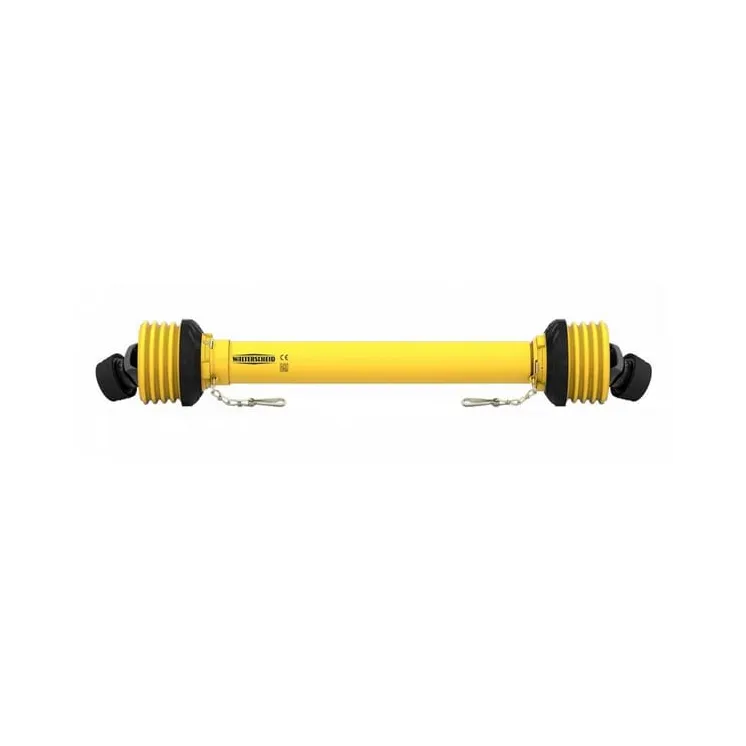

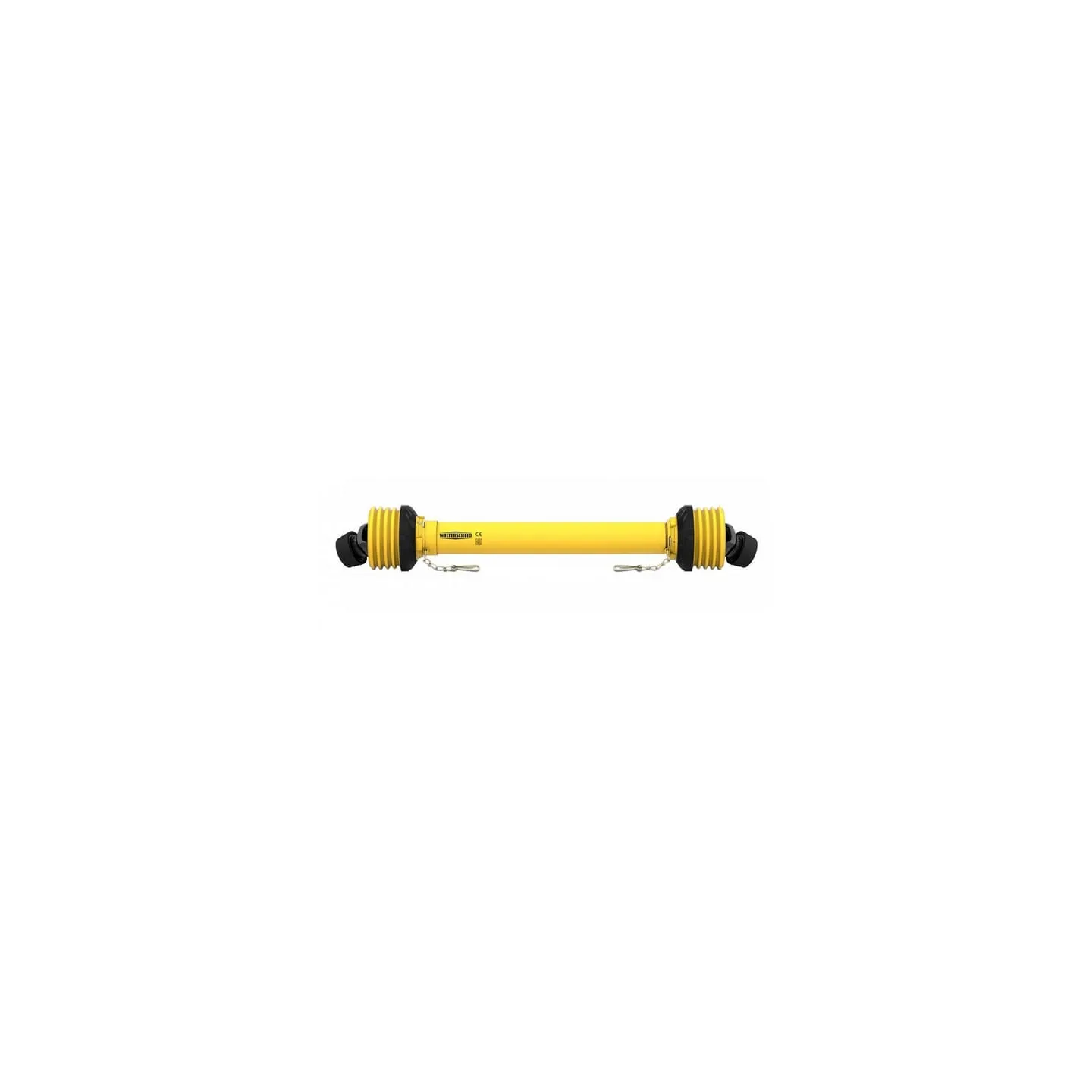

PTO shaft W200E L: 710mm, W200E710 Walterscheid
search
  • PTO shaft W200E L: 710mm, W200E710 Walterscheid

PTO shaft W200E L: 710mm, W200E710

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€281.98
Tax included
4-5 Working days
PTO shaft W200E L: 710mm, W200E710 Walterscheid
IN WAREHOUSE

69961

  • Brand
    Walterscheid
  • Reference
    W200E710
  • In stock
    5 Items
  • Condition
    New
  • EAN
    8435194030779
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
W200E710
EAN8435194030779
Unit
Each
Application range
  • Small crop sprayers
  • Tedders
  • Windrowers
Properties
  • Tractor side 1-3/8" (6) shaft collar kit
  • Machinery side 1-3/8" (6) slide pin
  • Lubrication interval: 8 hours
  • CE marking awarded
Technical info
  • Follow the Walterscheid instruction manual
  • Max. dynamic capacity 540 rpm: 20 kW, 335 Nm
  • Max. dynamic capacity 1000 rpm: 31 kW, 295 Nm
  • Values at a working angle of 5° and service life 700 hours
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Consists of
  • Pto shaft with guard tube
  • Declaration of conformity
  • Instruction manual
Locking type by tractor side
Collar lock
Attachment tractor side
Quick disconnect yoke
Connection outside diameter by machine side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Locking type by machine side
Collar lock
Attachment machine side
Quick disconnect yoke
Size code
W200E
Length
710 mm
Power 540 rpm
14 kW
Power 1000 rpm
22 kW
Cross joint bush diameter by tractor side
24 mm
Cross joint length by tractor side
61 mm
Cross joint bush diameter by machine side
24 mm
Cross joint length by machine side
61 mm
Clutch type
n/a
Outer tube profile
1
Outer tube wall thickness
3 mm
Outer tube large outside diameter
48 mm
Inner tube profile
Ov
Inner tube wall thickness
4 mm
Inner tube large outside diameter
40 mm
Profile tube shape
Lemon
Max static torque
1500 N·m
Protection type
SD15
Original number equivalent
1800006
