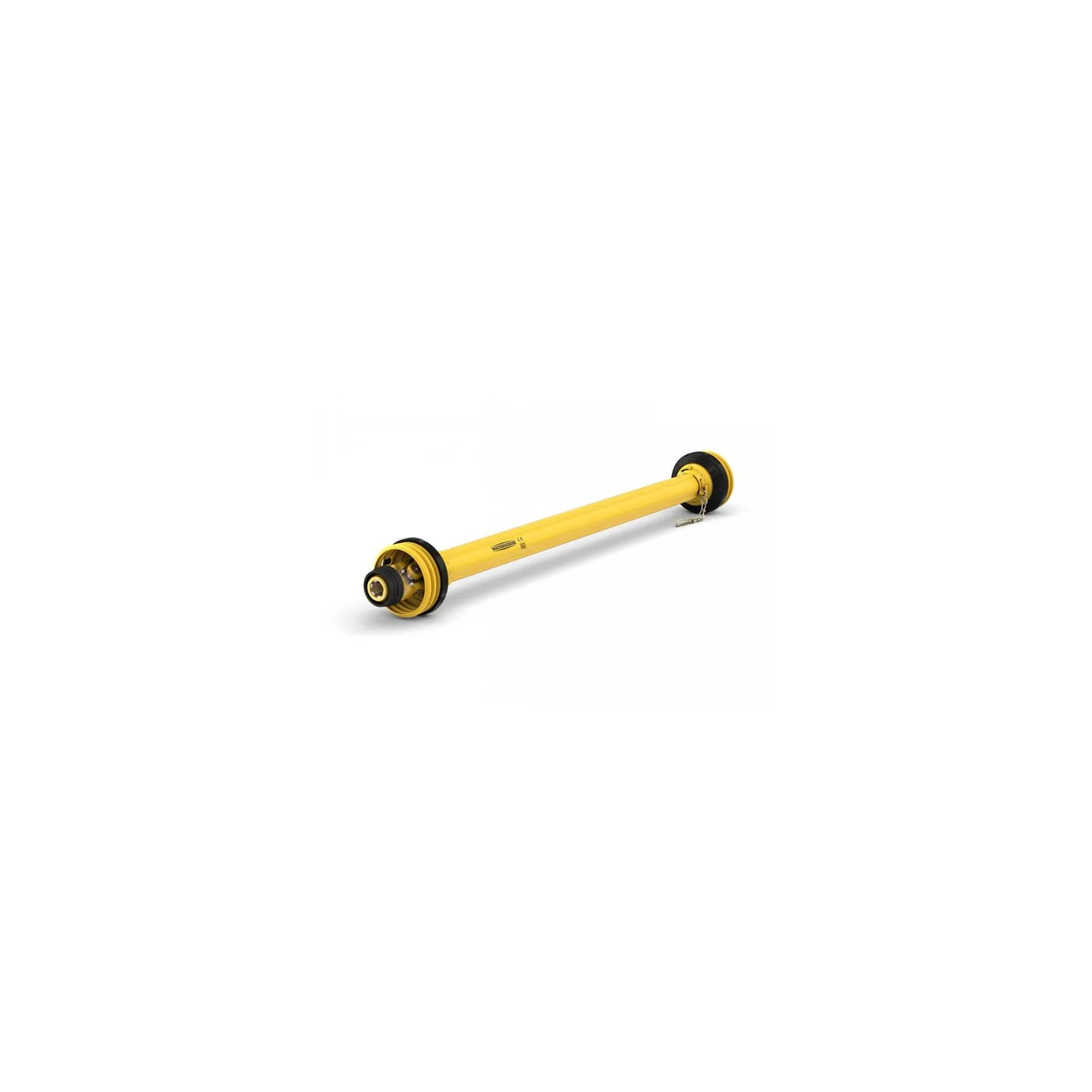

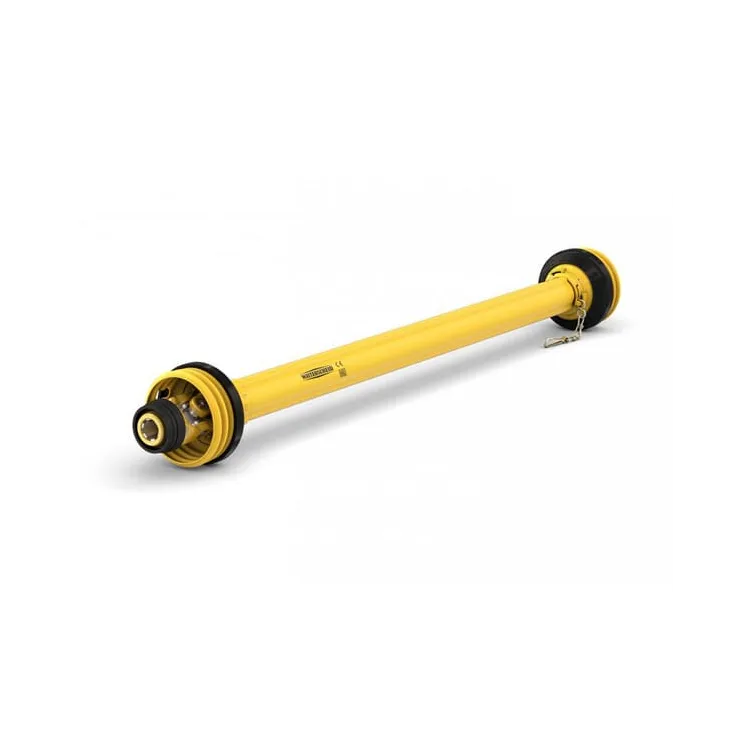

PTO half shaft W2300 L: 1010mm, W230010101B2A

Name: PTO half shaft W2300 L: 1010mm, W230010101B2A
Brand: Walterscheid
SKU: W230010101B2A
Price: 521.41 EUR
Availability: InStock

Payment options

€521.41

Tax included

4-5 Working days

PTO half shaft W2300 L: 1010mm, W230010101B2A Walterscheid

IN WAREHOUSE

ID: 69962

Description

Part number	W230010101B2A
EAN	8435194196246
Unit	Each
Connection outside diameter by tractor side	1-3/8 Inch
Connection number of splines/grooves by tractor side	6
Locking type by tractor side	Automatic collar lock
Attachment tractor side	Quick disconnect yoke
Connection outside diameter by machine side	1-3/8 Inch
Connection number of splines/grooves by machine side	6
Locking type by machine side	Collar lock
Attachment machine side	Quick disconnect yoke
Size code	W2300
Length	1010 mm
Power 540 rpm	28 kW
Power 1000 rpm	44 kW
Cross joint bush diameter by tractor side	27 mm
Cross joint length by tractor side	75 mm
Cross joint bush diameter by machine side	27 mm
Cross joint length by machine side	75 mm
Clutch type	n/a
Outer tube profile	2a
Outer tube wall thickness	4 mm
Outer tube large outside diameter	57.5 mm
Inner tube profile	1b
Inner tube wall thickness	4.5 mm
Inner tube large outside diameter	49 mm
Profile tube shape	Lemon
Max static torque	2500 N·m
Protection type	ST25
Original number equivalent	1800055
