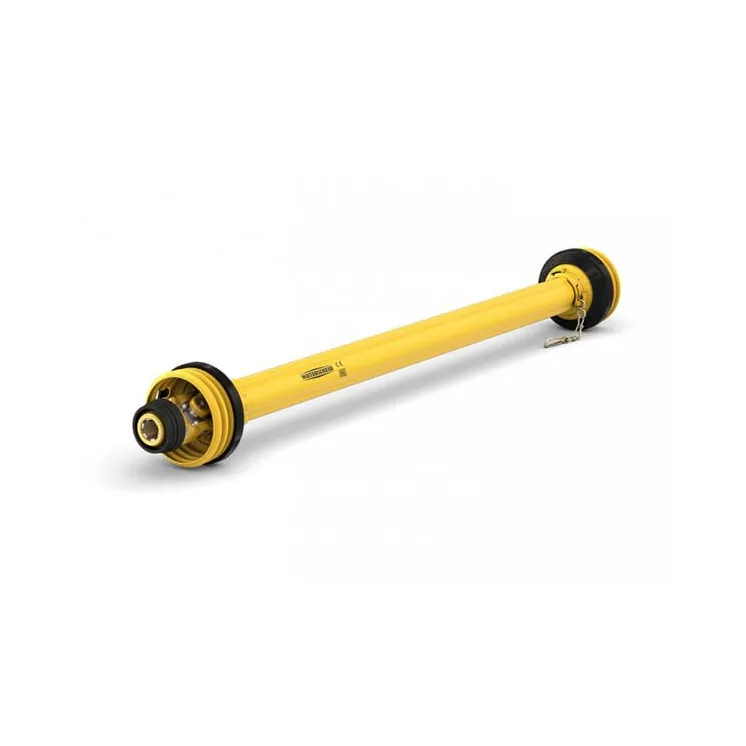

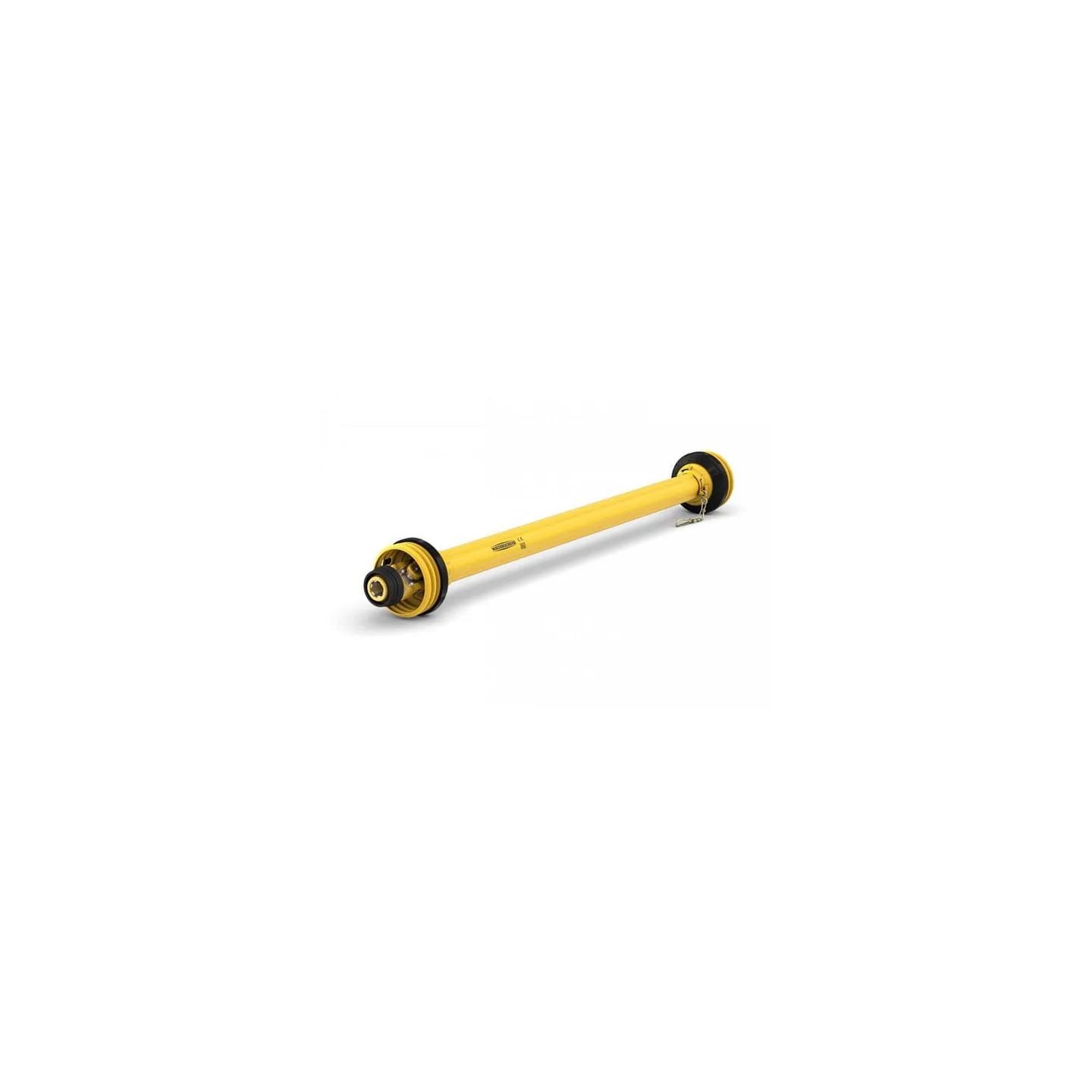

PTO shaft W2500 L: 1210mm, W25001210 Walterscheid VTE1058
search
  • PTO shaft W2500 L: 1210mm, W25001210 Walterscheid VTE1058

PTO shaft W2500 L: 1210mm, W25001210 VTE1058

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€897.06
Tax included
4-5 Working days
PTO shaft W2500 L: 1210mm, W25001210 Walterscheid VTE1058
IN WAREHOUSE

69963

  • Brand
    Walterscheid
  • Reference
    W25001210
  • In stock
    5 Items
  • Condition
    New
  • CODE
    VTE1058
  • EAN
    8435194030052
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
W25001210
EAN8435194030052
Unit
Each
Application range
  • Harvesters
  • Soil cultivating machinery
  • Wood shredders
Properties
  • Lubrication frequency from 50 to 100 hours
  • Fulfilling the requirements laid out in EC 89/392 EEC
  • Fulfilling the safety standard EN12965
  • CE marking available
Technical info
  • See Walterscheid instruction manual
  • Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm
  • Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm
  • Values at working angle 5° and service life 1000 hours
  • LZ = slid in length in mm, from intersection to intersection
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Consists of
  • PTO shaft with shielding
  • Declaration of conformity
  • Instruction manual
Locking type by tractor side
Automatic collar lock
Attachment tractor side
Quick disconnect yoke
Connection outside diameter by machine side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Locking type by machine side
Collar lock
Attachment machine side
Quick disconnect yoke
Size code
W2500
Length
1210 mm
Power 540 rpm
66 kW
Power 1000 rpm
102 kW
Cross joint bush diameter by tractor side
36 mm
Cross joint length by tractor side
89 mm
Cross joint bush diameter by machine side
36 mm
Cross joint length by machine side
89 mm
Clutch type
n/a
Outer tube profile
S5
Outer tube wall thickness
4.5 mm
Outer tube large outside diameter
61 mm
Inner tube profile
S4
Inner tube large outside diameter
51 mm
Profile tube shape
Star
Max static torque
6000 N·m
Protection type
ST25
Original number equivalent
1800071
Additional info
*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
