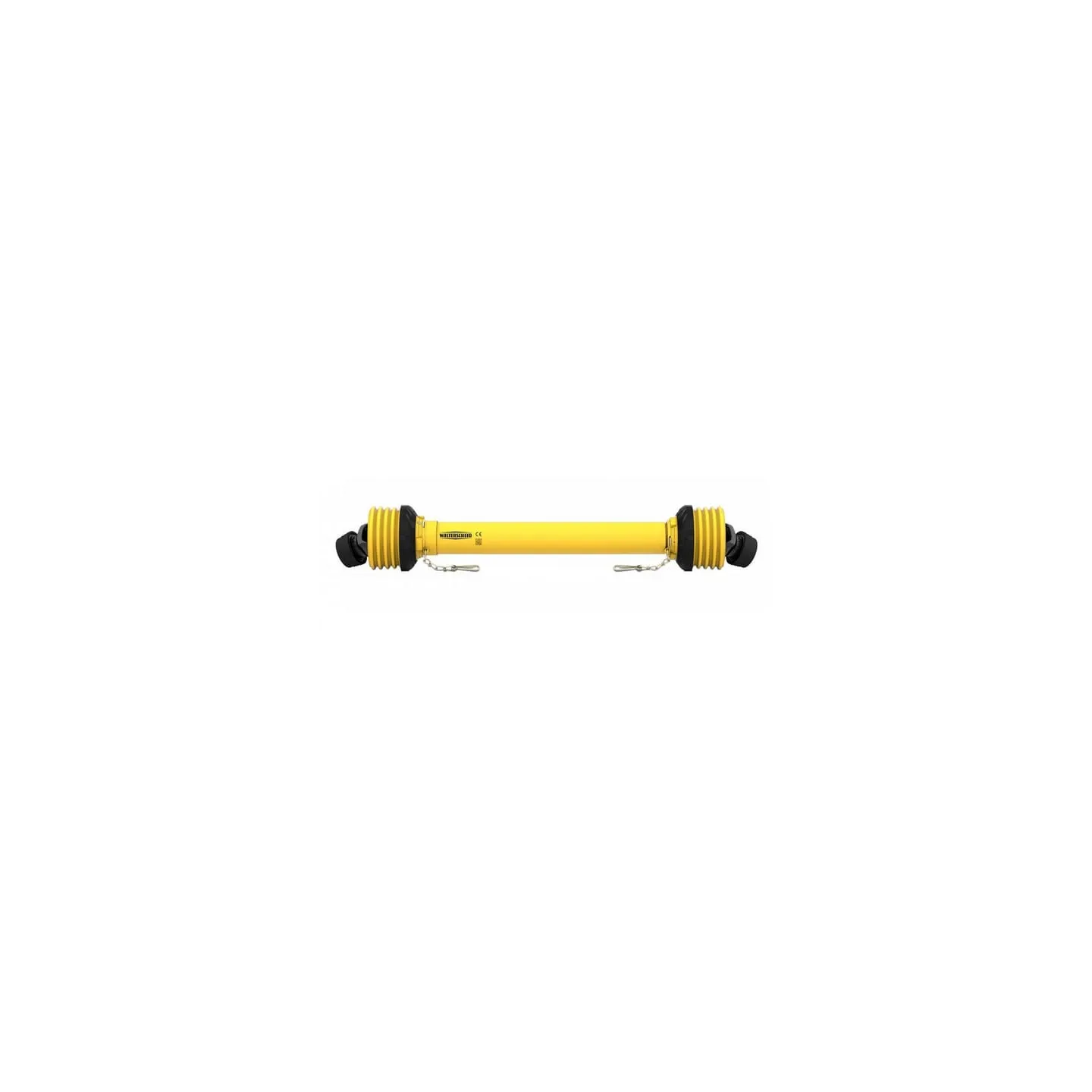

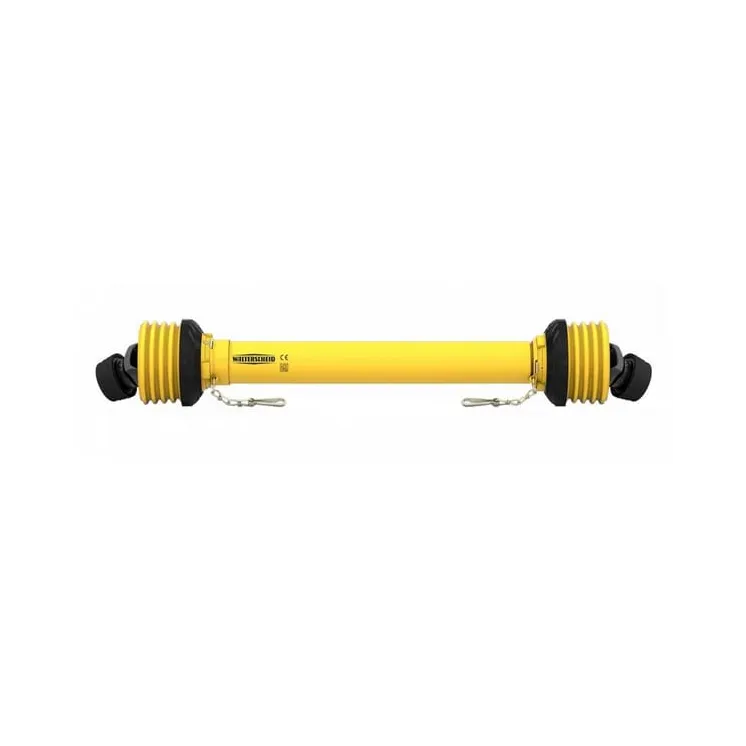

PTO shaft W300E L: 560mm, W300E560 Walterscheid
search
  • PTO shaft W300E L: 560mm, W300E560 Walterscheid

PTO shaft W300E L: 560mm, W300E560

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€268.56
Tax included
4-5 Working days
PTO shaft W300E L: 560mm, W300E560 Walterscheid
IN WAREHOUSE

69967

  • Brand
    Walterscheid
  • Reference
    W300E560
  • In stock
    5 Items
  • Condition
    New
  • EAN
    8432970201897
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
W300E560
EAN8432970201897
Unit
Each
Application range
  • Mowers
  • Fertiliser mixers
  • Seeders
Properties
  • Tractor side 1-3/8" (6) shaft collar kit
  • Lubrication interval: 8 hours
  • CE marking awarded
Technical info
  • Follow the Walterscheid instruction manual
  • Max. dynamic capacity 540 rpm: 28 kW, 500 Nm
  • Max. dynamic capacity 1000 rpm: 44 kW, 415 Nm
  • Values at a working angle of 5° and service life 700 hours
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Consists of
  • Pto shaft with guard tube
  • Declaration of conformity
  • Instruction manual
Locking type by tractor side
Collar lock
Attachment tractor side
Quick disconnect yoke
Connection outside diameter by machine side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Locking type by machine side
Collar lock
Attachment machine side
Quick disconnect yoke
Size code
W300E
Length
560 mm
Power 540 rpm
20 kW
Power 1000 rpm
31 kW
Cross joint bush diameter by tractor side
27 mm
Cross joint length by tractor side
75 mm
Cross joint bush diameter by machine side
27 mm
Cross joint length by machine side
75 mm
Clutch type
n/a
Outer tube profile
1
Outer tube wall thickness
3 mm
Outer tube large outside diameter
48 mm
Inner tube profile
Ov
Inner tube wall thickness
4 mm
Inner tube large outside diameter
40 mm
Profile tube shape
Lemon
Max static torque
2200 N·m
Protection type
SD15
Original number equivalent
1800010
