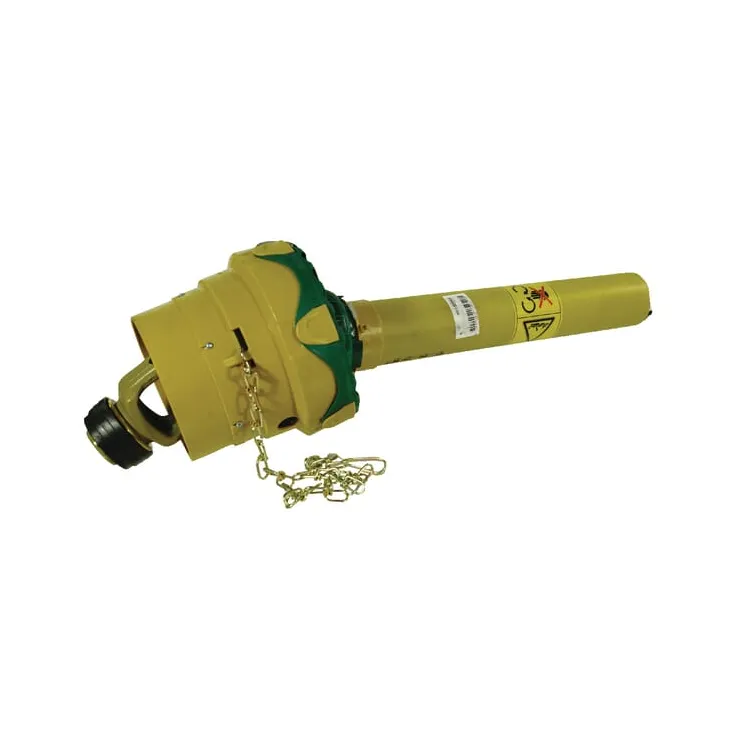

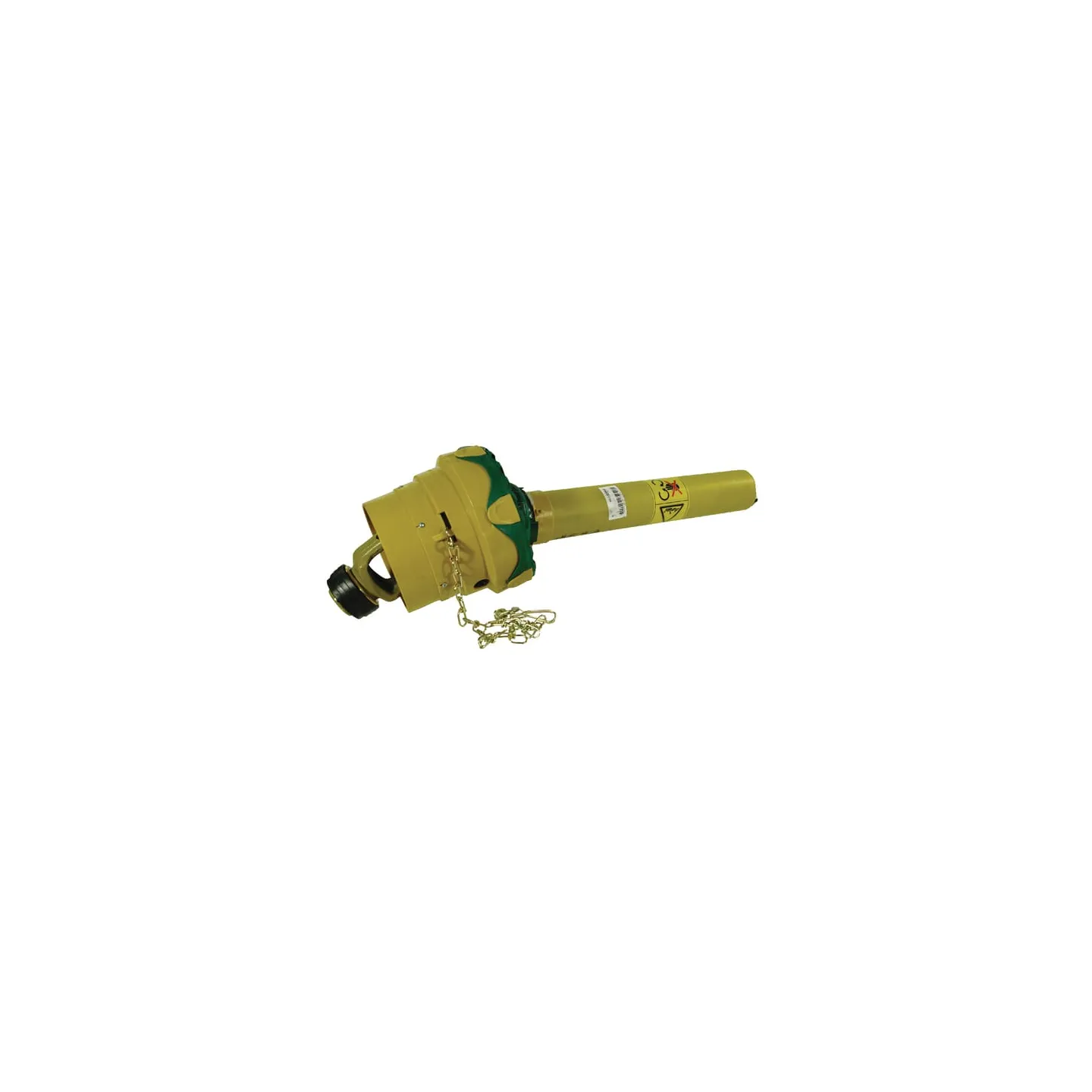

Wide angle PTO half shaft, inner WW 2480 L: 1580mm, WWZ24801560I Walterscheid
search
  • Wide angle PTO half shaft, inner WW 2480 L: 1580mm, WWZ24801560I Walterscheid

Wide angle PTO half shaft, inner WW 2480 L: 1580mm, WWZ24801560I

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1,196.48
Tax included
4-5 Working days
Wide angle PTO half shaft, inner WW 2480 L: 1580mm, WWZ24801560I Walterscheid
IN WAREHOUSE

69974

Part number
WWZ24801560I
EAN
Unit
Each
Application range
  • Mixing wagon
  • Slurry wagon
  • Harvesters
  • Silage wagon
Properties
  • Tractor-side 1–3/8" (6) shaft collar kit
  • Lubrication interval: 8 hours
  • Fulfils EC 89/392 EEC requirements
  • Complies with EN12965 safety standard
  • CE marking available
Technical info
  • Working angle with continuous use maximum 25º
  • Working angle may only reach 80º briefly
  • Max. dynamic capacity 540 rpm - 39 kW - 695 Nm
  • Max. dynamic capacity 1000 rpm - 61 kW - 580 Nm
  • Values at working angle 10° and service life 1000 hours
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Consists of
  • Pto shaft with guard tube
  • Declaration of conformity
  • Instruction manual
Locking type by tractor side
Automatic collar lock
Size code
WW 2480
Length
1580 mm
Cross joint bush diameter by tractor side - longer part
27 mm
Cross joint bush diameter by tractor side
32 mm
Cross joint length by tractor side - longer part
94 mm
Cross joint length by tractor side
76 mm
Cross joint length by machine side - longer part
94 mm
Cross joint length by machine side
76 mm
Inner tube profile
1bGA
Protection type
SD25
Original number equivalent
1695401
  • Brand
    Walterscheid
  • Reference
    WWZ24801560I
  • In stock
    4 Items
  • Condition
    New
