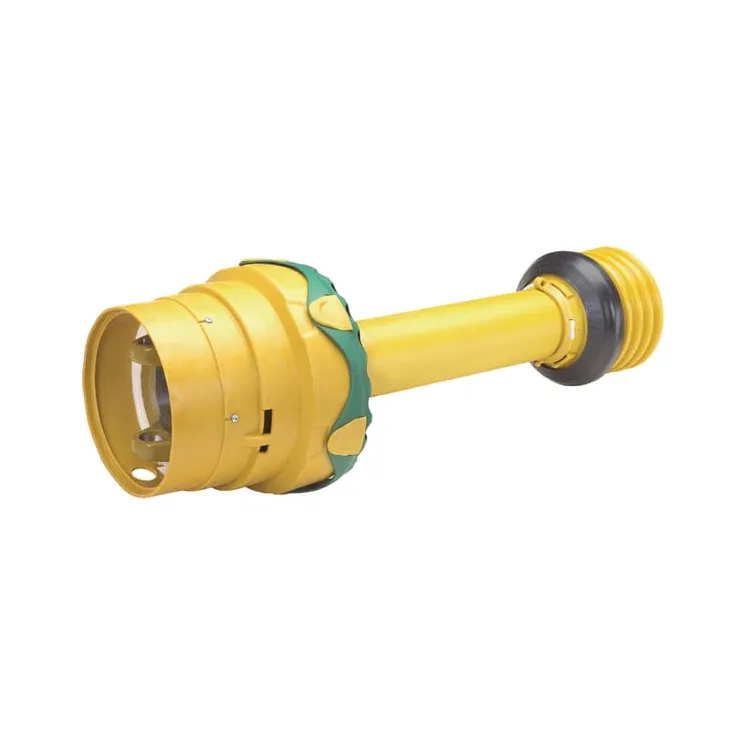

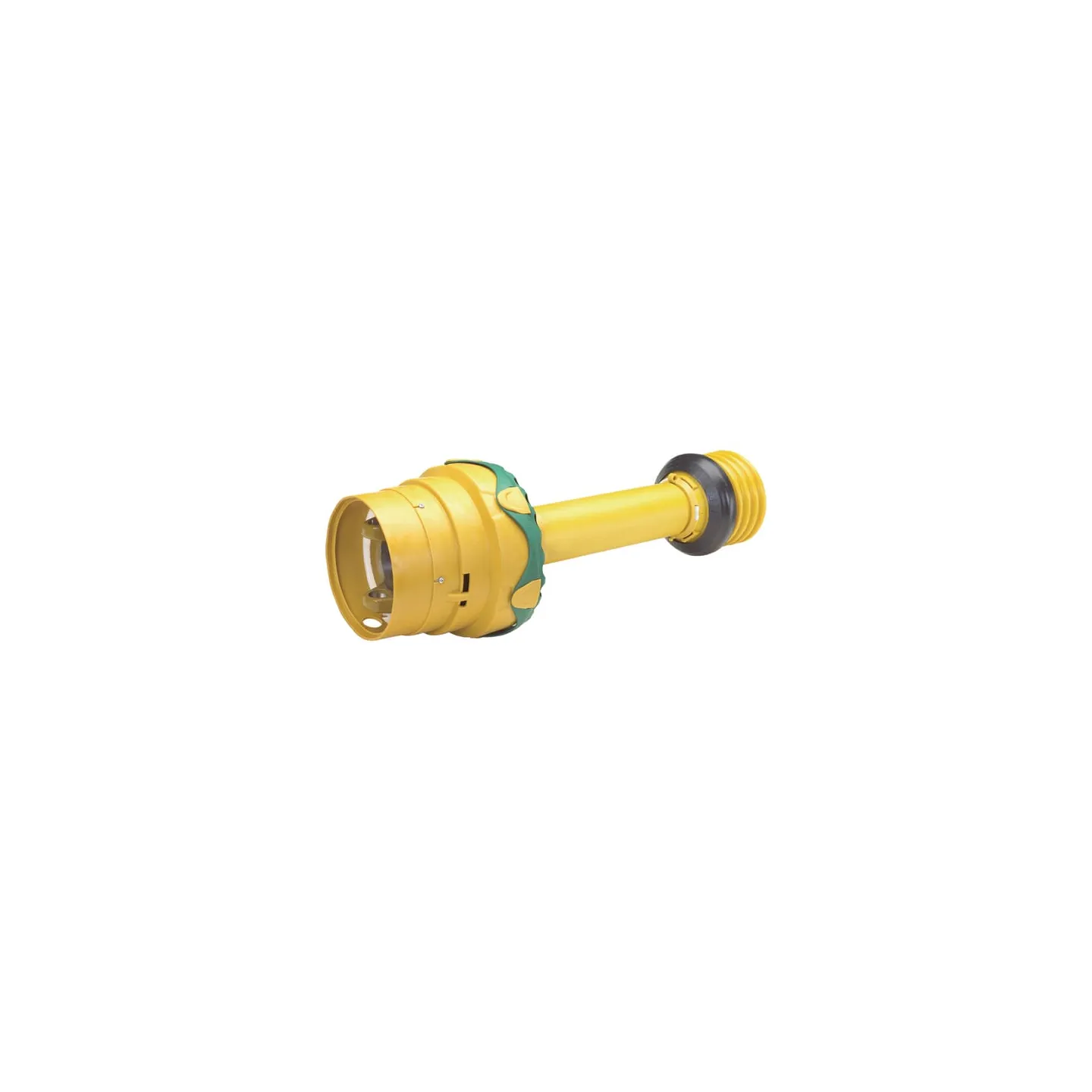

Wide angle PTO shaft without yokes WWE 2480 L: 1210mm, WWE24801210OG Walterscheid
search
  • Wide angle PTO shaft without yokes WWE 2480 L: 1210mm, WWE24801210OG Walterscheid

Wide angle PTO shaft without yokes WWE 2480 L: 1210mm, WWE24801210OG

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€832.27
Tax included
4-5 Working days
Wide angle PTO shaft without yokes WWE 2480 L: 1210mm, WWE24801210OG Walterscheid
IN WAREHOUSE

69982

  • Brand
    Walterscheid
  • Reference
    WWE24801210OG
  • In stock
    2 Items
  • Condition
    New
  • EAN
    8432970202719
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
WWE24801210OG
EAN8432970202719
Unit
Each
Long description
Wide-angle PTO shafts 80° series WWE 2480 suitable for feed mixers, fertiliser machines, harvesters, loader wagons etc.
Pros
  • PTO shaft 1-sided wide-angle with safety guard
  • Declaration of conformity
  • User instructions
  • Supplied without yokes
  • Supplied without cross piece on wide-angle side
Product details
  • PTO shaft 1-sided wide-angle with safety guard
  • Declaration of conformity
  • User instructions
  • Lubricating interval of 8 hours
  • Meets the requirements according to EC 89/392 EEC
  • Meets safety standard EN12965
  • Provided with "CE" marking
  • Angle in continuous use maximum 25°
  • Angle may be 80° only briefly
  • Max. dyn. power 540 rpm: 39kW - 695Nm
  • Max. dyn. power 1000 rpm: 61kW - 580Nm
  • Values at bending angle 10° and service life 1000 hours
  • LZ= Retracted length in mm, from cross to cross
Application range
  • Mixing wagon
  • Slurry wagon
  • Harvesters
  • Silage wagon
Properties
  • Lubrication interval: 8 hours
  • Fulfils EC 89/392 EEC requirements
  • Complies with EN12965 safety standard
  • CE marking available
Technical info
  • Working angle with continuous use maximum 25º
  • Working angle may only reach 80º briefly
  • Max. dynamic capacity 540 rpm - 39 kW - 695 Nm
  • Max. dynamic capacity 1000 rpm - 61 kW - 580 Nm
  • Values at working angle 10° and service life 1000 hours
  • LZ = slid-in length in mm, from intersection to intersection
Consists of
  • Wide angle pto-shaft, 1 sided, with guard tube
  • Declaration of conformity
  • Instruction manual
  • Delivery without yokes
  • Delivery without cross journal on the wide-angle side
Size code
WWE 2480
Length
1210 mm
Cross joint bush diameter by tractor side - longer part
27 mm
Cross joint bush diameter by tractor side
32 mm
Cross joint length by tractor side - longer part
94 mm
Cross joint length by tractor side
76 mm
Cross joint bush diameter by machine side
32 mm
Cross joint length by machine side
76 mm
Outer tube profile
2aG
Inner tube profile
1bGA
Max static torque
3800 N·m
Protection type
SD25
Original number equivalent
1800110
Additional info
*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
