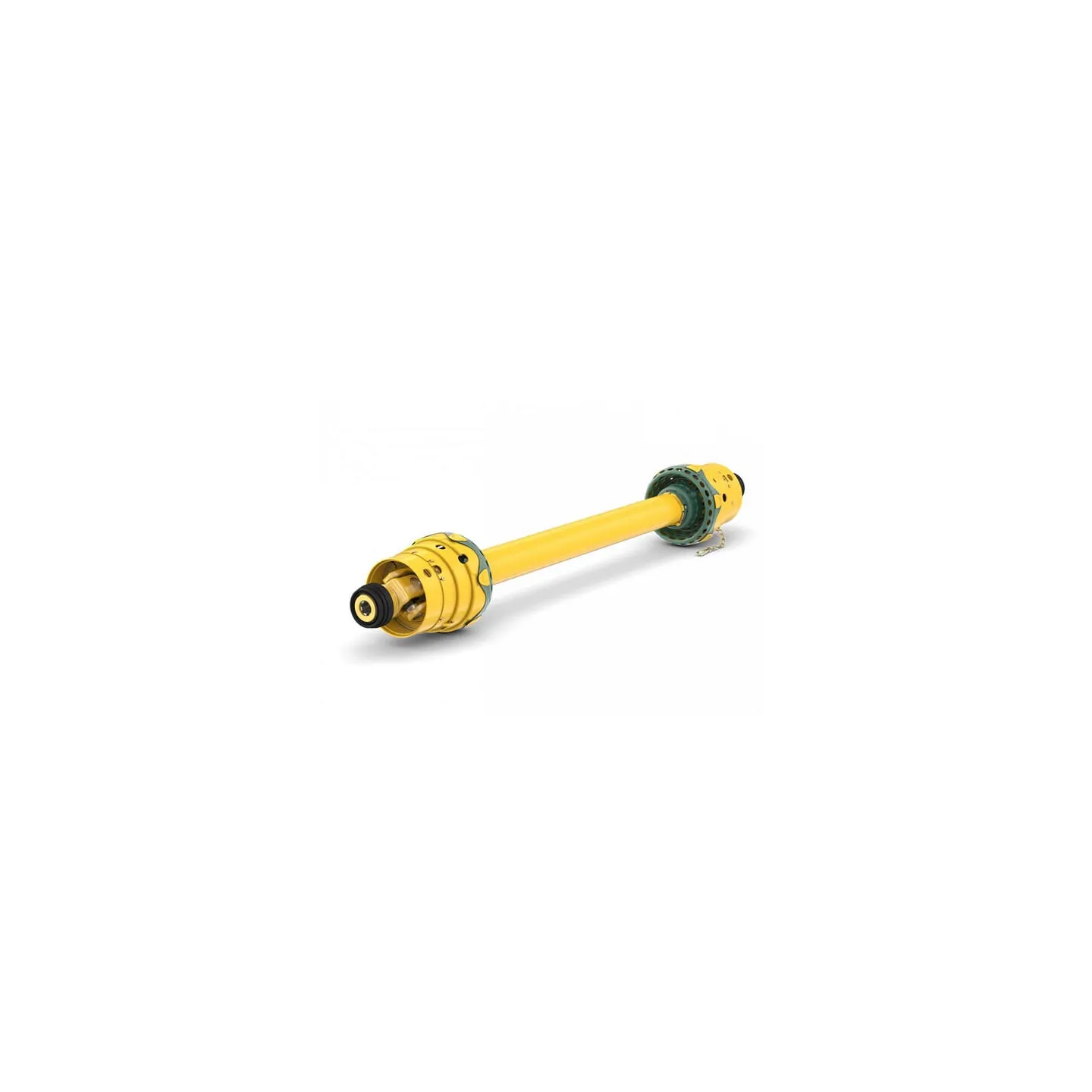

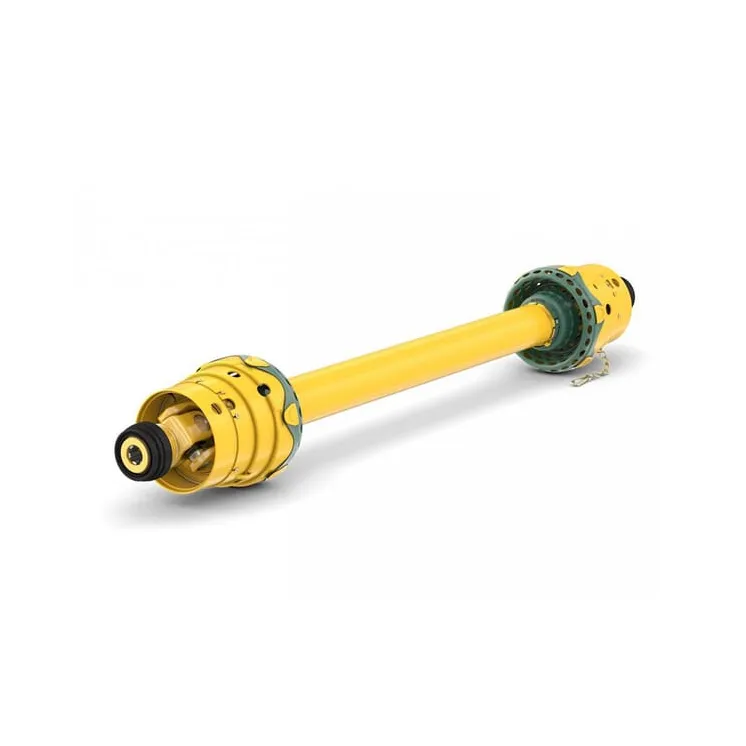

Wide angle PTO shaft WWZ 2480 L: 1210mm, WWZ24801210 Walterscheid VTE1178
search
  • Wide angle PTO shaft WWZ 2480 L: 1210mm, WWZ24801210 Walterscheid VTE1178

Wide angle PTO shaft WWZ 2480 L: 1210mm, WWZ24801210 VTE1178

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€2,095.60
Tax included
4-5 Working days
Wide angle PTO shaft WWZ 2480 L: 1210mm, WWZ24801210 Walterscheid VTE1178
IN WAREHOUSE

69985

  • Brand
    Walterscheid
  • Reference
    WWZ24801210
  • In stock
    5 Items
  • Condition
    New
  • CODE
    VTE1178
  • EAN
    8432970200166
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
WWZ24801210
EAN8432970200166
Unit
Each
Long description
Wide-angle PTO shafts 80° series WWZ 2480 suitable for feed mixers, fertiliser machines, harvesters, loader wagons etc.
Product details
  • PTO shaft 2-sided wide-angle with safety guard
  • Declaration of conformity
  • User instructions
  • Tractor side 1-3/8" (6) collar fastening
  • Machine side 1-3/8" (6) spring pin
  • Lubricating interval of 8 hours
  • Meets the requirements according to EC 89/392 EEC
  • Meets safety standard EN12965
  • Provided with "CE" marking
  • Angle in continuous use maximum 25°
  • Angle may be 80° only briefly
  • Max. dyn. power 540 rpm: 39kW - 695Nm
  • Max. dyn. power 1000 rpm: 61kW - 580Nm
  • Values at bending angle 10° and service life 1000 hours
  • LZ= Retracted length c.t.c. outer cross
Application range
  • Mixing wagon
  • Slurry wagon
  • Harvesters
  • Silage wagon
Properties
  • Tractor side 1-3/8" (6) shaft collar kit
  • Device side 1-3/8" (6) slide pin
  • Lubrication interval: 8 hours
  • Fulfilling the requirements laid out in EC 89/392 EEC
  • Compliant with EN12965 safety standard
  • CE marking available
Technical info
  • Working angle with continuous use maximum 25º
  • Working angle may only briefly be 80º
  • Max. dynamic capacity 540 rpm: 39 kW, 695 Nm
  • Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm
  • Values at working angle 10° and service life 1000 hours
  • LZ = slid in length centre distance of outer intersection
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Consists of
  • Wide angle pto-shaft, 2 sided, with guard tube
  • Declaration of conformity
  • Instruction manual
Locking type by tractor side
Collar lock
Attachment tractor side
Quick disconnect yoke
Connection outside diameter by machine side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Locking type by machine side
Collar lock
Attachment machine side
Quick disconnect yoke
Size code
WWZ 2480
Length
1210 mm
Power 540 rpm
39 kW
Power 1000 rpm
61 kW
Cross joint bush diameter by tractor side - longer part
27 mm
Cross joint bush diameter by tractor side
32 mm
Cross joint length by tractor side - longer part
94 mm
Cross joint length by tractor side
76 mm
Cross joint bush diameter by machine side - longer part
27 mm
Cross joint bush diameter by machine side
32 mm
Cross joint length by machine side - longer part
94 mm
Cross joint length by machine side
76 mm
Clutch type
n/a
Outer tube profile
2aG
Outer tube wall thickness
3.5 mm
Outer tube large outside diameter
57.5 mm
Inner tube profile
1bGA
Inner tube wall thickness
4.5 mm
Inner tube large outside diameter
49 mm
Profile tube shape
Lemon
Max static torque
4000 N·m
Protection type
ST25
Original number equivalent
1800122
Additional info
*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
