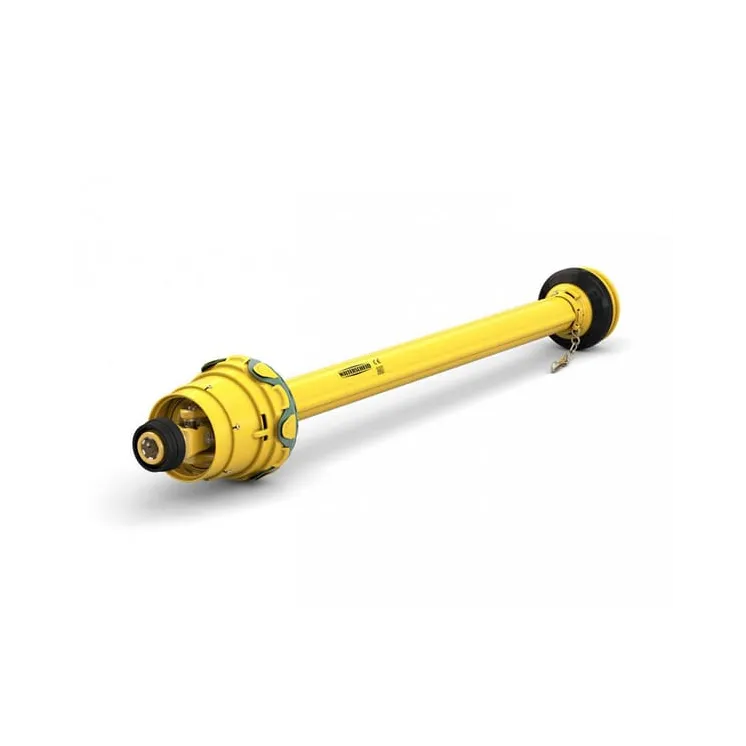

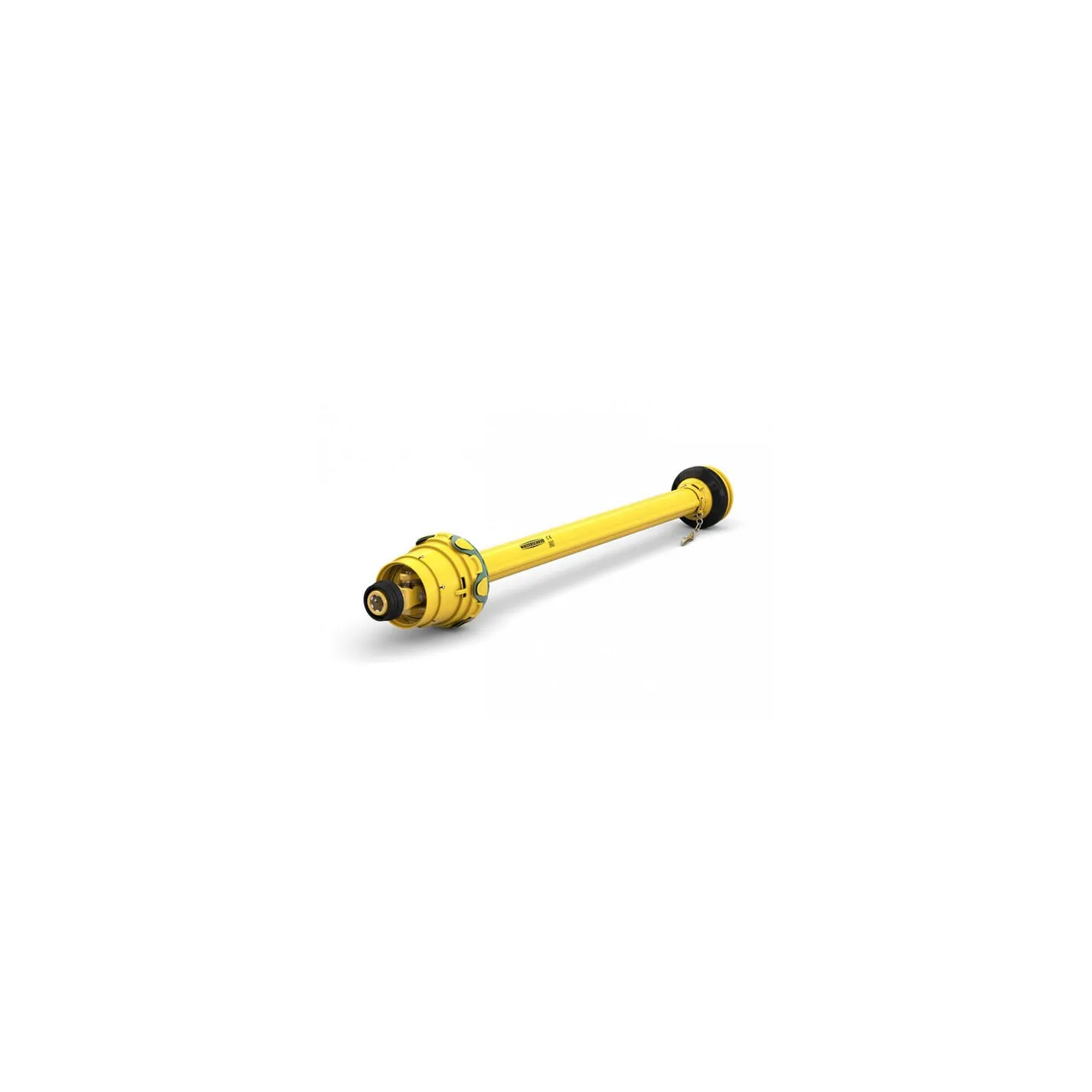

Wide angle PTO shaft WWE 2380 L: 1210mm, WWE23801210SD25 Walterscheid
search
  • Wide angle PTO shaft WWE 2380 L: 1210mm, WWE23801210SD25 Walterscheid

Wide angle PTO shaft WWE 2380 L: 1210mm, WWE23801210SD25

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1,073.43
Tax included
4-5 Working days
Wide angle PTO shaft WWE 2380 L: 1210mm, WWE23801210SD25 Walterscheid
IN WAREHOUSE

69999

  • Brand
    Walterscheid
  • Reference
    WWE23801210SD25
  • In stock
    5 Items
  • Condition
    New
  • EAN
    8432970200753
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
WWE23801210SD25
EAN8432970200753
Unit
Each
Long description
Wide-angle PTO shafts 80° series WWE 2380
Product details
  • PTO shaft 1-sided wide-angle with safety guard
  • Declaration of conformity
  • User instructions
  • Tractor side 1-3/8" (6) collar fastening
  • Machine side 1-3/8" (6) spring pin
  • Lubricating interval of 8 hours
  • Meets the requirements according to EC 89/392 EEC
  • Meets safety standard EN12965
  • Provided with "CE" marking
  • Angle in continuous use maximum 25°
  • Angle may be 80° only briefly
  • Max. dyn. power 540 rpm: 28kW - 500Nm
  • Max. dyn. power 1000 rpm: 44kW - 415Nm
  • Values at bending angle 10° and service life 1000 hours
  • LZ= Retracted length c.t.c. outer cross
Application range
  • Slurry tank
  • Crop sprayers
  • Fertiliser spreader
  • Hay press
Properties
  • Tractor side 1-3/8" (6) shaft collar kit
  • Device side 1-3/8" (6) slide pin
  • Lubrication interval: 8 hours
  • Fulfilling the requirements laid out in EC 89/392 EEC
  • Compliant with EN12965 safety standard
  • CE marking available
Technical info
  • Working angle with continuous use maximum 25º
  • Working angle may only briefly be 80º
  • Max. dynamic capacity 540 rpm: 28 kW, 500 Nm
  • Max. dynamic capacity 1000 rpm: 44 kW, 415 Nm
  • Values at working angle 10° and service life 1000 hours
  • LZ = slid in length centre distance of outer intersection
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Consists of
  • Wide angle pto-shaft, 1 sided, with guard tube
  • Declaration of conformity
  • Instruction manual
Locking type by tractor side
Collar lock
Attachment tractor side
Quick disconnect yoke
Connection outside diameter by machine side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Locking type by machine side
Collar lock
Attachment machine side
Quick disconnect yoke
Size code
WWE 2380
Length
1210 mm
Power 540 rpm
28 kW
Power 1000 rpm
44 kW
Cross joint bush diameter by tractor side - longer part
24 mm
Cross joint bush diameter by tractor side
27 mm
Cross joint length by tractor side - longer part
91 mm
Cross joint length by tractor side
75 mm
Cross joint bush diameter by machine side
27 mm
Cross joint length by machine side
75 mm
Clutch type
n/a
Outer tube profile
2aG
Outer tube wall thickness
3.5 mm
Outer tube large outside diameter
57.5 mm
Inner tube profile
1bGA
Inner tube wall thickness
4.5 mm
Inner tube large outside diameter
49 mm
Profile tube shape
Lemon
Max static torque
2500 N·m
Protection type
ST25
Original number equivalent
1800096
