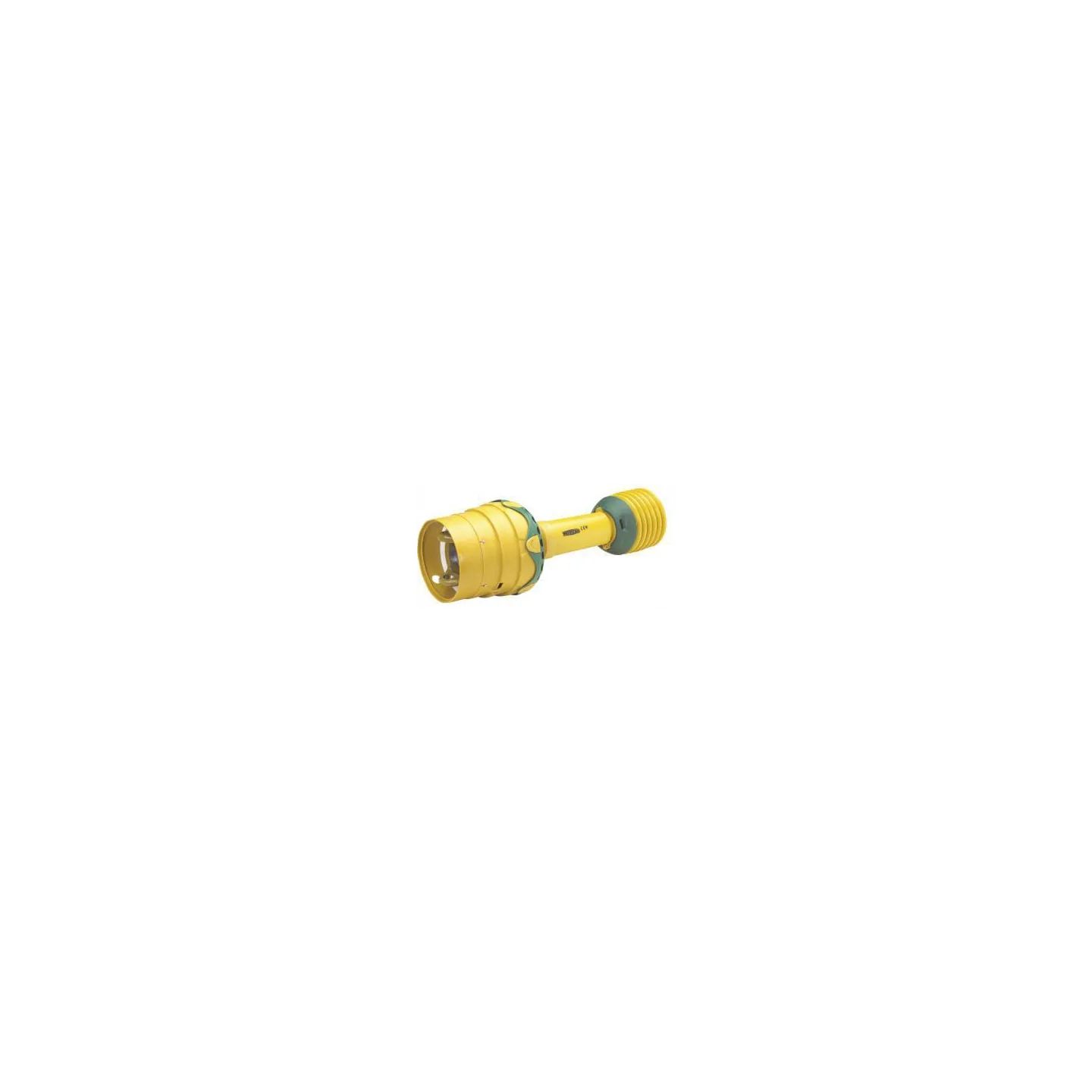

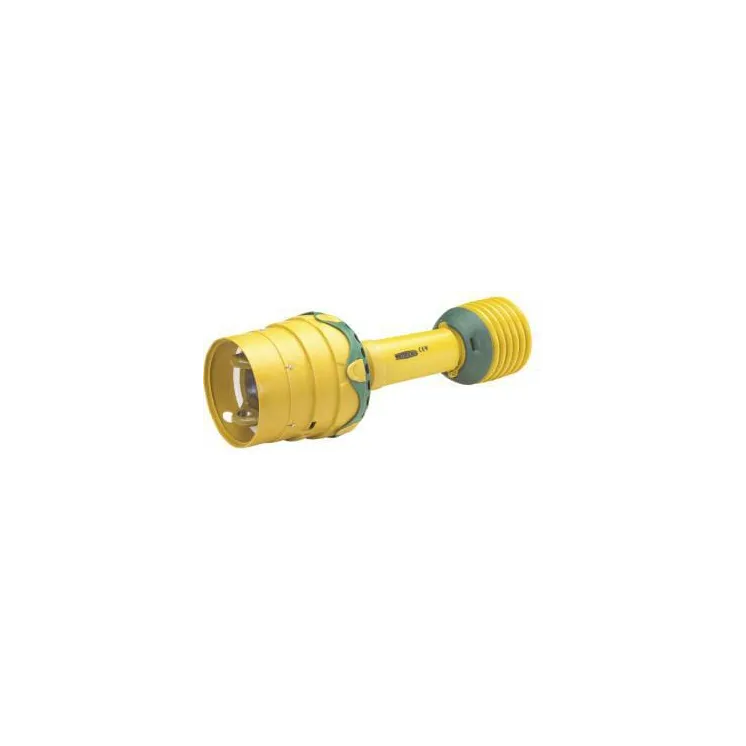

PTO shaft without end yokes WWE238012101B2AOG

Name: PTO shaft without end yokes WWE238012101B2AOG
Brand: Walterscheid
SKU: WWE238012101B2AOG
Price: 924.9 EUR
Availability: InStock

Payment options

€924.90

Tax included

4-5 Working days

PTO shaft without end yokes WWE238012101B2AOG Walterscheid

IN WAREHOUSE

ID: 70010

Description

Part number	WWE238012101B2AOG
EAN
Unit	Each
Application range	Slurry tank Crop sprayer Fertiliser spreaders Hay baler
Properties	Lubrication interval: 8 hours Fulfils EC 89/392 EEC requirements Complies with EN12965 safety standard CE marking available
Technical info	Working angle with continuous use maximum 25º Working angle may only reach 80º briefly Max. dynamic capacity 540 rpm: 28 kW, 500 Nm Max. dynamic capacity 1,000 rpm: 44 kW, 415 Nm Values at working angle 10° and service life 1000 hours LZ = slid-in length in mm, from intersection to intersection
Consists of	Wide angle pto-shaft, 1 sided, with guard tube Declaration of conformity Instruction manual Delivery without yokes Delivery without cross journal on the wide-angle side
Locking type by tractor side	Wide angle without UJ
Attachment tractor side	n/a
Locking type by machine side	Cross
Attachment machine side	n/a
Size code	WWE 2380
Length	1210 mm
Power 540 rpm	28 kW
Power 1000 rpm	44 kW
Cross joint bush diameter by tractor side - longer part	24 mm
Cross joint bush diameter by tractor side	27 mm
Cross joint length by tractor side - longer part	91 mm
Cross joint length by tractor side	75 mm
Cross joint bush diameter by machine side	27 mm
Cross joint length by machine side	75 mm
Outer tube profile	2aG
Inner tube profile	1bGA
Profile tube shape	Lemon
Max static torque	2400 N·m
Protection type	SD25
Original number equivalent	1800108
