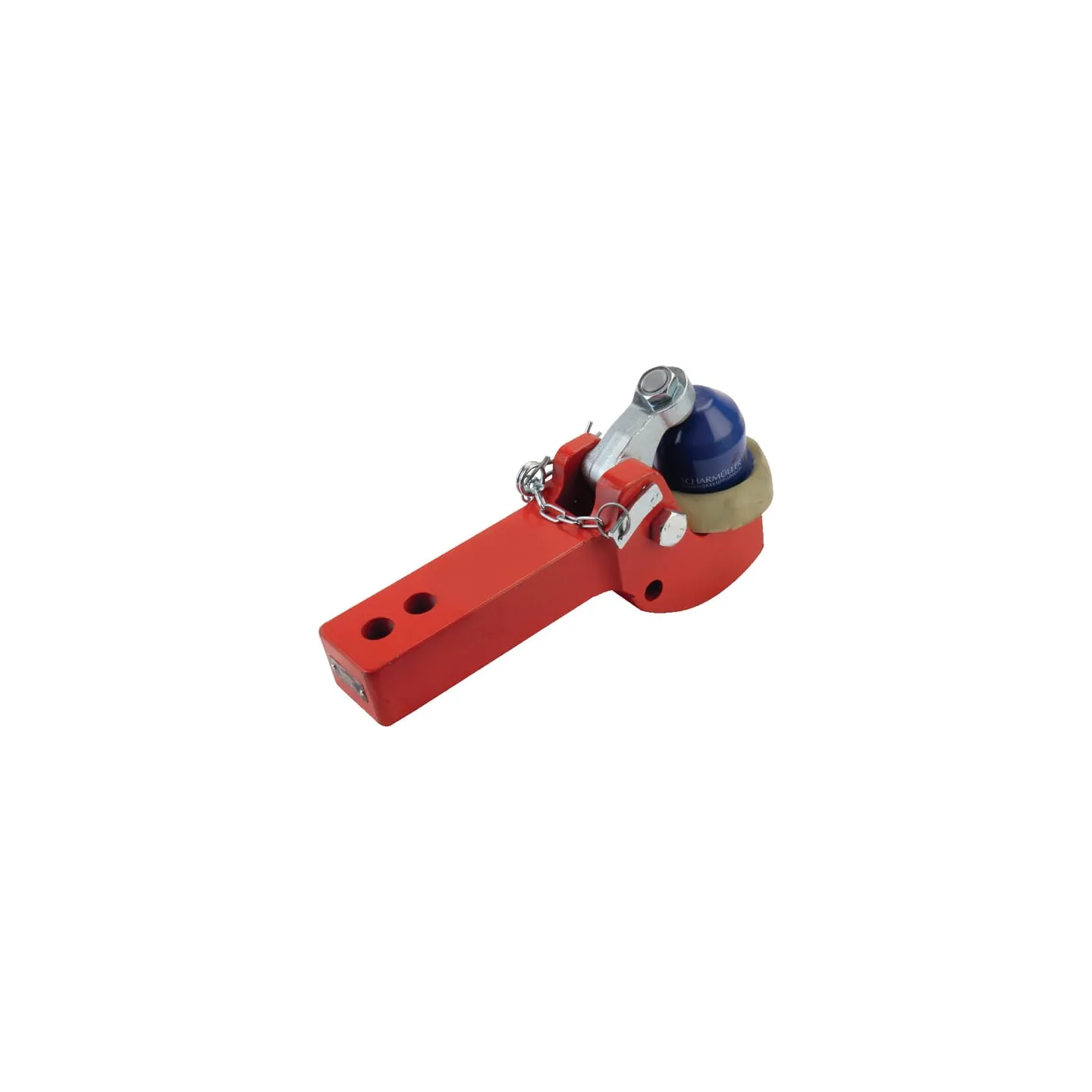

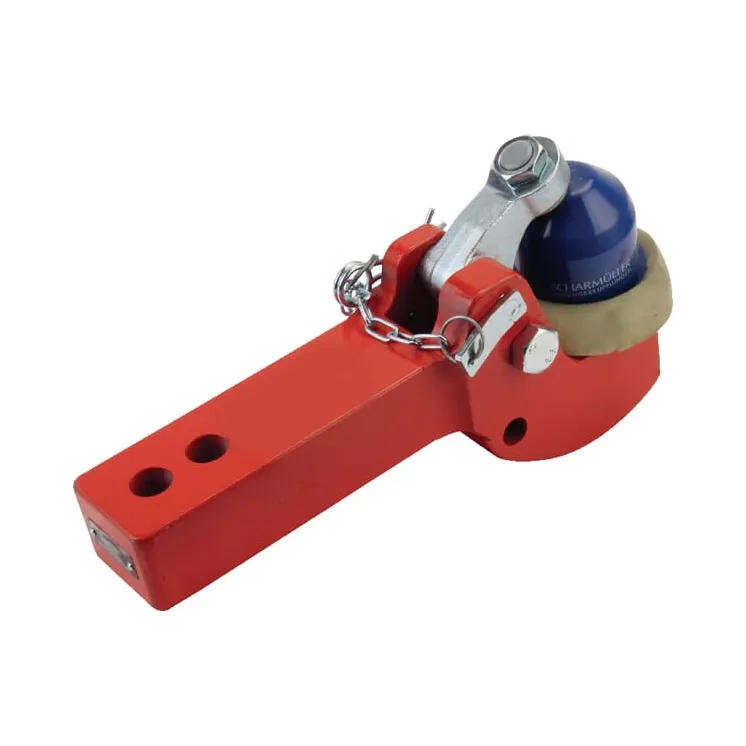

Hitch insert K80 00422600A20

Name: Hitch insert K80 00422600A20
Brand: Scharmüller
SKU: 00422600A20
Price: 1296.74 EUR
Availability: BackOrder

Payment options

€1,296.74

Tax included

On Request

Hitch insert K80 00422600A20 Scharmüller

ON REQUEST

ID: 77635

Description

Part number	00422600A20
EAN
Unit	Each
Properties	K80 tow ball coupler system Tested to ISO 24347
Ball hook diameter	80 mm
Colour	Red
DCvalue	82.4 kN
Length	417 mm
Towing eye inside diameter (main hole)	26 mm
Max. mounting holes distance	40 mm
Max. vertical load	2000 kg
Min. mounting holes distance	40 mm
Mounting holes diameter	26 mm
Distance holes	40 mm
Shaft width (diameter)	60 mm 80 mm
Suitable for machine/vehicle brand	Valtra
Suitable for machine/vehicle model	Valtra: C-Serie [100, 110, 120, 130, 150, 90], M-Serie [120, 130, 150], N-Serie [101, 103, 111, 113, 121, 122, 123, 134, 141, 142, 143, 163, 82, 92, 93], T-Serie [120, 121, 130, 131, 132, 133, 140, 151, 152, 153, 160, 161, 162, 163e, 165, 170, 171, 172, 173, 180, 182, 183, 190, 191, 193, 202, 203, 213], XM-Serie [130, 150] Show more
Total length	417 mm
Working length	336 mm
