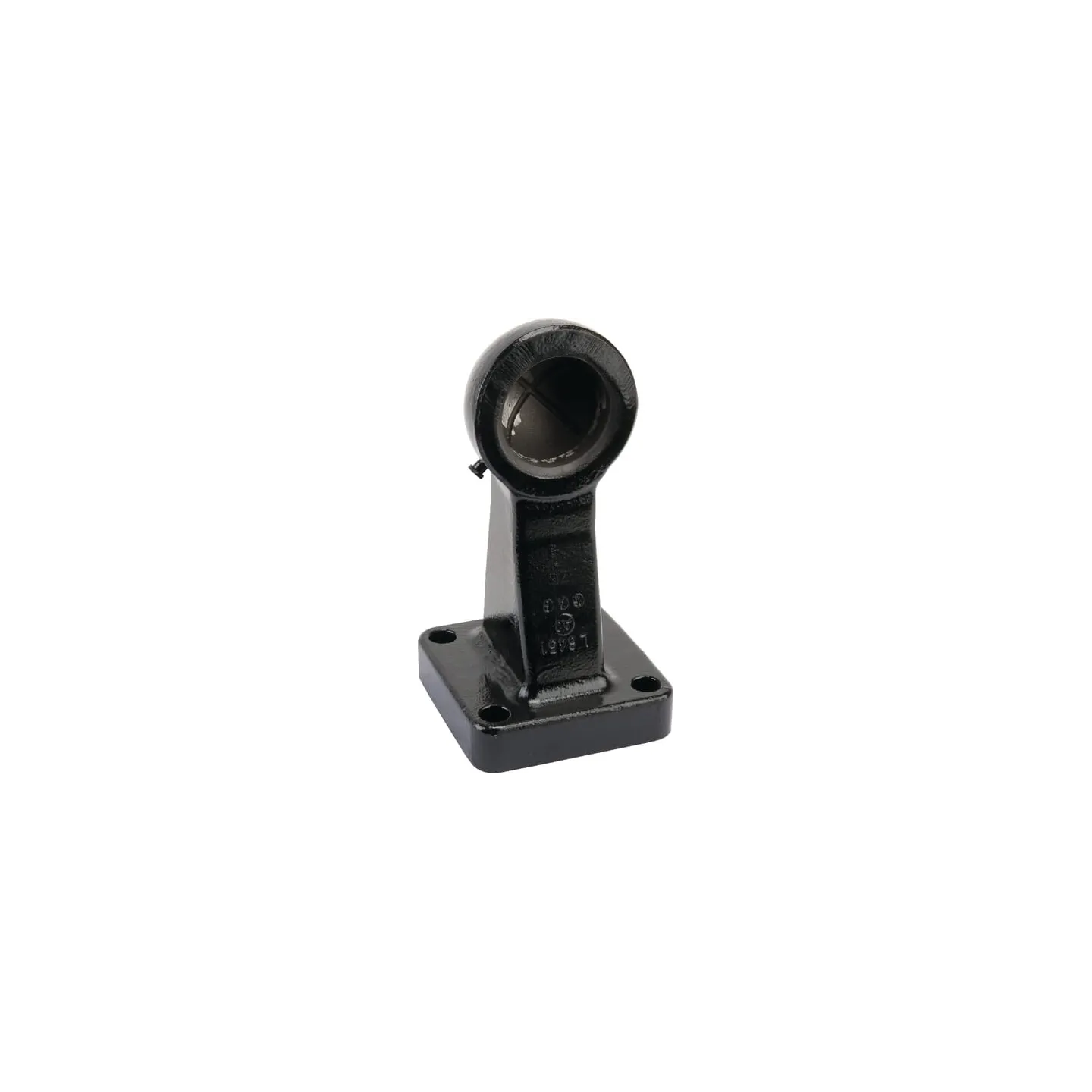

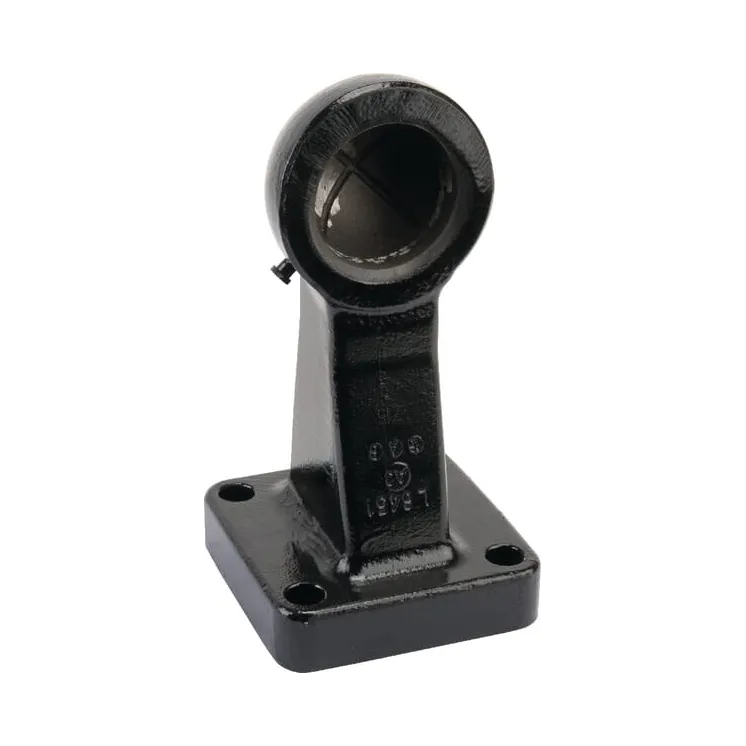

Hitch eye vertical flange K80 00664911A02 Scharmüller
search
  • Hitch eye vertical flange K80 00664911A02 Scharmüller

Hitch eye vertical flange K80 00664911A02

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€414.51
Tax included
On Request
Hitch eye vertical flange K80 00664911A02 Scharmüller
ON REQUEST

77704

Part number
00664911A02
EAN
Unit
Each
Details
  • K80 creates a clearance free connection
  • Less wear
Application range
  • Mainly for use on heavy agricultural and forestry rigid axle drawbar trailers.
  • For connection to 80mm coupling ball
Properties
  • Weight: ±19 kg
  • Tested to ISO 24347
Capacity
3000 kg
DCvalue
89.3 kN
Max. mounting holes distance
120 mm
Max. vertical load
3000 kg
Min. mounting holes distance
120 mm
Discharge_mm
250 mm
Number of holes
4
Thread
M20
Suitable for machine/vehicle model
Claas : Quadrant [3200, 3400]
Thread diameter
M20
Total length
311 mm
Working length
250 mm
