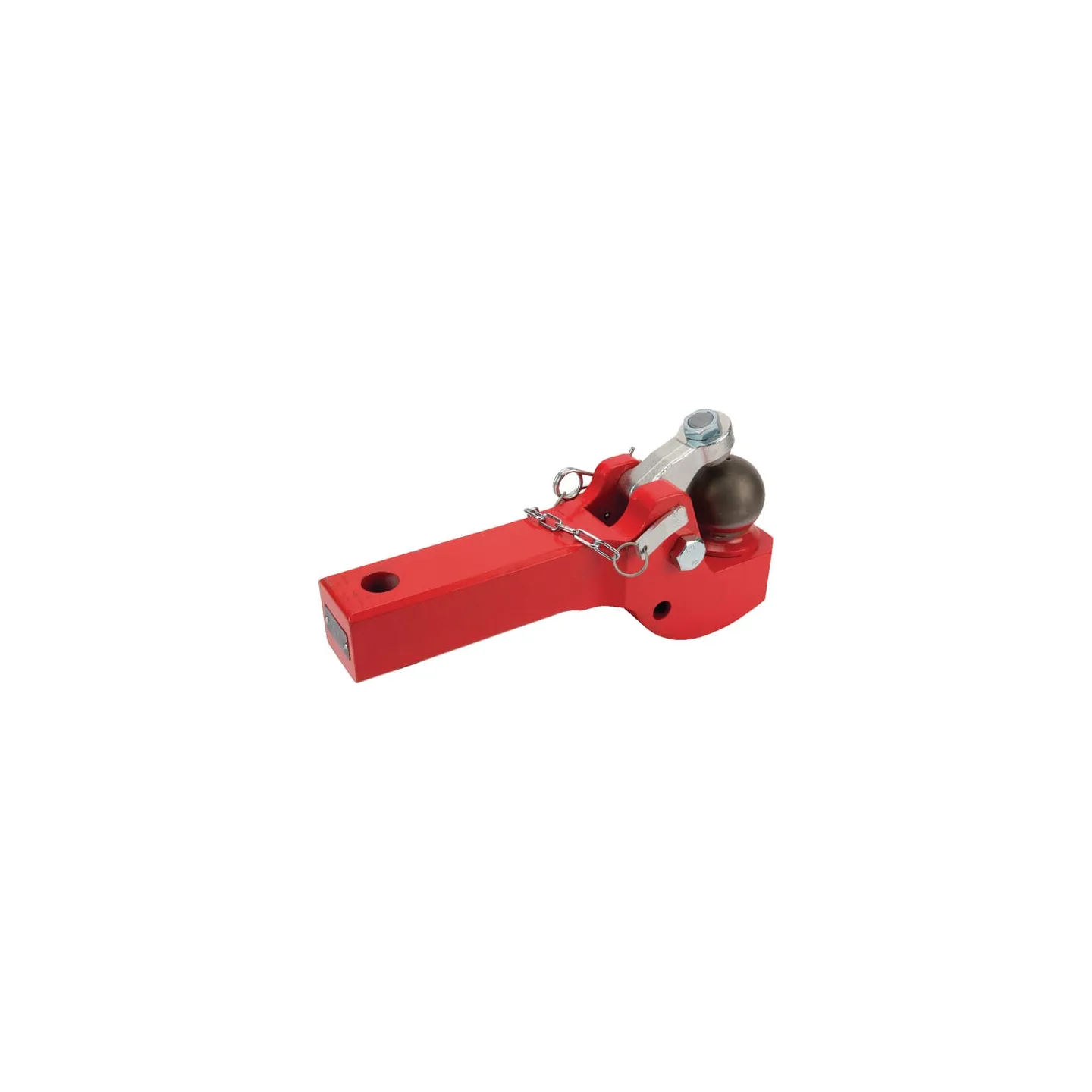

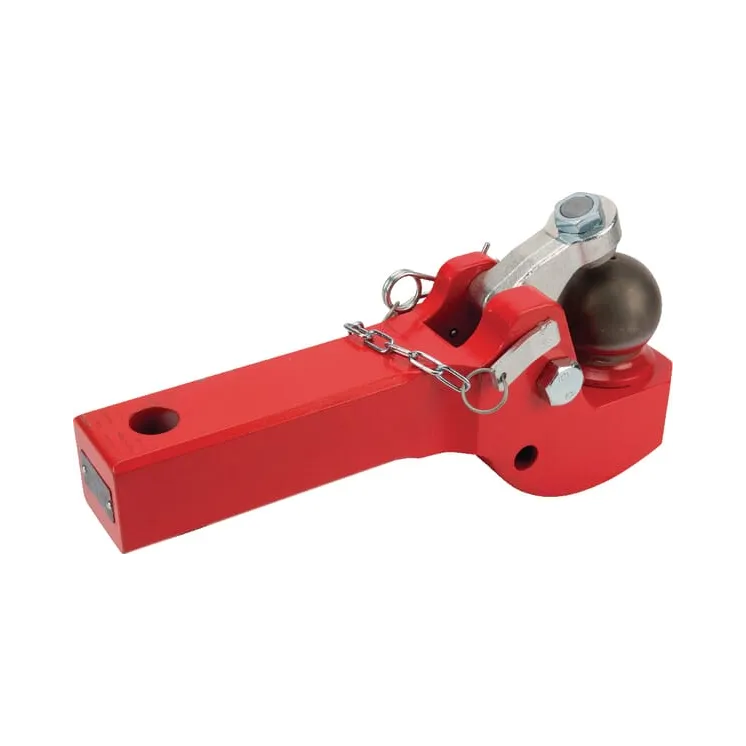

Hitch insert K80 00426121A20 00426120

Name: Hitch insert K80 00426121A20 00426120
Brand: Scharmüller
SKU: 00426121A20
Price: 1288.9 EUR
Availability: InStock

Payment options

€1,288.90

Tax included

4-5 Working days

Hitch insert K80 00426121A20 Scharmüller 00426120

IN WAREHOUSE

ID: 77742

Description

Part number	00426121A20
EAN
Unit	Each
Properties	K80 tow ball coupler system Tested to ISO 24347
Ball hook diameter	80 mm
Colour	Red
DCvalue	89.3 kN
Length	445 mm
Towing eye inside diameter (main hole)	30.5 mm
Max. vertical load	3000 kg
Mounting holes diameter	30 mm
Shaft width (diameter)	70 mm 70 mm
Suitable for machine/vehicle brand	Case IH
Suitable for machine/vehicle model	Case IH: Magnum MX [180, 200, 220, 240, 270], Magnum MX (II) [210, 230, 255, 285, 305] \| Fendt : Vario 700/800 [711, 712, 714, 716, 718, 815, 816, 817, 818, 820], Vario 900 [916, 920, 922, 924, 926, 927, 930, 933, 936] \| McCormick : TTX [190, 210, 230], XTX [185, 200, 215] Show more
Total length	445 mm
Working length	355 mm
